Yury G. Kudryashov (Jan 02 2024 at 17:07):
I'm starting a thread for discussion of the recently announced Lean Graph https://leanprover.zulipchat.com/#narrow/stream/113486-announce/topic/Introducing.20Lean.20Graph.200.2E1
Yury G. Kudryashov (Jan 02 2024 at 17:09):
First few questions:
- is it hard to automate generation of the json file using
lake
instead of opening some file in the editor? - is there an offline version?
- is there a version that generates
.dot
files?
Adam Topaz (Jan 02 2024 at 17:19):

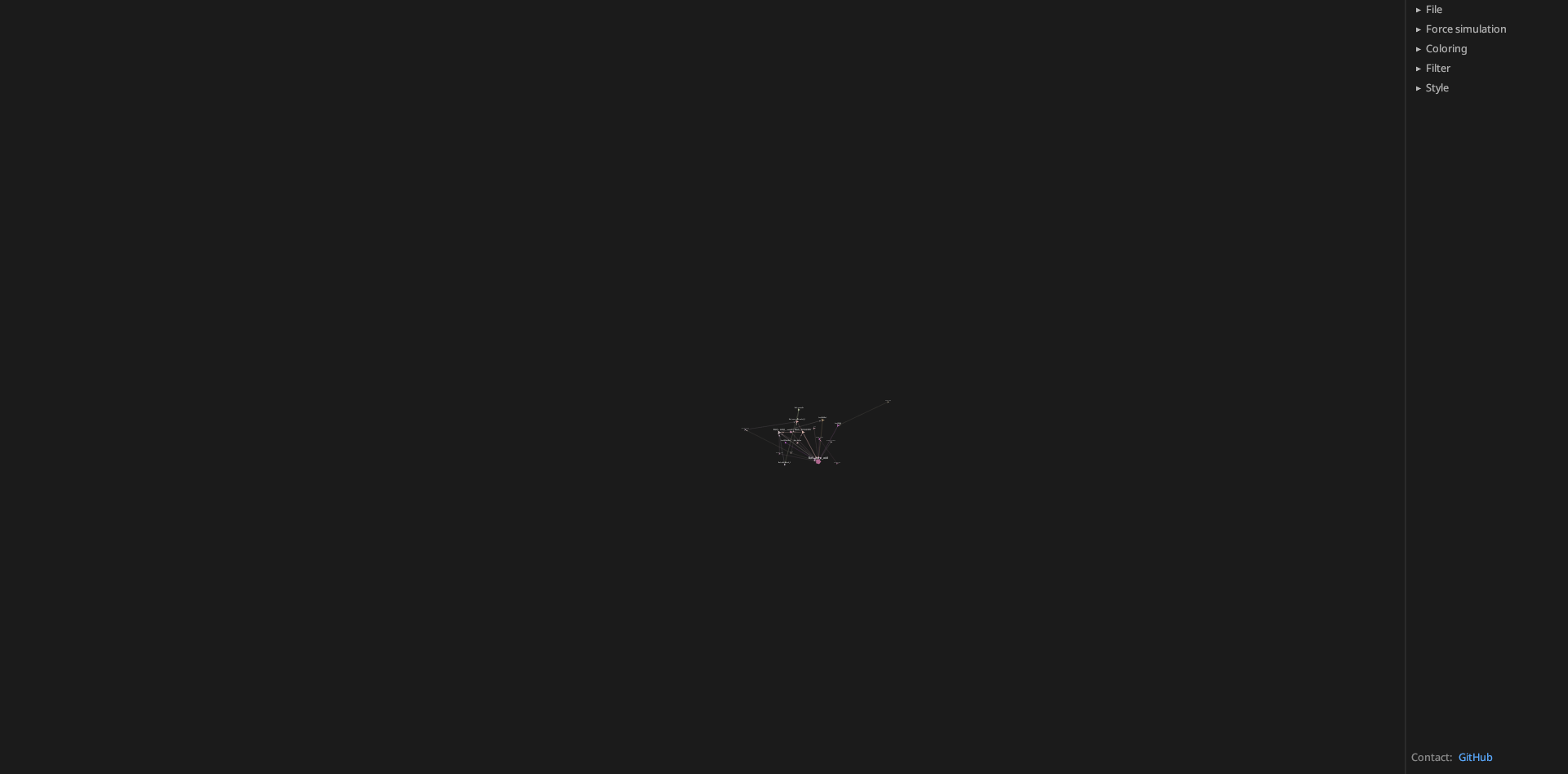

Am I missing something about the graph visualization itself? How does one zoom in? Right now I see this:
Yury G. Kudryashov (Jan 02 2024 at 17:20):
Yes, I opened and the graph started to zoom out without any reaction(UPD: I can mov it but can't zoom in) to keys/mouse scroll.
Patrik Cihal (Jan 02 2024 at 17:21):
Adam Topaz said:
Am I missing something about the graph visualization itself? How does one zoom in? Right now I see this:
"ctrl + scroll wheel" should work
Yury G. Kudryashov (Jan 02 2024 at 17:22):
I really prefer to look at static objects when I analyze something. Can I stop the animation?
Adam Topaz (Jan 02 2024 at 17:22):
That's quite unintuitive. Is there a good reason not to just use scrolling directly?
Chris Birkbeck (Jan 02 2024 at 17:22):
Is there a way to share the graph it creates (other than sharing the .json)?
Yury G. Kudryashov (Jan 02 2024 at 17:22):
Also, can you hide auxiliary lemmas like Nat.add._match_1
?
Patrik Cihal (Jan 02 2024 at 17:23):
Yury G. Kudryashov said:
First few questions:
- is it hard to automate generation of the json file using
lake
instead of opening some file in the editor?- is there an offline version?
- is there a version that generates
.dot
files?
There is an offline version, however for now it requires building the app from source (look on GitHub). Automating would be quite complex and would probably require running the Lean langauge server in WASM. Don't know what you mean by .dot files...
Adam Topaz (Jan 02 2024 at 17:24):
Sorry if I'm just being stupid: where is get_graph_meta.lean
?
Yury G. Kudryashov (Jan 02 2024 at 17:24):
https://graphviz.org/doc/info/lang.html
Patrik Cihal (Jan 02 2024 at 17:25):
Yury G. Kudryashov said:
I really prefer to look at static objects when I analyze something. Can I stop the animation?
Yes, setting in Force settings there should be stiffness slider. Setting it to 1, should stop the animation, however you should let it run for a while in order to group related theorems together.
Patrik Cihal (Jan 02 2024 at 17:26):
Chris Birkbeck said:
Is there a way to share the graph it creates (other than sharing the .json)?
Not yet. It's something I will probably add in the future if there is interest however. Shouldn't be hard.
Patrik Cihal (Jan 02 2024 at 17:27):
Adam Topaz said:
Sorry if I'm just being stupid: where is
get_graph_meta.lean
?
That is a reference to the old name of the file, now it's called DependencyExtractor.lean
, you can get it under the File section in the web app.
Yury G. Kudryashov (Jan 02 2024 at 17:28):
By "automating" I meant "create a command like the existing lake exe graph
that creates a json file", not "create a json file right there on the website".
Patrik Cihal (Jan 02 2024 at 17:32):
Yury G. Kudryashov said:
By "automating" I meant "create a command like the existing
lake exe graph
that creates a json file", not "create a json file right there on the website".
That would probably end up more complex. You would need to specify the imports to the theorem/namespace first and wouldn't even get much feedback whether are you pointing to an existing thing.
Patrik Cihal (Jan 02 2024 at 17:33):
Yury G. Kudryashov said:
By "automating" I meant "create a command like the existing
lake exe graph
that creates a json file", not "create a json file right there on the website".
Plus the fact that it needs to analyze the stuff in the meta environment, I'm not sure how all that would work.
Adam Topaz (Jan 02 2024 at 17:33):
It's still very possible to do, but you probably will have to parse and compile the file in question from the IO command itself. This is something that IMO would be worth doing, as it would follow the standard lean project workflow as opposed to copying and pasting some lean file into each project.
Adam Topaz (Jan 02 2024 at 17:34):
there are examples of obtaining a lean environment from a file in lean-training-data
, for example.
Adam Topaz (Jan 02 2024 at 17:35):
A hacked together bare-bones version can be found here: https://github.com/adamtopaz/lean_grader/blob/9838ec05c56b92b677c73322288f26634b7f4b62/Main.lean#L7
Yury G. Kudryashov (Jan 02 2024 at 17:36):
@Scott Morrison What do you think about :up: and its co-existence with your ImportGraph
?
Yury G. Kudryashov (Jan 02 2024 at 17:36):
Is it better to keep them separate or to somehow merge them (the parts that extract the graphs)?
Patrik Cihal (Jan 02 2024 at 17:39):
Adam Topaz said:
It's still very possible to do, but you probably will have to parse and compile the file in question from the IO command itself. This is something that IMO would be worth doing, as it would follow the standard lean project workflow as opposed to copying and pasting some lean file into each project.
Interesting, so the user would download a separate executable in this scenario?
Yury G. Kudryashov (Jan 02 2024 at 17:40):
The user would add lean-graph
as a dependency for their project and run something like lake exe graph --import Mathlib Nat.zero_add
Adam Topaz (Jan 02 2024 at 17:40):
No, the user would add the tool as a dependency to their lean project in the lakefile as usual
Patrik Cihal (Jan 02 2024 at 17:42):
Yury G. Kudryashov said:
The user would add
lean-graph
as a dependency for their project and run something likelake exe graph --import Mathlib Nat.zero_add
I see. That's definitely better way to do this.
Patrik Cihal (Jan 02 2024 at 17:53):
Adam Topaz said:
A hacked together bare-bones version can be found here: https://github.com/adamtopaz/lean_grader/blob/9838ec05c56b92b677c73322288f26634b7f4b62/Main.lean#L7
Does this utilize the cache of the project?
Adam Topaz (Jan 02 2024 at 17:53):
Yes the imports should come from the preexisting oleans
Adam Topaz (Jan 02 2024 at 17:54):
If you just want the env from some imports there is a function called withImports
or something like that in lean core that would help
Adam Topaz (Jan 02 2024 at 17:55):
If you want to run the commands in a certain file, thatβs more complicated and thatβs where code like in the link or that can be found in lean-training-data
would be used
Adam Topaz (Jan 02 2024 at 17:55):
Patrik Cihal (Jan 02 2024 at 17:57):
Adam Topaz said:
If you want to run the commands in a certain file, thatβs more complicated and thatβs where code like in the link or that can be found in
lean-training-data
would be used
What commands and what file?
Adam Topaz (Jan 02 2024 at 17:58):
Adam Topaz (Jan 02 2024 at 18:01):
Adam Topaz said:
That doesn't work, but this is what I was thinking of: docs#CoreM.withImportModules
Patrik Cihal (Jan 02 2024 at 18:04):
I could also compress the extractor file contents, onto one line, at which point anyone can just paste and copy it directly into the file without any needs of downloads. Maybe that's what I'll do instead. I think that may be even easier for the users
Patrik Cihal (Jan 02 2024 at 18:05):
But that extraction by running an executable could definitely be added later.
Patrik Cihal (Jan 03 2024 at 14:48):
Chris Birkbeck said:
Is there a way to share the graph it creates (other than sharing the .json)?
You can share visualizations now.
Chris Birkbeck (Jan 03 2024 at 14:59):
Oh great!
π πππππππ πππ πππππ (Jan 04 2024 at 00:12):
Hey, this is cool! I just wrote a much simpler (Graphviz) version of this for myself in order to organize a large Lean file. I was viewing a graph of all the definitions in that file. Can I do that here? And have you thought about what kind of graph analyses might help understand intra-module and across-module dependency structures, as well as refactor files so that definitions with fewer dependencies are moved up?
Patrik Cihal (Jan 04 2024 at 14:54):
Wojciech Nawrocki said:
Hey, this is cool! I just wrote a much simpler (Graphviz) version of this for myself in order to organize a large Lean file. I was viewing a graph of all the definitions in that file. Can I do that here? And have you thought about what kind of graph analyses might help understand intra-module and across-module dependency structures, as well as refactor files so that definitions with fewer dependencies are moved up?
You can either extract the graph that starts from a single constant, or that starts from all constants in a namespace. If you want to view only the graph made by definitions, that's easy. After you extract the graph and open the JSON containing the extracted graph, there is a Filter section in the web app, so just unselect everything except definitions.
I haven't thought about that. Right now, I visualize it as if all of them were in a single file.
Jon Eugster (Jan 09 2024 at 16:21):
nice visualisation!
Jon Eugster (Jan 09 2024 at 16:21):
Yury G. Kudryashov said:
What do you think about :up: and its co-existence with your
ImportGraph
?
First, there is a mathlib PR (#9169) to split lake exe graph
into it's own repo, so it can be used in other projects. The project is here: leanprover-community/import-graph.
Quickly glancing at the code, I think it could very well make sense to merge the lean code of the two projects. The Lean code in this project seems quite concise.
I also see no obstructions that lake exe graph
(with some args) could create this .json
file, which is used for the dynamic web graph, on demand.
@Patrik Cihal I'll dm you to ask about your plans and maybe I can also help combining the functionalities of the two.
Patrik Cihal (Jan 09 2024 at 19:17):
Sounds good!
Chris Birkbeck (Apr 07 2025 at 10:26):
The website seems to be down, is this no longer supported?
