Proving termination of recursion guarded in abstraction

Stream: general

[Easyoakland]

The following code works as expected. increasing terminates immediately on all calls without recursing at all, it simply constructs a new function. However, I don't know how to convince the termination checker of this.

I also don't know how to prove that LazyList is inhabited without .inhabited_proof

Help would be appreciated.

inductive LazyList α | head : (Unit → (α × LazyList α)) → LazyList α | inhabited_proof
instance [Inhabited α]: Inhabited (LazyList α) where
  default := .inhabited_proof

def LazyList.head' [Inhabited α]: LazyList α → (α × LazyList α)
| .inhabited_proof  => unreachable!
| head f => f ()

partial def increasing: LazyList Nat := s 0
  where s := fun n => LazyList.head fun () => (n, s (n+1))

-- example : (increasing |>.head.snd |>.head.fst) = 1 := rfl
-- #reduce increasing |>.head.snd |>.head.snd
#eval increasing
  |>.head'.snd -- 0
  |>.head'.snd -- 1
  |>.head'.snd -- 2
  |>.head'.snd -- 3
  |>.head'.snd -- 4
  |>.head'.snd -- 5
  |>.head'.snd -- 6
  |>.head'.snd -- 7
  |>.head'.fst -- 8

[Robin Arnez]

It's because the lazy list isn't inhabited without that constructor:

inductive LazyList α
  | head : (Unit → (α × LazyList α)) → LazyList α

mutual

theorem lazyList_not_inhabited' : (α × LazyList α) → False
  | (_, b) => lazyList_not_inhabited b

theorem lazyList_not_inhabited : LazyList α → False
  | .head f => lazyList_not_inhabited' (f ())

end

It expects you to be able to recurse by applying the function; but this is clearly non-terminating for LazyList, so contradiction

[Robin Arnez]

What you'd want is a coinductive; sadly these don't exist in Lean directly; but you can hack one together (which you can't prove things about but I don't think that's your goal):

structure LazyListImpl (α : Type u) where
  next : Unit → α × LazyListImpl α

private opaque LazyListRef (α : Type u) : NonemptyType.{u}

structure LazyList (α : Type u) where
  val : (LazyListRef α).type
  nonempty : Nonempty α

instance [Nonempty α] : Nonempty (LazyList α) :=
  match (LazyListRef α).property with
  | ⟨a⟩ => ⟨a, ‹_›⟩

@[inline]
private unsafe def LazyList.headImpl (f : Unit → α × LazyList α) : LazyList α :=
  (unsafeCast { next := unsafeCast f : LazyListImpl α } : LazyList α)

@[implemented_by LazyList.headImpl]
opaque LazyList.head (f : Unit → α × LazyList α) : LazyList α :=
  (f ()).2 -- just show that it's inhabited

@[inline]
private unsafe def LazyList.nextImpl (x : LazyList α) : α × LazyList α :=
  unsafeCast ((unsafeCast x : LazyListImpl α).next ())

@[implemented_by LazyList.nextImpl]
opaque LazyList.next (x : LazyList α) : α × LazyList α :=
  (Classical.choice x.nonempty, x) -- just show that it's inhabited

partial def increasing : LazyList Nat := s 0
  where s := fun n => LazyList.head fun () => (n, s (n+1))

-- example : (increasing |>.head.snd |>.head.fst) = 1 := rfl
-- #reduce increasing |>.head.snd |>.head.snd
#eval increasing
  |>.next.snd -- 0
  |>.next.snd -- 1
  |>.next.snd -- 2
  |>.next.snd -- 3
  |>.next.snd -- 4
  |>.next.snd -- 5
  |>.next.snd -- 6
  |>.next.snd -- 7
  |>.next.fst -- 8

[Easyoakland]

It's because the lazy list isn't inhabited without that constructor:

The proof using mutual structural recursion you provided is helpful for understanding. I am, however, confused about how the #eval can work without ever constructing the variant which proves the type is inhabited.

Are proofs in Lean only capable of showing things which are true for all reduction orders even though lean has a particular one? If that's true I can see the argument that a recursion might infinitely reduce the inside of the returned function without ever actually returning.

but you can hack one together

I'm not sure I understand the advantage of the approach you describe with the unsafe and casting. You still have a LazyList with an extra variant.

[Robin Arnez]

Easyoakland schrieb:

confused about how the #eval can work without ever constructing the variant which proves the type is inhabited.

The restriction that every recursion has to end is only a restriction of the type system. The compiler (and thus #eval) doesn't care about whether your function terminates in the same way that pretty much every programming language allows you to have infinite loops in your program. It would only be problematic if the type system would know the definition of increasing because then it would cause a contradiction (infinite stack of heads). However, partial means that the type system doesn't know any more about the function than its type; for all it knows, the function could just immediately return inhabited_proof.

Easyoakland schrieb:

Are proofs in Lean only capable of showing things which are true for all reduction orders even though lean has a particular one?

Functions in the type system should not be viewed as functions in the programming sense. Instead, you can imagine them as a big table that has an entry for every value. In particular Unit → α becomes meaningless then because that'd just correspond to a table with a single entry. And then we just have a rule that inductive types need to have a finite depth, so you can't have infinite LazyLists "all the way down".

Easyoakland schrieb:

I'm not sure I understand the advantage of the approach you describe with the unsafe and casting.

The approach here is similar to what partial does -- hide the definition from the type system. We are trying to mimic the definition

inductive LazyList α
  | head : (Unit → (α × LazyList α)) → LazyList α

def LazyList.head' : LazyList α → (α × LazyList α)
  | head f => f ()

unsafe def increasing : LazyList Nat := s 0
  where s := fun n => LazyList.head fun () => (n, s (n+1))

here but without the unsafe on increasing. So what we do is first establish the internal type LazyListImpl which is what the actual representation for LazyList should be. Then we use opaque to define a new type, LazyListRef, which is just some arbitrary nonempty type to please the type system. In the same sense, the definition of LazyList is only there to make the operations of LazyList consistent in the type system. The definitions LazyList.headImpl and LazyList.nextImpl are the "real" definitions of these functions, those that we want to use for #eval. We said LazyListImpl is supposed to be the runtime representation of LazyList, so we just use an unsafe cast to cast between them. Then the real functions LazyList.head and LazyList.next are again just there to please the type system, we just use LazyList.headImpl and LazyList.nextImpl under the hood (through @[implemented_by]). This makes it possible to use LazyList without unsafe but with the same computational behavior as the unsafe definition.

[Easyoakland]

This makes it possible to use LazyList without unsafe but with the same computational behavior as the unsafe definition.

Right. But the increasing function is still partial in your translation. What are you gaining by hiding the real definition of the type that you can't prove things about? The runtime behavior already matches what it should, so there's not need to complicate it with unsafe.

[Easyoakland]

which you can't prove things about but I don't think that's your goal

Actually my goal is to prove properties of the transition function without exposing the state in the type signature. That way these LazyLists can be composed without having to thread the internal state.

I'm now trying to add a gas parameter and prove things about the function under the condition that the gas is sufficiently large. Do you have a better idea?

class Gas where
  val : Nat
instance: Gas where
  val := 2^64

inductive LazyList α | head : (Unit → (α × LazyList α)) → LazyList α | eol
instance [Inhabited α]: Inhabited (LazyList α) where
  default := .eol

def LazyList.head' [Inhabited α]: LazyList α → (α × LazyList α)
| eol => panic! "ran out of gas for LazyList.head'"
| head f => f ()

def increasing [g: Gas]: LazyList Nat := s g.val 0
  where s := fun gas => fun n => match gas with
    | 0 => .eol
    | gas+1 => LazyList.head fun () => (n, s gas (n+1))

def LazyList.get [Inhabited α] (self: LazyList α) (idx:Nat): α := match idx with
  | 0 => self.head'.fst
  | n+1 => let self := self.head'.snd; self.get n

instance [Inhabited α]: GetElem (LazyList α) Nat α (fun _ _ => True) where
  getElem self idx _ := LazyList.get self idx

theorem increasing_incr (n g i v : Nat) (g_gt_n: g > n) (h: increasing (g:=⟨g⟩)[i] = v): increasing (g:=⟨g⟩)[i+1] = v + 1 := by
  unfold increasing
  unfold increasing.s
  admit
theorem increasing_eq_idx (n g : Nat) (h: g > n): increasing (g:=⟨g⟩)[n] = n := by
  admit

[Robin Arnez]

Easyoakland schrieb:

What are you gaining by hiding the real definition of the type that you can't prove things about?

The only difference is that you don't need to consider the case for inhabited_proof. This might be a (small but still) performance improvement.

[Robin Arnez]

Easyoakland schrieb:

Actually my goal is to prove properties of the transition function without exposing the state in the type signature.

Okay, then my question is: Do you just care about proofs or also computation? If you don't care about efficient runtime, just use Nat → α.

[Easyoakland]

Runtime matters, but it doesn't need to be terribly fast. Just needs to run a few 1,000 or 100,000 iterations over several minutes (though the transition functions will be more complicated) for the "simulation".

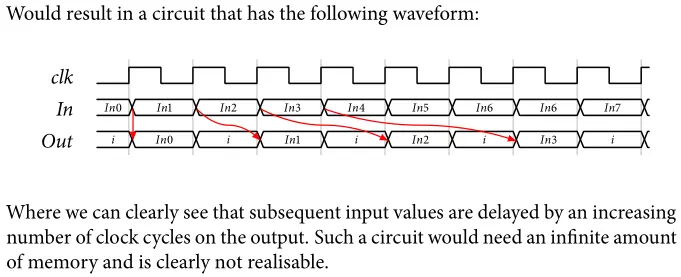

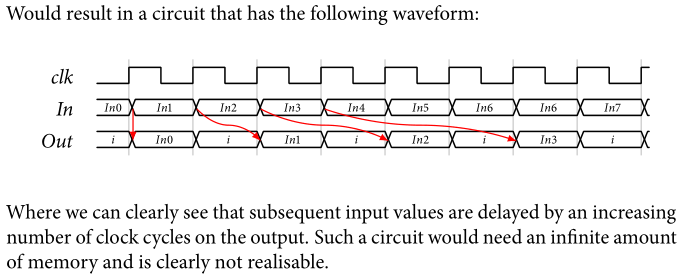

The goal with this is to see if it's possible to emulate Clash's Signal Type to hide the coinductive state for easier composition while enabling proofs about its behavior. The hardware synthesizer won't really run the type, but special-case it to extract the transition function.

just use Nat → α.

I don't follow.

[Robin Arnez]

The Nat → α approach would be essentially defining a LazyList by its get function

[Robin Arnez]

That makes the runtime for iteration quadratic though

[Easyoakland]

The Nat → α approach would be essentially defining a LazyList by its get function

You mean define the function recursively? Like:

def doubling : Nat → Nat
  | 0 => 0
  | n+1 => 2 * doubling n

That makes the runtime for iteration quadratic though

I know that Thunks exist. Are they not usable for proofs?

[Robin Arnez]

Yeah I mean if you try to do something like

def sumOfFirstN (x : LazyList Nat) (n : Nat) (start : Nat) : Nat :=
  match n with
  | 0 => 0
  | k + 1 => sumOfFirstN start + sumOfFirstN x k (start + 1)

and you define your LazyList using a recursive Nat → α function, you'd get quadratic runtime

[Aaron Liu]

Easyoakland said:

I know that Thunks exist. Are they not usable for proofs?

They are usable in proofs, but unfortunately it doesn't make the runtime faster, since you are recomputing the thunk every time you call the function with a different input.

[Easyoakland]

runtime for iteration quadratic

@Robin Arnez That probably will be too much of a performance overhead.

you are recomputing the thunk every time you call the function with a different input.

@Aaron Liu How are Thunks meant to be used and how does this differ?

[Aaron Liu]

Thunks work best when you use the same one over and over

[Robin Arnez]

Thunks are not cache, but if you have two references to the same thunk (as in same memory address) then you only need to evaluate once

[Robin Arnez]

But if you define something by repetition you necessarily construct something every time

[Aaron Liu]

Since no information is being carried between function calls you do need to recompute it

[Easyoakland]

Sounds like the gas method is best then (assuming I'm not missing something where it doesn't work)?

[Aaron Liu]

You could pass around a cache

[Easyoakland]

So run everything in a monad with state of the cache and indexing function names + arguments to values?

[Aaron Liu]

Yeah that's basically what I'm suggesting

[Aaron Liu]

It worked for me for relatively small computations

[Easyoakland]

It looks like I've either misunderstood the Nat → α approach or it also doesn't work with Lean's termination checker.

abbrev Signal α := Nat → α
namespace Signal
def register (reset: α) (s: Signal α): Signal α := fun (i:Nat) =>
  match i with
  | 0 => reset
  | i+1 => s i
def pure : α → Signal α := fun x _ => x
instance [HAdd α β γ]: HAdd (Signal α) (Signal β) (Signal γ) where
  hAdd a b := fun i => a i + b i
instance [HMul α β γ]: HMul (Signal α) (Signal β) (Signal γ) where
  hMul a b := fun i => a i * b i
#check Signal Nat
instance : OfNat (Signal Nat) n where
  ofNat := Signal.pure n

partial def multiply_add (x y : Signal Nat): Signal Nat := acc
  where
    acc: Signal Nat := register 0 (acc + x * y)

def _root_.Std.Range.toList (r: Std.Range): List Nat := Id.run do
  let mut acc := []
  for x in r do
    acc := List.cons x acc
  acc.reverse

#eval [0:3].toList |>.map (multiply_add 1 2) -- [0, 2, 4]

[Aaron Liu]

The way you've written it it's not terminating, even though it terminates on all inputs. I think you need to use some sort of corecursion.

[Easyoakland]

The way you've written it it's not terminating, even though it terminates on all inputs.

What? I thought the definition of terminating is termination on all inputs.

[Aaron Liu]

Ok if you unfold some stuff then you can prove it terminates, but you can't prove it terminating with the built-in termination facilities.

[Easyoakland]

Ah.

def multiply_add (x y : Signal2 Nat): Signal2 Nat := acc
  where
    acc: Signal2 Nat := fun | 0 => 0 | i+1 => ((acc i) + (x * y) i)

Well if I have to unfold register then that definitely won't work as an approach. The whole idea with the Signal and register functions is to make the Signal definition private and only allow construction with register because only accessing the previous value (like register does) is actually hardware synthesizable.

Is it possible to write a macro which desugars the unworking version into the second for the termination checker without making it easy for the user to use the desugared version?

[Robin Arnez]

Here's another definition similar to the one I defined before, except with a model implementation. There are some hacks though because the compiler gets a bit in the way.

/-!
Runtime implementation
-/

inductive LazyListImpl (α : Type u) where
  | head : α → (Unit → LazyListImpl α) → LazyListImpl α

unsafe def LazyListImpl.fromGetter (f : Nat → α) (i : Nat) : LazyListImpl α :=
  .head (f i) fun _ => fromGetter f (i + 1)

def LazyListImpl.get : LazyListImpl α → Nat → α
  | .head x _, 0 => x
  | .head _ f, k + 1 => (f ()).get k

@[irreducible]
private def SeqType (α : Type u) := Nat → α

structure LazyList (α : Type u) where
  private mkInternal ::
  private getInternal : SeqType α

/-!
Porting runtime implementation to `LazyList` using `unsafeCast`
-/

@[inline, always_inline]
unsafe def LazyList.mkImpl (f : Nat → α) : LazyList α :=
  unsafeCast (LazyListImpl.fromGetter f 0)

@[inline, always_inline]
unsafe def LazyList.getImpl (l : LazyList α) : Nat → α :=
  LazyListImpl.get (unsafeCast l)

@[inline, always_inline]
unsafe def LazyList.lazyConsImpl (head : α) (tail : Unit → LazyList α) : LazyList α :=
  unsafeCast (LazyListImpl.head head (unsafeCast tail) : LazyListImpl α)

@[inline, always_inline]
unsafe def LazyList.headImpl (l : LazyList α) : α :=
  (unsafeCast l : LazyListImpl α).1

@[inline, always_inline]
unsafe def LazyList.tailImpl (l : LazyList α) : LazyList α :=
  unsafeCast ((unsafeCast l : LazyListImpl α).2 ())

/-!
Model implementations
-/

@[implemented_by LazyList.mkImpl, irreducible]
def LazyList.mk (f : Nat → α) : LazyList α := by
  with_unfolding_all exact LazyList.mkInternal f

@[implemented_by LazyList.getImpl, irreducible]
def LazyList.get (l : LazyList α) : Nat → α := by
  with_unfolding_all exact LazyList.getInternal l

@[implemented_by LazyList.lazyConsImpl]
def LazyList.lazyCons (head : α) (tail : Unit → LazyList α) : LazyList α :=
  .mk fun
  | 0 => head
  | k + 1 => (tail ()).get k

@[implemented_by LazyList.headImpl]
def LazyList.head (x : LazyList α) : α :=
  x.get 0

@[implemented_by LazyList.tailImpl]
def LazyList.tail (x : LazyList α) : LazyList α :=
  .mk fun a => x.get (a + 1)

@[simp]
theorem LazyList.get_mk : get (mk f) = f := by
  with_unfolding_all rfl

@[simp]
theorem LazyList.tail_mk : tail (mk f) = mk (fun a => f (a + 1)) := by
  with_unfolding_all rfl

theorem LazyList.forall_iff_mk (p : LazyList α → Prop) : (∀ x, p x) ↔ (∀ x, p (.mk x)) := by
  constructor
  · intro h x
    apply h
  · with_unfolding_all
    intro h ⟨x⟩
    apply h

open Lean.Order in
noncomputable instance [Nonempty α] : CCPO (LazyList α) := letI : CCPO (Nat → α) := (instCCPOPi : CCPO (Nat → FlatOrder Classical.ofNonempty)); {
  rel x y := x.get ⊑ y.get
  rel_refl := this.rel_refl
  rel_trans := this.rel_trans
  rel_antisymm {x y} h h' := by
    with_unfolding_all
    cases x; cases y
    cases this.rel_antisymm h h'
    rfl
  csup f := .mk (CCPO.csup (fun a => f (.mk a)))
  csup_spec {x c} hc := by
    with_unfolding_all
    have h := this.csup_spec (c := fun a => c (LazyList.mk a)) (x := x.get) ?_
    · simpa only [LazyList.get_mk, LazyList.forall_iff_mk] using h
    · simpa only [chain, LazyList.forall_iff_mk] using hc
}

open Lean.Order in
@[partial_fixpoint_monotone]
theorem LazyList.monotone_lazyCons [Nonempty α] [PartialOrder γ]
    (x : α) {f : γ → Unit → LazyList α} (hf : monotone f) :
    monotone fun a => LazyList.lazyCons x (f a) := by
  intro a b h
  simp only [PartialOrder.rel]
  intro i
  simp only [lazyCons, get_mk]
  split
  · exact .refl
  · apply hf
    exact h

def increasing : LazyList Nat := s 0
  where s := fun n => LazyList.lazyCons n fun () => s (n+1)
partial_fixpoint

#eval increasing.tail.tail.head -- 2

[Robin Arnez]

This one uses partial_fixpoint for termination checking

[Easyoakland]

I'm not familiar with partial_fixpoint. I see where it is described in the reference, but I still am not quite sure what it means.

Is there a more detailed explanation elsewhere?

[Aaron Liu]

Easyoakland said:

Well if I have to unfold register then that definitely won't work as an approach. The whole idea with the Signal and register functions is to make the Signal definition private and only allow construction with register because only accessing the previous value (like register does) is actually hardware synthesizable.

That's why you need the corecursion!

[Robin Arnez]

Easyoakland schrieb:

I'm not familiar with partial_fixpoint. I see where it is described in the reference, but I still am not quite sure what it means.

Is there a more detailed explanation elsewhere?

partial_fixpoint is a recent addition that allows you to write possibly non-terminating functions that are (usually) tail-recursive. However, with the right theorems, you can extend it to other kinds of "almost-tail-recursive" functions: In this case it allows you to insert any amount of lazyCons and treat it as "almost-tail-recursion".

[Easyoakland]

Aaron Liu said:

That's why you need the corecursion!

I'm not sure if you mean that Lean doesn't support this kind of construct or if you mean that I need to reformulate it somehow. In the latter case I'm don't know what you mean.

[Aaron Liu]

Having corecursion will allow you to write functions like multiply_add without unfolding register

[Aaron Liu]

and you can prove they terminate

[Easyoakland]

What is "having corecursion".

[Aaron Liu]

It means if you define a corecursor, all these things will happen

[Robin Arnez]

Corecursion is basically tail-recursion with a constructor application

[Aaron Liu]

though it might loop around to being computationally inefficient again

[Robin Arnez]

I feel like the approach with partial_fixpoint works really nicely here instead of defining a corecursor though

[Aaron Liu]

That probably works too, but I haven't tried it yet so I wouldn't know

[Easyoakland]

Aaron Liu said:

It means if you define a corecursor, all these things will happen

I have very limited of understanding of corecursion. My fuzzy understanding is that it's what recursion looks like on the other side. I don't know what a corecursor is.

[Easyoakland]

Robin Arnez said:

I feel like the approach with partial_fixpoint works really nicely here instead of defining a corecursor though

It's going to take me a bit to understand it.

[Easyoakland]

Am I correct that annotating a function f with partial_fixpoint works by making the function partial and adding proof of equality between the opaque f and the original function definition which recursively contains f?

[Aaron Liu]

Yes, for certain definitions of "partial". Also, it doesn't make f an opaque, it only adds the @[irreducible] tag.

[Easyoakland]

By makes the function partial I meant partial def.

What's the difference between opaque and @[irreducible]?

I see in the reference

Opaque constants are defined constants that are not subject to δ-reduction in the kernel.

and

Irreducible definitions are not unfolded at all during elaboration. Definitions can be made irreducible by applying the irreducible attribute.

Which seem to be the same, since

δ (delta) reduction: Replacing occurrences of defined constants by the definition's value

[Aaron Liu]

It does not make it partial def

[Aaron Liu]

Irreducible definitions are not unfolded during elaboration (unless you force it), but they are unfolded during kernel checking

[Aaron Liu]

However opaque constants are not unfolded at all

[Aaron Liu]

The difference is that irreducible definition are "please don't unfold me" but you can still override it while opaque constants just can't be unfolded at all

[Easyoakland]

Oh, I see. You prompted me to use #print. Now I see what's going on better. Thank you.

/-
@[irreducible] def Test.increasing.s : Nat → LazyList Nat :=
Lean.Order.fix (fun f n => LazyList.lazyCons n fun x => f (n + 1)) increasing.s._proof_6
-/

#print increasing.s

[Aaron Liu]

partial def f (n : Nat) : Nat := f (n + 1)

-- opaque f : Nat → Nat
#print f

[Easyoakland]

@Robin Arnez

I'm trying to get this to work:

def add_lists (x y : LazyList Nat): LazyList Nat := acc
  where
    acc: LazyList Nat := register 0 (fun () => acc + g)
  partial_fixpoint

Defining addition on LazyLists to be elementwise:

instance [HAdd α β γ]: HAdd (LazyList α) (LazyList β) (LazyList γ) where
  hAdd a b := .mk fun i => a.get i + b.get i

Showing register was monotone was the same as lazyCons:

def register (reset: α) (s: Unit → LazyList α): LazyList α := Test.LazyList.lazyCons reset s

open Lean.Order in
@[partial_fixpoint_monotone]
theorem LazyList.monotone_register [Nonempty α] [PartialOrder γ]
    (x : α) {f : γ → Unit → LazyList α} (hf : monotone f) :
    monotone fun a => register x (f a) := by
  intro a b h i
  simp only [register, lazyCons, get_mk]
  split
  · exact .refl
  · apply hf
    exact h

But showing that the addition is monotone has proved challenging. How exactly should I go about using partial_fixpoint on add_lists?

What I've tried so far

From what I can tell, using partial_fixpoint requires being able to show that the function is monotonic with respect to a partialOrder made by CCPO.toPartialOrder. It can't be any particular partial order, otherwise you could use .rel x y := x = y for everything. (= isn't a CCPO because there's no minimum as required by this provable theorem: CCPO.exists_minimum [inst: CCPO α] : ∃ m, ∀ x, inst.toPartialOrder.rel m x.)

I have a theorem for monotone hAdd on LazyLists.

open Lean.Order in
@[partial_fixpoint_monotone]
theorem LazyList.monotone_hadd
  [Nonempty α] [Nonempty β] [Nonempty γ] [PartialOrder δ] [inst: HAdd α β γ]
  (h_add_le_add: ∀ (a a' : α) (b b' : β), ((a:α) ⊑ (a':α) → (b:β) ⊑ (b':β) → a + b ⊑ a' + b'))
  {f : δ → LazyList α} {g : δ → LazyList β} (hf: monotone f) (hg: monotone g) :
  monotone fun x => (@instHAddLazyList _ _ _ inst |>.hAdd) (f x) (g x) := by
  intro a b h i
  simp only [(.+.), get_mk]
  apply h_add_le_add
  . apply hf
    exact h
  . apply hg
    exact h

but this is only with the FlatOrder (Classical.ofNonempty) ordering of α β γ and corresponding LazyList.

I'd want to show that Nat.add is monotonic to be able to use addition on LazyLists with partial_fixpoint, but Nat.add is doesn't satisfy h_add_le_add with FlatOrder 0 (by h_add_le_add (0⊑2) (1⊑1) = 0 + 1 ⊑ 2 + 1 implies 1 ⊑ 3 implies False).

Nat.le does satisfy h_add_le_add, but I can't get the proof of LazyList.monotone_hadd to work with an arbitrary partialOrder for α β γ.

I also have the above theorem with a more generic CCPO LazyList instance (syntactically identical to using FlatOrder (Classical.ofNonempty)) but it requires the type argument of the LazyList to have a CCPO instance. Nat.le can't have this instance because there's no valid supremum csup for the chain of all natural numbers fun _ => True

open Lean.Order in
noncomputable instance [inst: CCPO α] : CCPO (LazyList α) := letI : CCPO (Nat → α) := instCCPOPi; {
  rel x y := x.get ⊑ y.get
  rel_refl := this.rel_refl
  rel_trans := this.rel_trans
  rel_antisymm {x y} h h' := by
    cases x; cases y
    cases this.rel_antisymm h h'
    rfl
  csup f := .mk (CCPO.csup (fun a => f (.mk a)))
  csup_spec {x c} hc := by
    have h := this.csup_spec (c := fun a => c (LazyList.mk a)) (x := x.get) ?_
    · simpa only [LazyList.get_mk, LazyList.forall_iff_mk] using h
    · simpa only [chain, LazyList.forall_iff_mk] using hc
}
open Lean.Order in
@[partial_fixpoint_monotone]
theorem LazyList.monotone_hadd'
  [CCPO α] [CCPO β] [CCPO γ] [PartialOrder δ] [inst: HAdd α β γ]
  (h_add_le_add: ∀ (a a' : α) (b b' : β), ((a:α) ⊑ (a':α) → (b:β) ⊑ (b':β) → a + b ⊑ a' + b'))
  {f : δ → LazyList α} {g : δ → LazyList β} (hf: monotone f) (hg: monotone g) :
  monotone fun x => (@instHAddLazyList _ _ _ inst |>.hAdd) (f x) (g x) := by
  intro a b h i
  simp only [(.+.), get_mk]
  apply h_add_le_add
  . apply hf
    exact h
  . apply hg
    exact h

[Aaron Liu]

Try having List (Option Nat), then you can make addition monotone

[Robin Arnez]

Alternatively, use an accumulator:

def add_lists (x y : LazyList Nat) : LazyList Nat := acc (.mk fun _ => 0)
  where
    acc (added : LazyList Nat) : LazyList Nat :=
      register added.head (fun () => acc (added.tail + g))
  partial_fixpoint

[Aaron Liu]

Sorry, what's your definition of LazyList?

[Robin Arnez]

Robin Arnez schrieb:

Here's another definition similar to the one I defined before, except with a model implementation. There are some hacks though because the compiler gets a bit in the way.
...

I assume this one?

[Easyoakland]

Aaron Liu said:

Try having List (Option Nat), then you can make addition monotone

Not sure what this means.

[Easyoakland]

Robin Arnez said:

Alternatively, use an accumulator:

This typechecks. And continues for the multiply_accumulate example

def LazyList.pure (a:α): LazyList α := .mk fun _ => a
def multiply_accumulate (x y : LazyList Nat): LazyList Nat := acc (LazyList.pure 0)
  where
    acc (accumulated : LazyList Nat): LazyList Nat :=
      register accumulated.head (fun () => acc (accumulated.tail + x * y))
  partial_fixpoint

but this requires the user having access to the tail and head functions, which means they could apply the tail constructor multiple times and make an hardware unsythensizable design, which I'm trying to avoid. The goal is that in user code LazyList can only be constructed from a constant (fun _ => c), a use of the register function (register reset next), or as an applicative functor which can only map the LazyList elementwise.

Am I to assume that you suggest this alternative because + can't be shown monotone in a CCPO?

[Easyoakland]

Aaron Liu said:

Sorry, what's your definition of LazyList?

The model that @Robin Arnez described earlier.

[Robin Arnez]

Just asking, how are these lists supposed to be used? In particular how and when are they destructured?

[Easyoakland]

Robin Arnez said:

Just asking, how are these lists supposed to be used? In particular how and when are they destructured?

The way this works is that the topmost function takes as input LazyList input and returns LazyList output. The built up list can only be inspected elementwise through the <*>, <$>, and some elementwise arithmetic (+, *, etc...) only.

[Robin Arnez]

Doesn't that mean that the contents of LazyList are never inspected though?

[Easyoakland]

Robin Arnez said:

Doesn't that mean that the contents of LazyList are never inspected though?

In what sense? The goal is to build up an increasingly complicated transition function which can be synthesized to hardware. The values of the list can be observed to make a new list.

The multiply_accumulate example is one instance of how they are intended to be used.

def multiply_accumulate (x y : LazyList Nat): LazyList Nat := acc
  where
    acc: LazyList Nat := register 0 (fun () => acc + x * y))
  partial_fixpoint -- though this doesn't typecheck

This could be synthesized in hardware as a multiplication and addition of two input wire buses representing x and y to a state register outputting a wire bus from that register. Another hardware component can use this bus to generate its own output.

[Easyoakland]

(deleted)

[Easyoakland]

For proving properties about these lists I would imagine a namespace that would make these constructors in scope to enable software only code and proof, similar to how open Classical enables non-constructive logic to be used in proof.

[Robin Arnez]

Hmm there is some complication involved here because acc := (·+1) <$> acc is clearly unsound but wrapping the right-hand side in register makes it sound again.

[Robin Arnez]

So there needs to be at least some distinction between these two cases

[Aaron Liu]

Write a corecursor, like docs#Stream'.corec

[Robin Arnez]

That won't suffice though because we explicitly want to have access to the value we are defining within the right-hand side and apply transformations

[Robin Arnez]

Corecursors only work for tail-recursive right-hand sides

[Aaron Liu]

You also need a stream destructor

[Robin Arnez]

How would that help with the multiply_accumulate example?

[Easyoakland]

Robin Arnez said:

Hmm there is some complication involved here because acc := (·+1) <$> acc is clearly unsound but wrapping the right-hand side in register makes it sound again.

I just tried this in Clash

invalid :: Signal System (Unsigned 16)
invalid = acc
  where
    acc = (+1) <$> acc

and surprisingly it just synthesized the invalid circuit. The hardware simulator (verilator) does complain that the logic is circular.

/* AUTOMATICALLY GENERATED SYSTEMVERILOG-2005 SOURCE CODE.
** GENERATED BY CLASH 1.8.2. DO NOT MODIFY.
*/
`default_nettype none
`timescale 100fs/100fs
module invalid
    ( // No inputs

      // Outputs
      output logic [15:0] result
    );
  logic [15:0] c$result_rec;

  assign c$result_rec = c$result_rec + 16'd1;

  assign result = c$result_rec;


endmodule

[Easyoakland]

Running the Haskell code never terminates. So, at least for my initial goal of emulating Clash, it doesn't matter if this case typechecks or not. Though, I would guess it has to be rejected by Lean since it is logically invalid.

[Easyoakland]

Aaron Liu said:

Write a corecursor, like docs#Stream'.corec

Ah. I didn't know of this. I'll take a look.

[Easyoakland]

Aaron Liu said:

Write a corecursor, like docs#Stream'.corec

This works fine for the very simple case

def increasing' : Stream' Nat := Stream'.corec (id) (fun st => st+1) 0

but it's not clear to me how this would work when incorporating other state:

instance [HAdd α β γ]: HAdd (Stream' α) (Stream' β) (Stream' γ) where
  hAdd a b := fun i => a.get i + b.get i
instance [HMul α β γ]: HMul (Stream' α) (Stream' β) (Stream' γ) where
  hMul a b := fun i => a.get i * b.get i
instance : Functor (Stream') where
  map := Stream'.map
instance : Applicative (Stream') where
  pure := Stream'.pure
  seq f x := f.apply (x ())

def multiply_accumulate' (x y : Stream' Nat): Stream' Nat :=
  -- let f : Stream' (Nat -> Nat -> Nat) := Stream'.corec (id) (fun st => fun x y => st + x * y)
  let f := fun (x y st : Nat) => st + x * y
  let fapp := f <$> x <*> y
  ?_

Aaron Liu said:

You also need a stream destructor

I don't know what this is and see no definition of it in Mathlib.Data.Stream.

[Aaron Liu]

A destructor means something like docs#Stream'.head and docs#Stream'.tail

[Easyoakland]

Aaron Liu said:

A destructor means something like docs#Stream'.head and docs#Stream'.tail

Ah. As I said earlier, it can't be the case that the user needs to use these functions directly, because then they could call them in hardware unsythesizable ways (calling .tail too many times).

The Digital Circuits in CλaSH: Functional Speciications and Type-Directed Synthesis paper provides an even more subtle way to misuse these:

delayInc
:: a → Signal a → Signal a
2 delayInc i (s :− ss ) = i :− s :− delayInc i ss


[Easyoakland]

@Aaron Liu

The goal here is to see if it is possible in Lean make a type like Stream where the only way to interact with it with certain "blessed" functions. These include cons (also called register), pure, <*>, <$>, but do not include arbitrary manipulation like .tail.

It certainly seems possible if I allow manipulation to be partial (as evidenced by the original post), but the goal is to make theorems about this type.

[Aaron Liu]

How do you want to handle termination?

[Aaron Liu]

I'm assuming you want to allow recursive definitions

[Easyoakland]

In what sense? I've written how I'd want this to work above, am I explaining something poorly?

[Aaron Liu]

For now I'll recommend the corecursor (although this is purely from the theorem proving side, I don't know how they perform in execution)

[Easyoakland]

The software simulation side of this terminates by only running the eventual function with something akin to Stream.take, which is only accessible in the special namespace I described here.

Easyoakland said:

For proving properties about these lists I would imagine a namespace that would make these constructors in scope to enable software only code and proof, similar to how open Classical enables non-constructive logic to be used in proof.

[Easyoakland]

Aaron Liu said:

For now I'll recommend the corecursor (although this is purely from the theorem proving side, I don't know how they perform in execution)

Ok, how would you write the multiply accumulate function using only Stream.corec but not .head, .tail or Stream.get?

def multiply_accumulate' (x y : Stream' Nat): Stream' Nat :=
  -- let f : Stream' (Nat -> Nat -> Nat) := Stream'.corec (id) (fun st => fun x y => st + x * y)
  let f := fun (x y st : Nat) => st + x * y
  let fapp := f <$> x <*> y
  ?_

[Aaron Liu]

What do you want this function to do?

[Aaron Liu]

oh I see

[Aaron Liu]

You also probably want a stream fold function

[Easyoakland]

Aaron Liu said:

What do you want this function to do?

this without the partial

def register (reset: α) (s: Stream' α): Stream' α := reset :: s
partial def multiply_accumulate'''' (x y : Stream' Nat): Stream' Nat := acc
  where
    acc: Stream' Nat := register 0 (acc + x * y)

[Easyoakland]

Aaron Liu said:

You also probably want a stream fold function

Ok... What's that? Something like this?
def Stream'.fold (s: Stream' α) (f: α → β → α) (init: α): Stream' β → α

[Aaron Liu]

I guess what I really mean was a stream scan function

[Aaron Liu]

Fold doesn't really work with infinite streams

[Easyoakland]

If you could write the type-signature or link to what you mean that would be helpful.

[Aaron Liu]

I feel like your choice to omit head and tail is leading to a lot of pain

[Easyoakland]

It's not really a choice. It's a requirement for this to work to describe hardware. The alternative I already know will work is representing hardware as input -> StateM (output, state)instead. The problem with that approach is that state is explicit and must be threaded by the user on composition.

[Easyoakland]

If you allow head and tail then you get this

[Aaron Liu]

What do you mean StateM (output, state)? I feel like this could be a good solution

[Easyoakland]

Aaron Liu said:

What do you mean StateM (output, state)? I feel like this could be a good solution

Literally that. Represent coinduction as a function with explicit state input and output.

def multiply_accumulate'' (x y: Nat): StateM Nat Nat := do
  let res := (← get) + x * y
  set res
  pure res

The reason I was interested in finding an alternative is that it's harder to make temporal guarantees when the user can just decide not to call the transition function.
If the state was inaccessible you could write a delay function that guaranteed output after n transitions.

If state is explicit like

def delay1 (a:α): StateM α α := do
  let next ← get
  set a
  pure next

def delayN (n:Nat) [NeZero n] (a:α): StateM (Vector α n) α := do
  let mut state ← get
  let (res, out) := state.shiftRight a
  set res
  pure out

then you can't stop the user from just ... not calling the transition function.

[Aaron Liu]

What do you mean "transition function"

[Easyoakland]

Finite state machine has a transition function.

[Aaron Liu]

What part of the code corresponds to the transition function?

[Easyoakland]

delayN is a transition function for a finite state machine which delays the input n transitions of delayN.

[Easyoakland]

There's a different transition function for every finite state machine.

[Aaron Liu]

So your problem is that the user can decide to not use your code?

[Easyoakland]

Something in the future I'd want to try is representing a Signal n type which represents values in time, with a guarantee that the value is useful after a delay of n. This comes up in hardware a lot because of pipelining. For example a multiplication circuit might be output the result of the inputs after 3 transition delay.

[Aaron Liu]

hmm

[Aaron Liu]

my immediate reaction is "build a monad"

[Aaron Liu]

but I guess it depends on what you mean by "time" and "delay"

[Easyoakland]

Aaron Liu said:

my immediate reaction is "build a monad"

Where? StateM is a monad. Signal can't be a monad. It has to be an Applicative Functor.

[Aaron Liu]

ok, build an applicative functor then

[Easyoakland]

Aaron Liu said:

ok, build an applicative functor then

That's what this thread is. The problem with making it work without partial annotations.

[Aaron Liu]

what specifically is not working

[Easyoakland]

without partial annotations.

[Aaron Liu]

explain what you did, what happened, and what you want to happen

[Aaron Liu]

For your multiply_accumulate function, I have a solution

[Easyoakland]

Do you see the first post I made in this subject/thread? That's what I did. Then @Robin Arnez helped make it non-partial using partial_fixpoint but this didn't work for the more complicated multiply_accumulate.

@Robin Arnez Didn't answer, but I think the implication was that + can't be proven monotone.

[Aaron Liu]

sorry if I'm not being helpful right now I just want to understand your problem

[Easyoakland]

Aaron Liu said:

For your multiply_accumulate function, I have a solution

I'm interested.

[Aaron Liu]

I think it works it you have a Stream'.comul like this (are you still using Stream'?):

import Mathlib

def Stream'.comul {α : Type*} (s : Stream' α) : Stream' (Stream' α) := fun x y => s (x + y)

[Aaron Liu]

but I haven't tested it thouroughly

[Easyoakland]

Aaron Liu said:

sorry if I'm not being helpful right now I just want to understand your problem

There's something like 4 levels of difficulty to this business of representing changing values in time while hiding state.
First is a constant value. That's easy.
Second is a value which changes only dependent on itself. That's what I got stuck on but seems to be solved with partial_fixpoint (I have proofs on the output of increasing that work).
Third, is a time-varying value dependent on other values. That's like multiply_accumulate.
Fourth, is a function with multiple time-varying values which each depend on multiple other time-varying values. This would be something like a full processor.

[Aaron Liu]

interesting

[Aaron Liu]

How does it work in real life? Maybe you can derive some inspiration.

[Easyoakland]

Aaron Liu said:

I think it works it you have a Stream'.comul like this (are you still using Stream'?):

import Mathlib

def Stream'.comul {α : Type*} (s : Stream' α) : Stream' (Stream' α) := fun x y => s (x + y)

I don't know how this should be used. It looks like equivalent to fun s => s :: Stream'.tails s but I don't see how that's helpful.

[Easyoakland]

Aaron Liu said:

How does it work in real life? Maybe you can derive some inspiration.

In case it wasn't clear, Clash already does this. It's Signal type is what I'm trying to emulate. The problem is that (after translating Haskell lazyness to strict Lean as in the original post) Lean's termination checker is sad.

[Aaron Liu]

Easyoakland said:

If you could write the type-signature or link to what you mean that would be helpful.

Stream'.scanl {α β : Type*} (s : Stream' α) (f : β → α → β) (init : β) : Stream' β
I just realized this is a special case of
Stream'.mapM {α β : Type*} {m : Type _ → Type _} [Monad m] (s : Stream' α) (f : α → m β) : m (Stream' β)

[Aaron Liu]

actually it looks like Stream'.mapM isn't implementable ignore what I said

[Easyoakland]

This? If yes, I'll go back to my pending question: how would you use this to implement multiply_accumulate without partial def?

def Stream'.scanl {α β : Type*} (s : Stream' α) (f : β → α → β) (init : β) : Stream' β :=
  Nat.rec (motive := fun _ => β) init (fun n prev => f prev (s n))

[Aaron Liu]

finally

def multiply_accumulate := fun x y =>
  scanl (x * y) (fun acc new => acc + new) 0

[Easyoakland]

I'll have to think about it. That might work. Kind of annoying we can't write regular equations.

I think scanl can be implemented with an input bus for the first argument, a register for the current scan state which starts with the value of the third argument to scanl, and a combinatorial circuit for the second argument which takes the value of the state register and the input bus then writes the result to the state register.

[Easyoakland]

For reference this is a tail-recursive version of scanl:

def Stream'.scanl'' {α β : Type*} (s : Stream' α) (f : β → α → β) (init : β) : Stream' β := fun n =>
    let rec go (i : Nat) (acc : β) : β :=
      if i < n then go (i+1) (f acc (s.get i))
      else acc
    go 0 init

and it looks like this is going to have the same issue with quadratic runtime as the stream at n requires calculating the input stream at each value <n.

[Easyoakland]

Yup. This is unusably slow.

#eval
  let s := multiply_accumulate''' (pure 1) (pure 2)
  let s := multiply_accumulate''' (s) (pure 2)
  let s := multiply_accumulate''' (s) (pure 2)
  let s := multiply_accumulate''' (s) (pure 2)
  s.take 100
