Stenography and Lean 4

Stream: general

[(deleted)]

This is an offshoot of #mathlib4 > Switch to ↦ (\mapsto) globally

From what is said in the thread, there are some Lean users who use alternate keyboard layouts or custom systems to make it easier to type symbols. I would like to learn more about these systems so I can incorporate in my day to day Lean usage.

[suhr]

https://wiki.debian.org/XCompose

Some symbols for math

<Multi_key> <f> <i> : "∈"
<Multi_key> <f> <a> : "∀"
<Multi_key> <f> <e> : "∃"
<Multi_key> <f> <t> : "∧"
<Multi_key> <f> <v> : "∨"
<Multi_key> <f> <grave> : "¬"
<Multi_key> <f> <u> : "∪"
<Multi_key> <f> <n> : "∩"
<Multi_key> <f> <s> : "⊆"
<Multi_key> <f> <S> : "⊇"
<Multi_key> <f> <l> : "λ"
<Multi_key> <f> <bracketleft> : "⟨"
<Multi_key> <f> <bracketright> : "⟩"
<Multi_key> <f> <braceleft> : "←"
<Multi_key> <f> <braceright> : "→"
<Multi_key> <f> <slash> : "≠"
<Multi_key> <f> <less> : "≤"
<Multi_key> <f> <greater> : "≥"
<Multi_key> <colon> <colon> : "⋮"
<Multi_key> <f> <E> : "↔"
<Multi_key> <f> <backslash> : "↦"
<Multi_key> <f> <semicolon> : "←"

I also can type APL and BQN symbols in a similar way.

[Arthur Paulino]

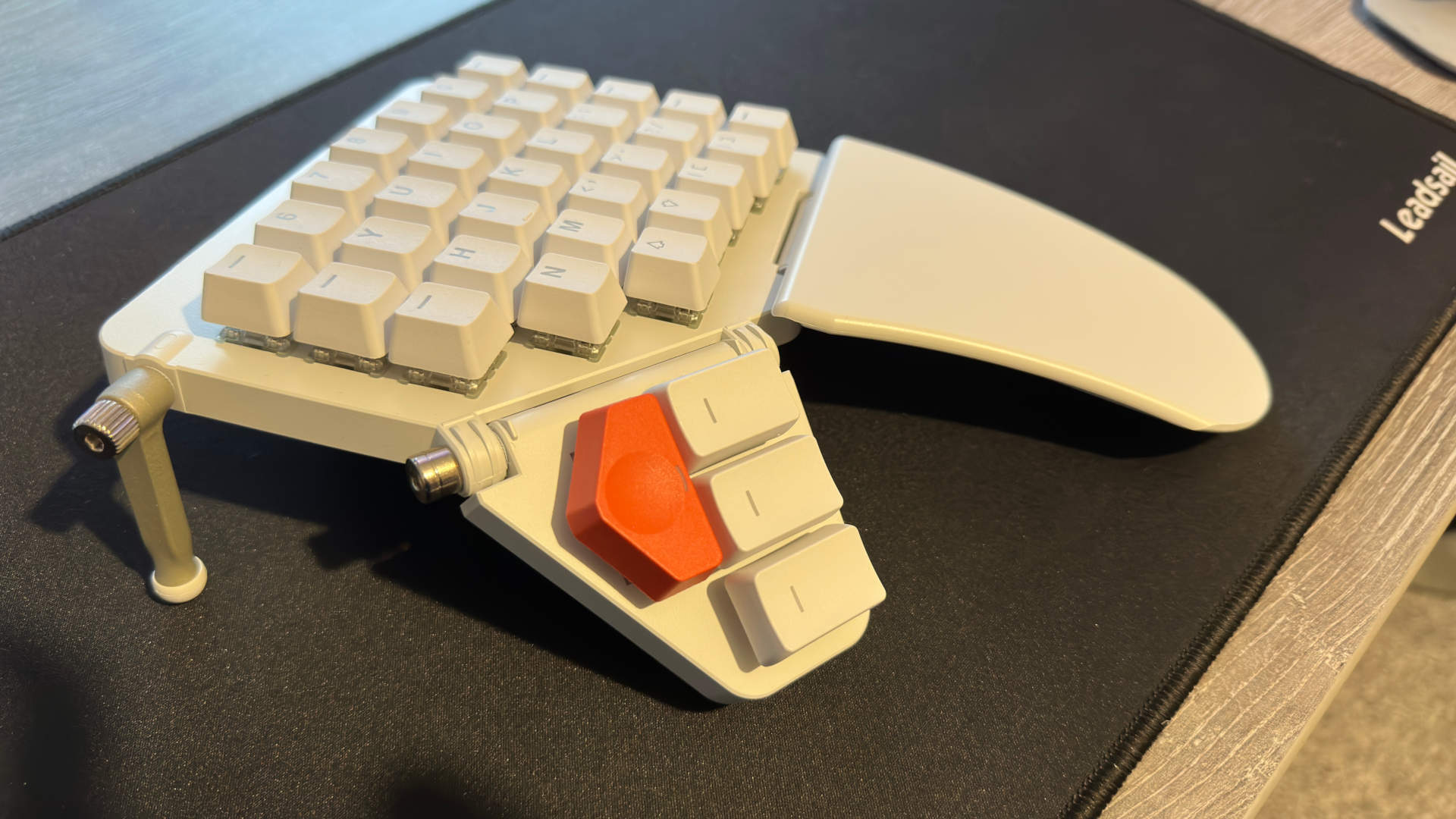

I use a split keyboard and I've optimized my layout for programming in Lean and Rust: https://configure.zsa.io/moonlander/layouts/3oLLB/latest/0

If you check the MiscL layer, I have sequenced keys bound to :, = and >, which make it easier for me to type := and =>.

Similarly, on the MiscR layer, I have a setup for typing |>. fast. There are other sequenced keys that are easy, like <-, ->, != etc.

Also, note that I've made : easier to reach than ;.

[(deleted)]

Split keyboard... NKRO... Thumb keys... Maybe it's time for you to try Plover

[Arthur Paulino]

It's a beautiful bird, but I don't eat that kind of food :smiley_cat:

[suhr]

Huỳnh Trần Khanh said:

Maybe it's time for you to try Plover

Nah, I'm fine (I also use a split keyboard).

[suhr]

(still using qwerty though)

[Violeta Hernández]

I have a bunch of pseudo-Latex macros like !in; and !sqrt; which I use to type Unicode on the day to day

[Aaron Liu]

I just have a normal keyboard

[Arthur Paulino]

I used normal keyboards for 25+ years. But now I'm trying to fix my posture. The shoulders feel much better now

[suhr]

I don't care about posture, \\\\ stagger is just awkward for the left hand.

[suhr]

And uneven stagger is a bit awkward for the right hand too.

[Aaron Liu]

suhr said:

I don't care about posture, \\\\ stagger is just awkward for the left hand.

I have no idea what this means

[suhr]

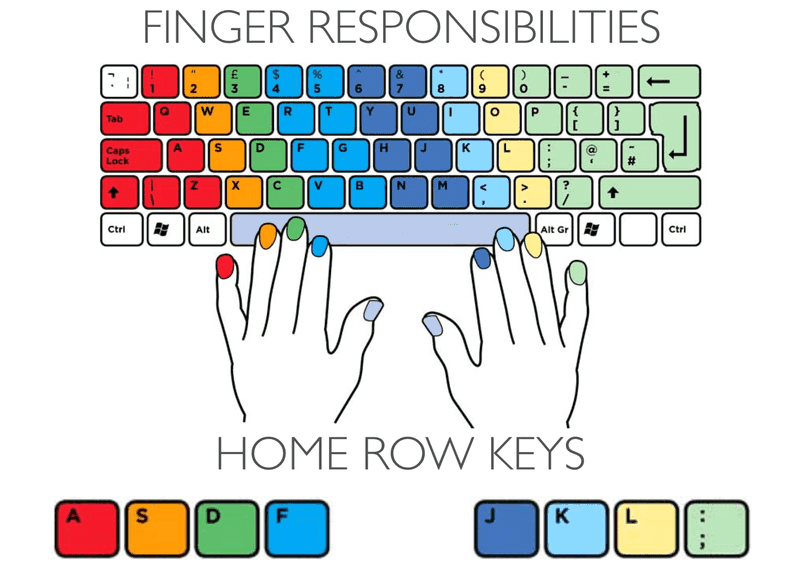

Notice that the columns form the \\\\ shape.

[suhr]

That's nice for the right hand, but not so nice for the left hand. Because for the left hand you would like //// instead.

[Aaron Liu]

oh good point yeah that's a little stressful on the left hand

[Aaron Liu]

how do I fix my keyboard

[(deleted)]

There are cursed keycaps out there that turn staggered keyboards into ortholinear keyboards...

[suhr]

By getting one which does not have this problem. Columnar split keyboard is a popular option.

[(deleted)]

This keyboard is very good https://shop.chenonetta.com/product/jarne-the-ultimate-keyboard/

[(deleted)]

It takes a century to get one though because these keyboards are made by hand

[suhr]

There are also various kinds of symmetric keyboards, like katana, x-bows, etc.

[Aaron Liu]

Huỳnh Trần Khanh said:

This keyboard is very good https://shop.chenonetta.com/product/jarne-the-ultimate-keyboard/

it doesn't have a numpad

[suhr]

Yeah, it does not have enough key overall.

[Aaron Liu]

I want all the keys

[Aaron Liu]

still sad my own keyboard doesn't have F13-F24

[Arthur Paulino]

Right, that's why I bought a split keyboard with ortholinear parts. This way you can tilt both parts accordingly.

The parts also spin slightly on the axis that follow the forearm so you don't end up twisting your arm with the thumbs downwards and the small fingers upwards to type on a flat surface. The difference is HUGE.

[suhr]

Huỳnh Trần Khanh said:

There are cursed keycaps out there that turn staggered keyboards into ortholinear keyboards...

Unlike the standard keyboard, which is awkward for the left hand, ortholinear (square grid) keyboards are awkward for both hands. Unless you split it in two halves and put them far apart.

[Thomas Murrills]

Iirc, it’s probably worth mentioning in this thread the difference between ortholinear keyboards and columnar keyboards (where the columns are staggered to match finger length differences). The keyboard in @Arthur Paulino’s message (the ZSA moonlander, perhaps?) looks to me to have slightly staggered columns instead of being a true ortholinear!

[Thomas Murrills]

(Aside: I’ve heard good things about the Moonlander! If I had the desk setup to accommodate it, I’d seriously consider investing in one…)

[Arthur Paulino]

Hm, my keys are ortholinear (they truly follow the shape of the fingers), but they don't form a grid! They keys for the middle columns go a bit further away. This is another detail that improves the adjustment for my hands.

[Arthur Paulino]

I'm not getting any money from this. I'm just being honest about my experience :sweat_smile:

I wish the best for anyone who spends several hours everyday on a computer, like I do.

[Thomas Murrills]

Oh, I was under the impression “ortholinear” specifically meant having the keys arranged on a square grid (i.e. “along perpendicular lines”), while “columnar” referred to the arrangement you see there, where each finger’s keys are in a column, and the columns are staggered!

[Arthur Paulino]

The definitions seem to vary across different sources, but you got the idea

[Patrick Massot]

Aaron Liu said:

I want all the keys

This is a mistake. The maximum number of keys that you can have in a comfortable keyboard is 42 (six keys for index and pinky fingers, three keys for the other fingers). Above that number there are keys that are more than one key away from your rest position. I don’t have any keyboard with more than 36 keys (only three keys per pinky finger), but some people like 42 keys. Then of course I have many layers which give me access to many more symbols and macros than what you get on a non-configured 105 keys keyboard. And Leo de Moura also uses such keyboards, so the discussion is settled anyway.

[Patrick Massot]

Fun coincidence: I just gave a talk about Lean to high school students in Hangzhou and all questions after the talk were about my keyboard (a chocofi keyboard in this case).

[Patrick Massot]

That being written, this conversation is really getting off-topic and we should stop it.

[Gavin Zhao]

*sad Vim digraph user noises

[suhr]

Patrick Massot said:

The maximum number of keys that you can have in a comfortable keyboard is 42 (six keys for index and pinky fingers, three keys for the other fingers).

I can easily reach all 60 keys on my keyboard (ergohaven k03). Even though my hands are not that big. And I think one could easily reach even more keys on glove80 due to keyboard being curved.

[Aaron Liu]

I can move my hands around to reach more keys on my keyboard

[Michael Rothgang]

comfortable is the load-bearing word above. Of course you can reach more keys; the question is how easy/efficient this is (or perhaps, if working with a smaller keyboard and more layers would actually be better).

[Michael Rothgang]

FWIW, I suspect the answer is yes, but am still using a default keyboard layout (QWERTZU)

[JJ]

I find much success in using XCompose like @suhr. It works mostly everywhere, though differences in behavior across GTK / Qt / SDL and failure to work in libadwaita is sometimes annoying. GTK gives you a preview of what you're typing and lets you cancel and delete it, which is very very nice, especially since Firefox / Chrome / VSCode / etc are GTK-based.

(Also, despite the name, XCompose works fine on KDE + Wayland -- probably GNOME, too)

I found it useful to copy the Lean keybindings out of the VSCode extension as a base. I transformed those into the XCompose syntax. Since then I've added a bunch of random bindings for various symbols I need for linguistics etc, and changed some symbols to better align with how I first think to type them...

If anyone is so interested I've attached a modified version of my XCompose here (with some raw key remappings excluded). XCompose
