Yuma Mizuno (Feb 14 2024 at 19:48):
String diagrams are graphical representations of morphisms in monoidal categories, which are extremely useful for rewriting computations. They are also related to e.g. knot theory.
I have written a program that draws string diagrams from lean expressions. This is avalable in branch#ymizuno-string.
The program depends on ProofWidgets, and in particular inspired by CommDiag.lean, which is written by @Wojciech Nawrocki.
I will be happy if this helps anyone in writing proofs involving monoidal categories. Suggestions and comments are welcome!
Bolton Bailey (Feb 14 2024 at 19:54):
I have been interested in using string diagrams for cryptography. Can you tell me: Is it possible to replicate the proof depicted in figure 6 of this paper using this string diagram system?
Yuma Mizuno (Feb 14 2024 at 20:05):
Bolton Bailey said:
I have been interested in using string diagrams for cryptography. Can you tell me: Is it possible to replicate the proof depicted in figure 6 of this paper using this string diagram system?
Yes, I think it's possible. In fact, my main motivation was to provide a tool to help with such "graphical rw".
Kyle Miller (Feb 14 2024 at 20:13):
It would be neat if this let you work with string diagrams in a similar manner as Globular. (https://ncatlab.org/nlab/show/Globular http://globular.science/)
Globular uses a different sort of formalization (associative n-categories), but, at least, a nice feature would be if you could select certain elements of the string diagram and have the tool insert all the coherence maps, etc., to bring them all "into one place" so that you can rewrite that subdiagram.
Kim Morrison (Feb 14 2024 at 21:10):
I think globular has been replaced by homotopy.io
Bolton Bailey (Feb 17 2024 at 09:09):
I am currently livestreaming my attempt at the diagrammatic proof from the paper I linked. I have come to the following goal:
C: Type u
inst✝¹: Category.{v, u} C
inst✝: MonoidalCategory C
XYZ: C
R: (V₁ V₂ : C) → V₁ ⊗ V₂ ⟶ V₂ ⊗ V₁
V₁V₂V₃V₄V₅V₆V₇V₈V₉: C
⊢ (V₅ ⊗ V₆) ⊗ V₇ ⊗ V₈ ⟶ (V₅ ⊗ V₇) ⊗ V₆ ⊗ V₈
I want to do this in the obvious way: Using R
to switch theV6
and V7
with lots of associativity on either side. Is there a tactic that solves this kind of category theoretic goal?
Yaël Dillies (Feb 17 2024 at 09:12):
The tactic that uses the attribute reassoc
although I have forgotten its name
Bolton Bailey (Feb 17 2024 at 09:13):
ac_change
?
Kevin Buzzard (Feb 17 2024 at 09:20):
Does this thread help? (tl;dr: slice
)
Bolton Bailey (Feb 17 2024 at 09:26):
Kevin Buzzard said:
Does this thread help? (tl;dr:
slice
)
This seems like it is more for categorical composition than monoidal-categorical tensoring
Yuma Mizuno (Feb 17 2024 at 09:30):
Bolton Bailey said:
I am currently livestreaming my attempt at the diagrammatic proof from the paper I linked. I have come to the following goal:
C: Type u inst✝¹: Category.{v, u} C inst✝: MonoidalCategory C XYZ: C R: (V₁ V₂ : C) → V₁ ⊗ V₂ ⟶ V₂ ⊗ V₁ V₁V₂V₃V₄V₅V₆V₇V₈V₉: C ⊢ (V₅ ⊗ V₆) ⊗ V₇ ⊗ V₈ ⟶ (V₅ ⊗ V₇) ⊗ V₆ ⊗ V₈
I want to do this in the obvious way: Using
R
to switch theV6
andV7
with lots of associativity on either side. Is there a tactic that solves this kind of category theoretic goal?
We can use docs#Mathlib.Tactic.Coherence.monoidalComp to do this.
import Mathlib.Tactic.CategoryTheory.Coherence
open CategoryTheory
open scoped MonoidalCategory
universe v u
variable {C : Type u} [Category.{v} C] [MonoidalCategory C]
def R' (V₅ V₆ V₇ V₈ : C) (R : (V₁ V₂ : C) → V₁ ⊗ V₂ ⟶ V₂ ⊗ V₁) :
(V₅ ⊗ V₆) ⊗ V₇ ⊗ V₈ ⟶ (V₅ ⊗ V₇) ⊗ V₆ ⊗ V₈ :=
𝟙 _ ⊗≫ V₅ ◁ R V₆ V₇ ▷ V₈ ⊗≫ 𝟙 _
Yuma Mizuno (Feb 17 2024 at 09:32):
By the way the string diagram widget does not support monoidalComp
at the moment, so we need to expand it to show the string diagram.
Yuma Mizuno (Feb 17 2024 at 09:46):

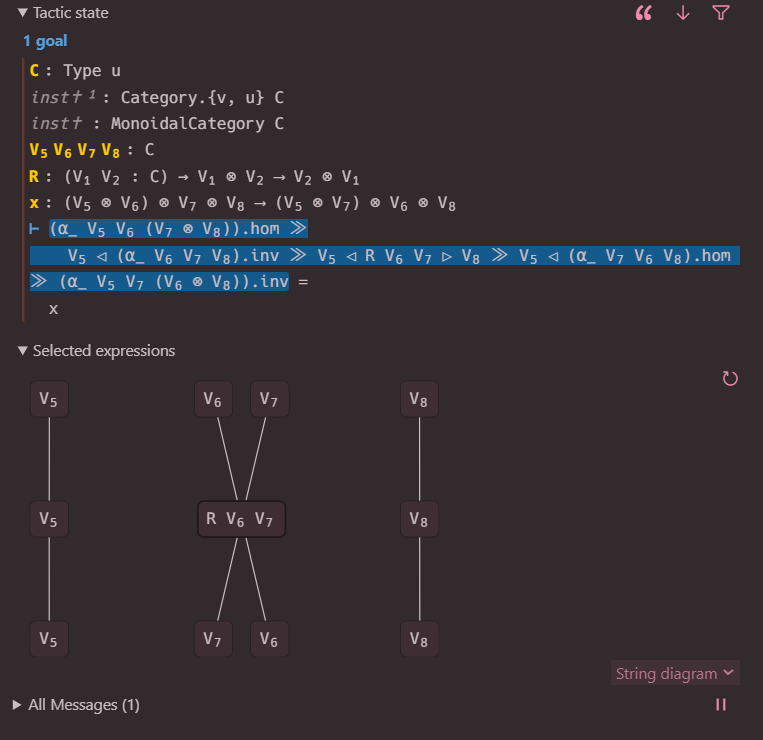

The following works in branch#ymizuno-string.
import Mathlib.Tactic.Widget.StringDiagram
import ProofWidgets.Component.Panel.SelectionPanel
import Mathlib.Tactic.CategoryTheory.Coherence
/-! ## Example use of string diagram widgets -/
section MonoidalCategory
open ProofWidgets
open CategoryTheory
open MonoidalCategory
universe v u
variable {C : Type u} [Category.{v} C] [MonoidalCategory C]
example (V₅ V₆ V₇ V₈ : C) (R : (V₁ V₂ : C) → V₁ ⊗ V₂ ⟶ V₂ ⊗ V₁)
(x : (V₅ ⊗ V₆) ⊗ V₇ ⊗ V₈ ⟶ (V₅ ⊗ V₇) ⊗ V₆ ⊗ V₈) :
𝟙 _ ⊗≫ V₅ ◁ R V₆ V₇ ▷ V₈ ⊗≫ 𝟙 _ = x := by
simp [Mathlib.Tactic.Coherence.monoidalComp, id_tensorHom, tensorHom_id]
with_panel_widgets [SelectionPanel]
-- -- Place your cursor here and shif-click the LHS.
sorry
Bolton Bailey (Feb 17 2024 at 10:01):
It should still be able to capture the leftmost side of diagram six though right?
Bolton Bailey (Feb 17 2024 at 10:01):
Wait, I got it to work!!

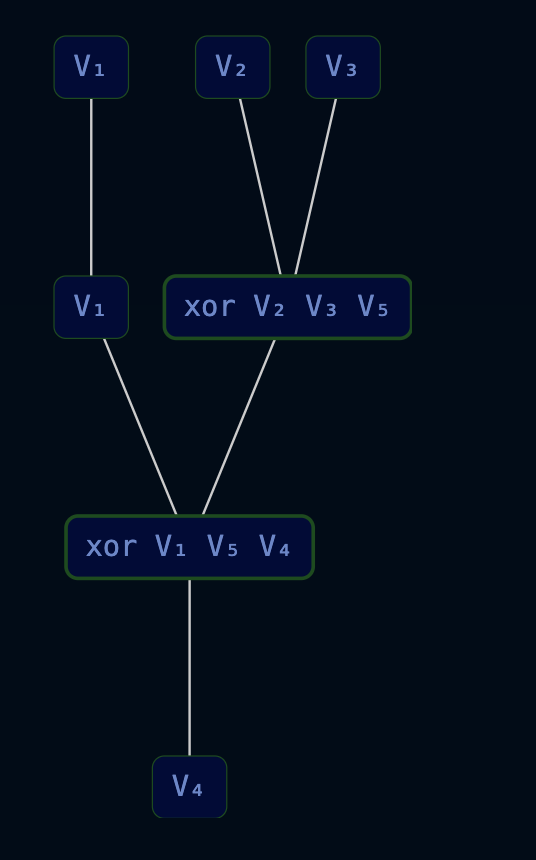

Bolton Bailey (Feb 17 2024 at 10:02):

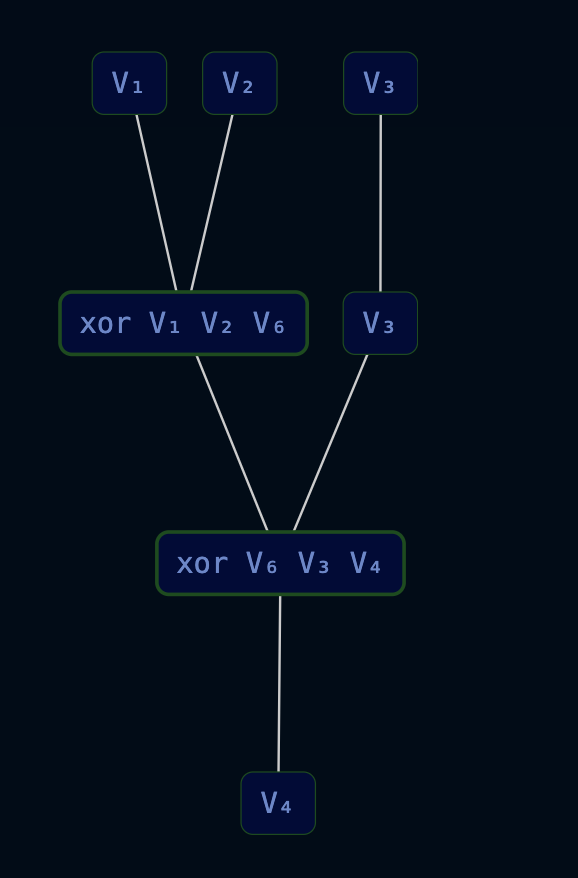

Bolton Bailey (Feb 17 2024 at 10:02):
That's so cool!!
Bolton Bailey (Feb 17 2024 at 10:06):
Ok, I am realizing now that I didn't need to spend four hours on the constructions of the individual string manipulations if I just wanted to see this, but still it's very satisfying.
Bolton Bailey (Feb 17 2024 at 10:07):

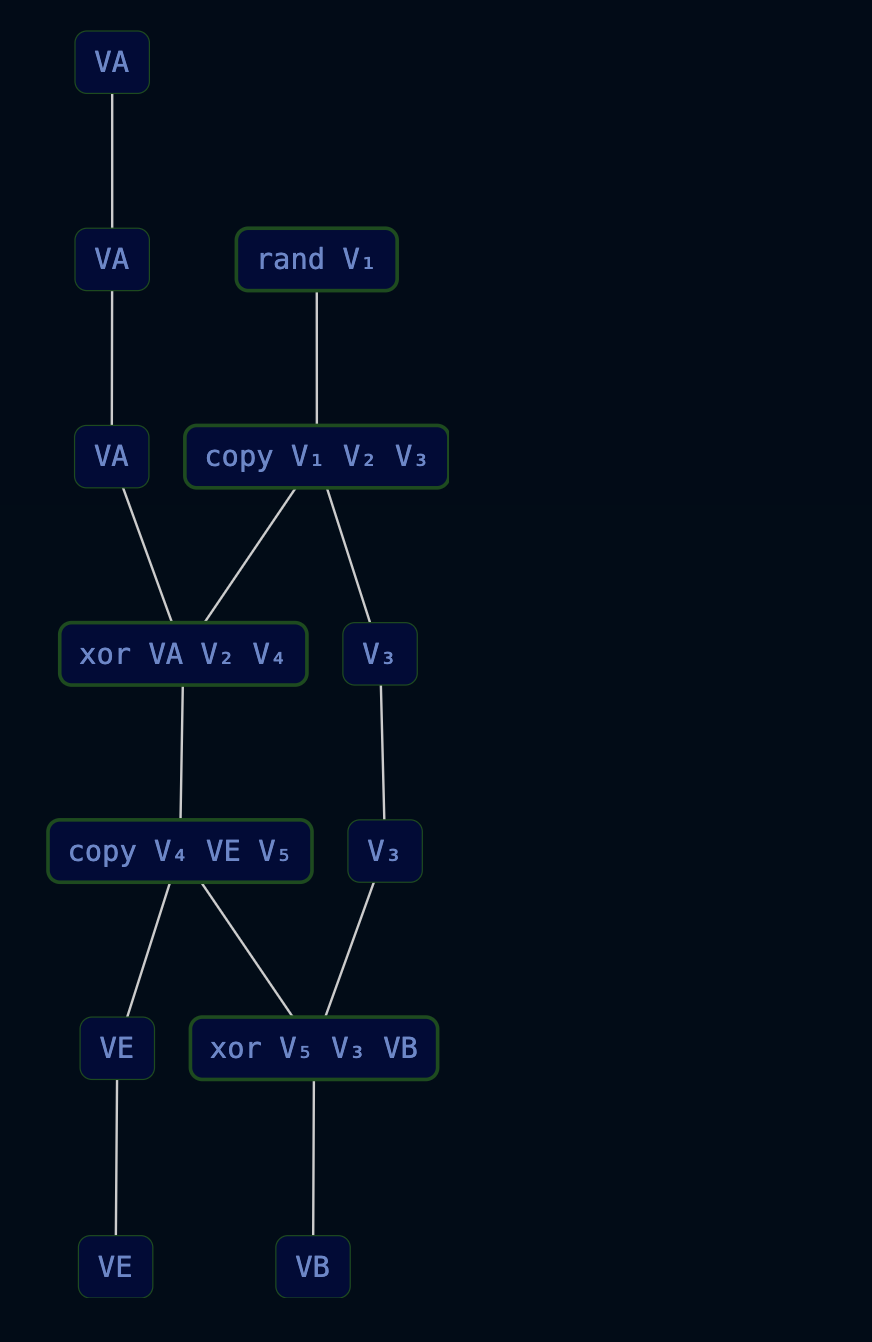

Ah, but I can see those manipulations written out as well by shift-clicking!
Bolton Bailey (Feb 17 2024 at 10:10):

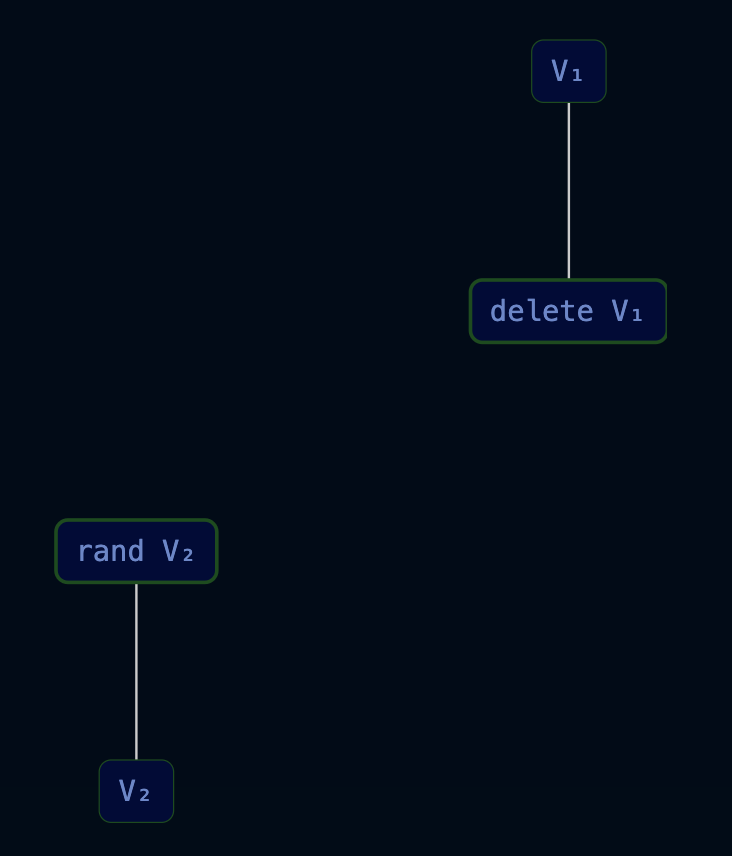

Bolton Bailey (Feb 17 2024 at 10:10):
Time well-spent! Thanks this has been super fun!
Bolton Bailey (Feb 17 2024 at 10:16):
Here is the code #10655
Bolton Bailey (Feb 17 2024 at 10:25):
... and here's the VOD when it uploads https://youtu.be/ueFbfwVzBfI
Johan Commelin (Feb 17 2024 at 10:26):
This looks really cool! Congrats!
It's a private video... and I don't have a google account, so I can't watch it.
Bolton Bailey (Feb 17 2024 at 10:27):
Thanks, I have now set the video to public (it's still uploading though, so I think it'll be another few minutes before it's available).
Bolton Bailey (Feb 17 2024 at 10:34):
(Oh right, google makes you sign in to watch age restricted videos, that's annoying. I had age-restricted it because I swore once or twice, but it wasn't "gratuitous" so I've turned off the restriction, hopefully that makes it possible to view without a google account. It looks like the video file will process for an hour or so as well)
Eric Wieser (Feb 17 2024 at 11:48):
(It's now available, but only in very low quality; it's also 4h30, which is why uploading is taking a while!)
Yuma Mizuno (Feb 17 2024 at 12:08):
I opened a PR #10581 to share the issues I am aware of. I would be happy to receive someone's help.
Bolton Bailey (Feb 17 2024 at 12:48):
Yeah, the low quality is unfortunate - the video on my computer is better. Google says that it might still be processing the higher quality versions.
Bolton Bailey (Feb 17 2024 at 13:58):
Ok video seems to have a higher quality option now.
Going over it, it was overall a very good proving session. One thing I was caught up on for around three and a half minutes was this error, where it is highlighting the first line of the composition in red, when it feels like it should be highlighting the ()
at the bottom in red.
Dean Young (Apr 12 2024 at 01:13):
@Yuma Mizuno this is really cool. Is it possible to modify this to work for Mathlib 4's strict bicategories?
Yuma Mizuno (Apr 12 2024 at 01:53):
Dean Young said:
Yuma Mizuno this is really cool. Is it possible to modify this to work for Mathlib 4's strict bicategories?
Yes, it's pretty straightforward. I wish I will do it in the near future.
Dean Young (Apr 12 2024 at 14:19):
@Yuma Mizuno @Shanghe Chen and I are very interested
Yuma Mizuno (Apr 13 2024 at 11:41):
Now the string diagram widget for bicategories are available in #12107! You can use it by importing
import Mathlib.Tactic.Widget.StringDiagram
import ProofWidgets.Component.Panel.SelectionPanel
import ProofWidgets.Component.Panel.GoalTypePanel
open ProofWidgets
and inserting with_panel_widgets [SelectionPanel]
or with_panel_widgets [GoalTypePanel]
at the beginning of the proof you are interested in.

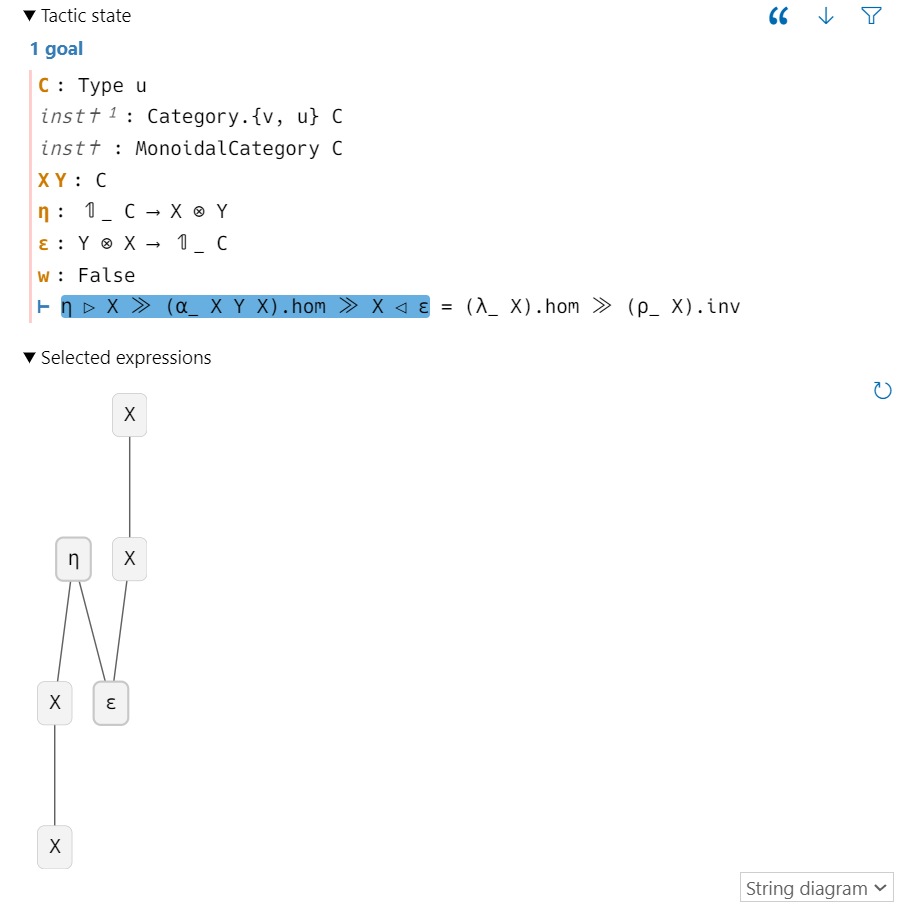

2024-04-13-20-14-41.mp4
Mario Carneiro (Apr 13 2024 at 11:59):
@Bolton Bailey said:
One thing I was caught up on for around three and a half minutes was this error, where it is highlighting the first line of the composition in red, when it feels like it should be highlighting the
()
at the bottom in red.
Can you make a MWE of this issue? Smaller versions of the example seem to behave as desired, for example
#check
(1 + 1
+ 2 : Nat) =
() -- error highlight is here
By the way, you note in the video that it's weird that the error highlight doesn't encompass the whole expression. It actually does, you can tell because it shows the error message when your cursor is anywhere in the expression, but the red squiggle
itself is truncated to the first line because it can be distracting and confusing to have a giant red squiggle over everything
Bolton Bailey (Apr 13 2024 at 16:13):
I made a #mwe at the time, it's in this thread (note I posted the video back in February)
Bolton Bailey (Apr 13 2024 at 16:15):
Kyle Miller said at the time he was working on a fix. Based on how the MWE in the thread now seems to have the right error, it looks like he did fix it. Thanks @Kyle Miller !
