Visualizing/quantifying proof complexity

Stream: general

[Arndt Schnabel]

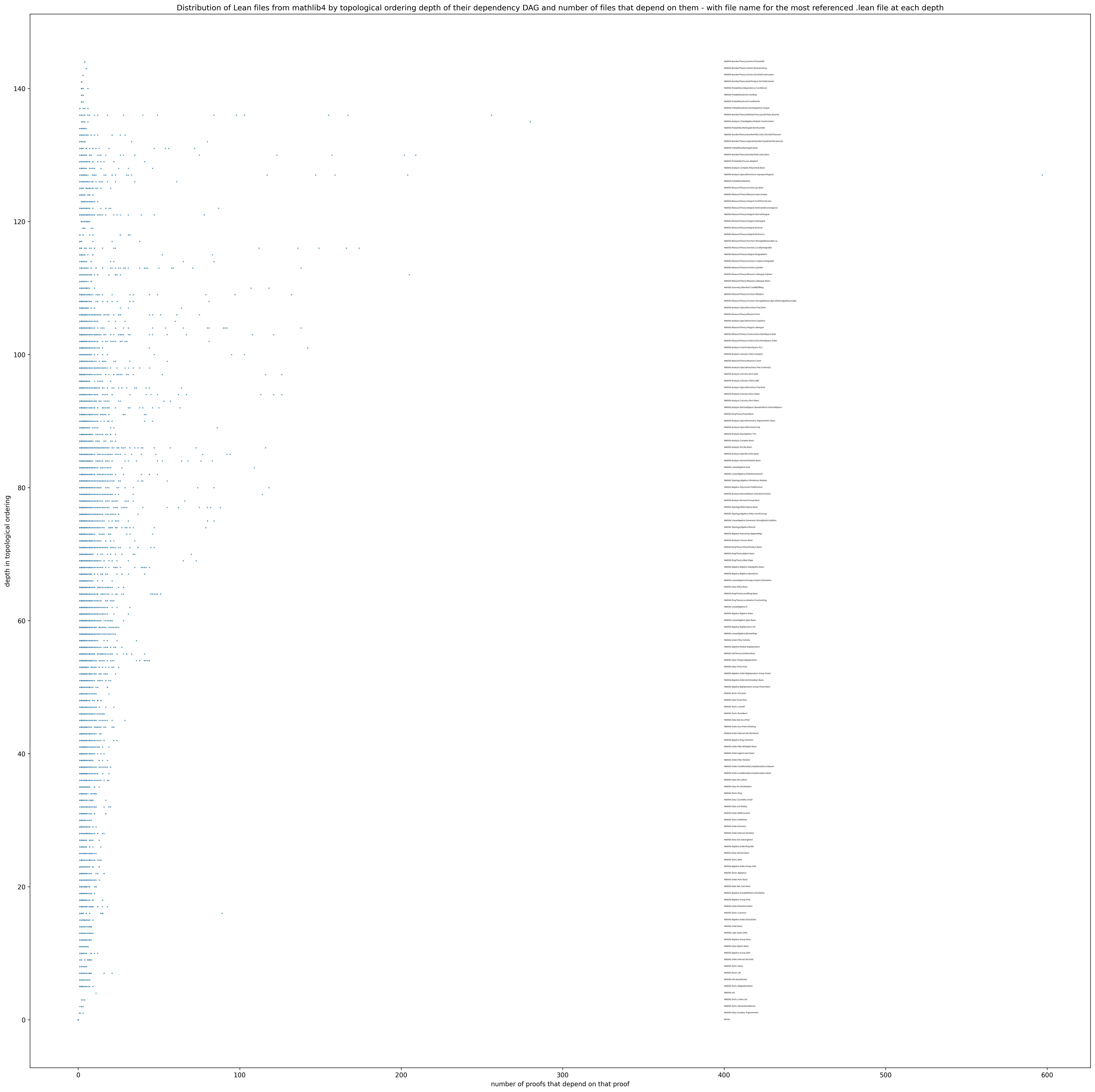

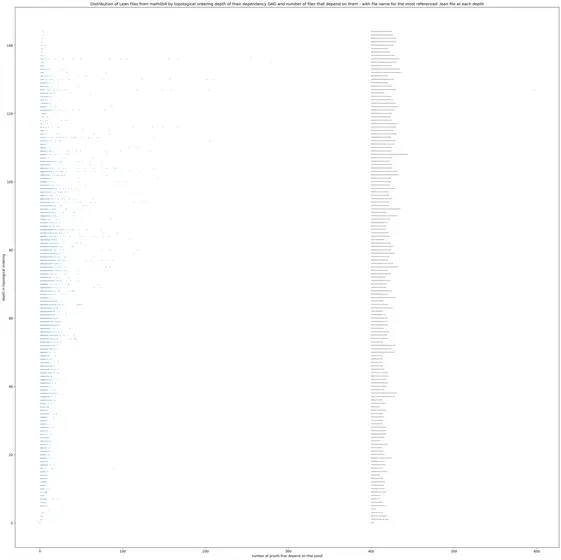

I wrote a script to go through all .lean files of Mathlib4 and generate the import dependency graph, then applied a topological sort to that graph so an ordering by dependencies arises (there where a handful of cyclical imports which i arbitrarily broke manually):

Not sure if there is a tool that instead generates a list of theorems in a file (and a list of the specific theorems they depend on for each), that may be interesting to apply such a topological sort too, since different theorems in one file may be of varying complexity.

[Arndt Schnabel]

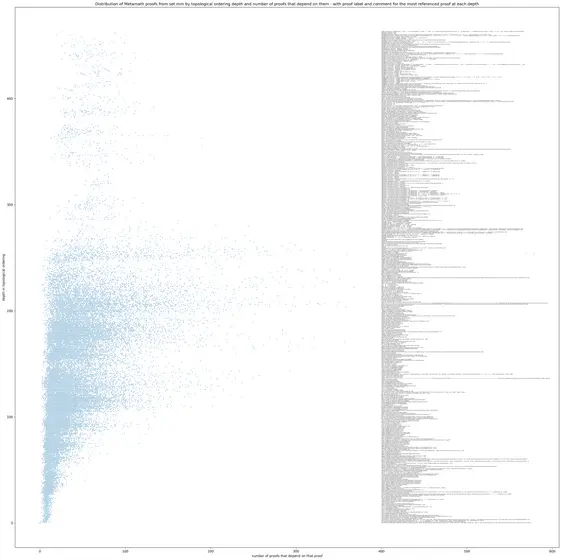

Here is the same idea but with theorems of Metamath's set.mm proof library

[Arndt Schnabel]

These make me wonder at which depth cutting edge math proofs would be found

[Oliver Dressler]

I made a similar visualization of theorem dependencies in Mathlib (v4.15-rc1).

The underlying data is extracted using LeanDojo and processed into a 3MB zip.

Topological sort is a cool idea, I might give that a try and include the resulting complexity in the visualization!

[suhr]

Another good thing to compute is the dominator tree of the graph. It is basically "Y is needed only because it's used by X" relation.

[suhr]

There's a rather simple algorithm for that: https://www.cs.tufts.edu/~nr/cs257/archive/keith-cooper/dom14.pdf

[Michael Rothgang]

Arndt Schnabel said:

there where a handful of cyclical imports which i arbitrarily broke manually

I'm surprised by that statement: I thought/think that import cycles are disallowed. Do you remember one example of such a cycle?

[Arndt Schnabel]

Me too, but since i don't understand Lean yet or my script is too simple it may not be correct yet. But it found these:

Mathlib.Data.Complex.Exponential <- Mathlib.Data.Complex.Trigonometric <- Mathlib.Tactic.FunProp <- Mathlib.Tactic.ContinuousFunctionalCalculus <- Mathlib.Algebra.Order.Star.Basic <- Mathlib.Data.Complex.Exponential

Mathlib.Order.Interval.Set.UnorderedInterval <- Mathlib.Order.Interval.Set.OrderEmbedding <- Mathlib.Order.Interval.Set.OrdConnected <- Mathlib.Order.Cover <- Mathlib.Order.Interval.Finset.Basic <- Mathlib.Order.Interval.Multiset <- Mathlib.Order.Interval.Finset.Nat <- Mathlib.Order.Interval.Finset.Fin <- Mathlib.Data.Fintype.Fin <- Mathlib.Algebra.BigOperators.Fin <- Mathlib.Algebra.BigOperators.Finsupp <- Mathlib.Data.Finsupp.Basic <- Mathlib.Data.Finsupp.SMul <- Mathlib.LinearAlgebra.Finsupp.Defs <- Mathlib.LinearAlgebra.Finsupp.LSum <- Mathlib.Algebra.MonoidAlgebra.Defs <- Mathlib.Algebra.Polynomial.Basic <- Mathlib.Tactic.ExtractGoal <- Mathlib.Tactic.Common <- Mathlib.Order.Interval.Set.UnorderedInterval

[Arndt Schnabel]

here is the script:
topo.py

[Arndt Schnabel]

Oliver Dressler said:

I made a similar visualization of theorem

ooh, LeanDojo looks very useful for this purpose :)

[Jireh Loreaux]

Data.Rat.Defs doesn't import Algebra.Ring.Rat

[Arndt Schnabel]

right, strange

[Arndt Schnabel]

ah, the order is the other way around

[Arndt Schnabel]

okay, i shouldn't have stripped the first component of the path, since it could be Mathlib or Batteries, also, i didn't consider multiline comments - the two remaining "cycles" are probably also only artifacts due to an import example in a comment - which my very basic script doesn't recognize as such

[Arndt Schnabel]

updated the lean_toposort.png image above

[Arndt Schnabel]

Oliver Dressler said:

The underlying data is extracted using LeanDojo and processed into a 3MB zip.

I hope I understood the data.json structure correctly, but here is a list of the top 3 used theorems of each level of the topological sort on its graph :)
topolevelstop3.txt
main.py
