import graph

Stream: general

[Kenny Lau]

could someone kindly create a graph of imports?

[Kenny Lau]

do we have an import graph online?

[Johan Commelin]

Not yet, I think. It's WIP

[Johan Commelin]

Also... now you have to update the title and first post of your PR :rofl:

[Kenny Lau]

what do you mean?

[Johan Commelin]

Well... you're now attacking nonzero_divisors as well, right?

[Johan Commelin]

It's less drastic, but it would be nice to mention it.

[Johan Commelin]

@Eric Wieser Here are some bash functions that will build the import graph for you within seconds:

function file_to_import {
        sed -e 's/src\///;s/.lean//;s/\//./g'
}

function import_to_file {
        sed -e 's/[.]/\//g;s/.*/src\/&.lean/'
}

function list_deps {
        find src/ -name '*.lean' \
                | xargs grep "^import " \
                | sed -e 's/src\///;s/.lean:import//;s/\//./g;s/ --.*//' \
                | grep -v "tactic.norm_num data.real.basic" \
                | grep -v "tactic.find tactic.find"
}

[Eric Wieser]

Where does the code live for leanproject import-graph?

[Johan Commelin]

Output is in tsort format, in other words: one edge per line

A B
C D
E F
A D
A F

etc...

[Eric Wieser]

Searching mathlib-tools for import-graph finds only one match in a changelog

[Eric Wieser]

ImportGraph finds a slightly better match, but only an unused definition.

[Johan Commelin]

@Eric Wieser it really depends on what you want to do. I guess the rendering is what is taking a long time.

[Johan Commelin]

But if you just want the data, I guess the functions I gave above are a good first start.

[Eric Wieser]

The default is .dot though right, which should be trivial to render

[Eric Wieser]

Yeah, thanks for the above

[Johan Commelin]

Not sure if rendering dot files the size of mathlibs import graph is trivial.

[Johan Commelin]

I've never studied graph rendering algorithms

[Eric Wieser]

.dot is a text format

[Eric Wieser]

I'm not asking it to render the dot

[Eric Wieser]

Just write it

[Johan Commelin]

list_deps | wc -l
2779

[Eric Wieser]

Although I suppose it might be running the layout engine in advance.

[Johan Commelin]

Ooh, so you just want a -> between the source and target, basically. And then a digraph FOOBAR { at the start of the file, and a } at the end.

[Johan Commelin]

Anyway, feel free to improve those bash functions

[Eric Wieser]

Not sure I'd go as far as saying that's what I want, but that's what I imagine import-graph already does

[Eric Wieser]

I just don't know what it actually does because I've never managed to invoke it successfully

[Eric Wieser]

Hence the request for the source

[Johan Commelin]

leanproject is producing a dot file with layout instructions, not just the raw graph data.

[Eric Wieser]

Found: https://github.com/leanprover-community/mathlib-tools/blob/ae9119ced054eb6bec43893b73f832268e495747/mathlibtools/lib.py#L660-L681

[Patrick Massot]

Eric Wieser said:

Searching mathlib-tools for import-graph finds only one match in a changelog

What about actually reading that page instead of complaining about GitHub? It says it found two relevant commits.

[Patrick Massot]

You'll then see that this command runs lean --deps to get reliable import information that regex will never give you. However we are pretty strict in mathlib about import lines formatting so ideally the regex based version should almost give the same information (much much faster).

[Patrick Massot]

Of course running the full thing on uncompiled mathlib is a very bad idea. But on a compiled mathlib it should take less than 30 seconds.

[Eric Wieser]

Yeah, the key takeaway here was that .dot output is also doing graph layout, which I wasn't expecting. Using graphml output was much faster

[Eric Wieser]

Perhaps a compromise regarding docs would be to add an "imports" and "imported by" section to each page?

[Eric Wieser]

That might help with discovering related lemmas

[Eric Wieser]

I'll have a go at that once a decision is made about leanprover-community/doc-gen#102, since they'll interact quite a bit and the ImportName object there will help resolve the paths.

[Eric Wieser]

Eric Wieser said:

Perhaps a compromise regarding docs would be to add an "imports" and "imported by" section to each page?

Done in leanprover-community/doc-gen#103

[Eric Wieser]


With thanks to @Gabriel Ebner for putting it somewhere sensible on the page

[Mario Carneiro]

bit of a funny name

[Kevin Buzzard]

good name for a band.

[Eric Wieser]

I had a go at building an interactive import graph for my lean project:

https://observablehq.com/@eric-wieser/lean-ga-imports

I don't know how well this would perform with a full mathlib graph...

[Yaël Dillies]

This visualisation is great! I want to see the full mathlib.

[Yaël Dillies]

But I was having a more pragmatic question: Could we have somewhere in the docs a list of import leaves? I keep encountering files that are never imported and sometimes there's some code that's duplication of a more popular file. So I think that having such a list of orphan files will reduce this accidental duplication, and also provide instantaneous insight so as to where the mathlib frontier is.

[Yaël Dillies]

I think this could fit into a bigger idea of making a list of all src files with a few stats about them (in the same style as the contributors page):

• number of imports
• max depth of import
• number of files importing it
• max depth of subsequent import
• number of lines
• number of declarations
  ...

[Mario Carneiro]

Accidental duplication is best addressed by putting content where it is supposed to go, instead of at the top of the file you are working on like some kind of mini for_mathlib

[Yaël Dillies]

Yeah of course, but I'm speaking about a retroactive change. Some duplication has already been done and I want to find it out without roaming through all files.

[Mario Carneiro]

if there is any content that is out of place, we should fix that first. Code duplication will become obvious at that point

[Mario Carneiro]

If content is out of place there is no guarantee that it will be in a leaf file, unless you subscribe to the thesis that orphan files are new files and review quality has been decreasing over time

[Yaël Dillies]

No, I think orphan files are either new and simply yet to be used anywhere (which is fine) or somewhat old with a drift of interest that means nobody is aware of that file anymore, to the risk of redoing the work.

[Yaël Dillies]

I'm just trying to have an awareness-raising page.

[Mario Carneiro]

I'm still confused as to how this can happen. If you have the theory of foobars it should be in the algebra.foobar file, and then the next person who wants to do the theory of foobars will write their code, put it in the algebra.foobar file and then notice that it already exists

[Mario Carneiro]

I have on several occasions proved a theorem only to discover that it already exists because lean tells me there is a name clash

[Yaël Dillies]

Yeah, but mathematics is the art of giving different names to the same thing :wink:

[Mario Carneiro]

I thought it was the other way around?

[Yaël Dillies]

Typically, nat.xgcd and pnat.xgcd are basically the same thing. But they still both exist. nat.xgcd is well incorporated in the import graph. pnat.xgcd is long forgotten.

[Mario Carneiro]

In those cases, there is a reason for both to exist

[Mario Carneiro]

and in any case, when you want nat.xgcd you will look for nat.xgcd and find it, similarly for pnat

[Mario Carneiro]

whether or not you knew it existed before you went looking

[Yaël Dillies]

Well maybe but I have a hard believing that given that in two years nobody has ever used pnat.xgcd

[Mario Carneiro]

I can believe it... both pnat and xgcd are individually rare, so the combination is even more so

[Mario Carneiro]

but it's not like constants are competing to be the most used thing. You use what you need for the task in front of you. If that is pnat.xgcd then nothing else will substitute

[Yaël Dillies]

This for me underlines what the problem with this file is: It's not really about pnat. The use of pnat here is artificial.

[Yaël Dillies]

And I still don't see why that's an incentive against having a list of orphan files.

[Mario Carneiro]

what is the putative duplication in this example? Do you think pnat.xgcd does too much work itself instead of delegating to nat.xgcd?

[Yaël Dillies]

Yes. Or the other way around.

[Mario Carneiro]

I don't mean to suggest that a list of orphan files isn't useful. I was just responding to the claim about how this relates to code duplication

[Yaël Dillies]

Okay :smile:

[Mario Carneiro]

graph depictions of mathlib always end up kind of useless for actual consultation

[Mario Carneiro]

but a simple database would be easier to work with

[Yaël Dillies]

To be fair, I think there's not much code duplication. Mayb some definitions and a few individual lemmas.

[Yaël Dillies]

Could one incorporate such a database into a webpage?

[Mario Carneiro]

The contributor table looks pretty nice and databasy

[Yaël Dillies]

Yeah okay. That's exactly what I want!

[Yaël Dillies]

If anybody were to direct me to the relevant resources, I could do my import statistics table myself.

[Mario Carneiro]

I guess you just need the same data set that leancrawler uses (cc: @Patrick Massot )

[Yaël Dillies]

Yeah most probably. But that means we can't update it regularly? Unless we let leanprover_bot do it?

[Mario Carneiro]

it could be incorporated into the community web page and/or docgen

[Eric Wieser]

Perhaps doc-gen should publish its intermediate export json (which I used in the visualization up thread) to make it easier to perform an analysis of import graphs

[Eric Wieser]

It's probably as easy as adding a cp to the CI script somewhere

[Eric Wieser]

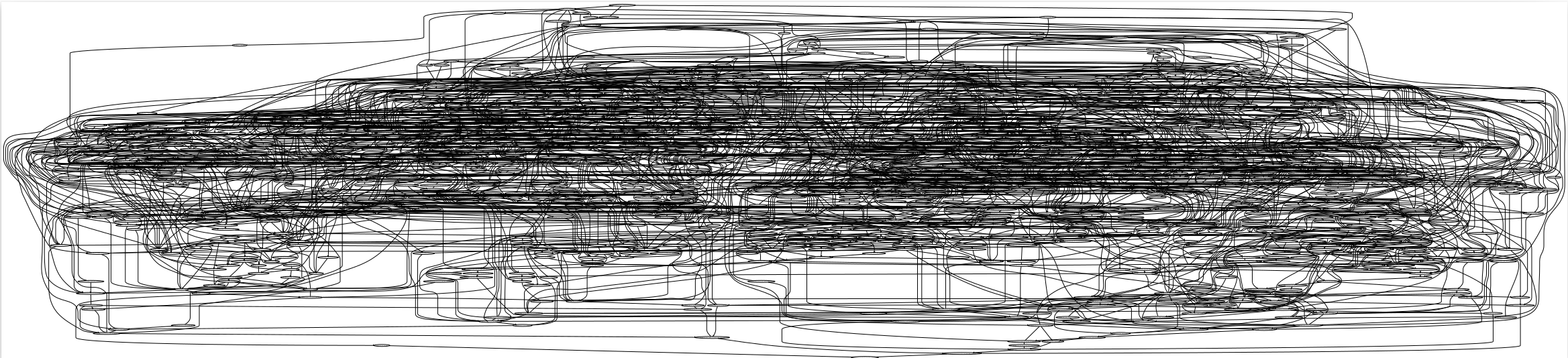

I had a go at making a full mathlib import graph visualization here:

https://eric-wieser.github.io/doc-gen/import-graph.html

Should this be part of the mathlib docs? Or should doc-gen just host the data file?

[Yaël Dillies]

Okay this is scary. Not sure I want to work on a monster...

[Yaël Dillies]

Did you remove the transitive imports? It might clutter quite a lot.

[Eric Wieser]

All I removed was core:init.default because that node is stupid

[Eric Wieser]

Fun fact; complete_lattice imports field: image.png

[Mario Carneiro]

This is a really nice visualization. It's really hard to make any kind of dependency graph visualization that doesn't look like a ball of yarn, but the interactivity helps a lot here

[Eric Wieser]

There's a reasonable amount of power to tweak the cost function along edges with the library I'm using, which helps a little with untangling the ball of yarn. The heuristic is mainly "edges strengths between files are exponential in the number of prefix components they share", which keeps the colors together (but also induces nasty oscillations in the really deep parts of mathlib!)

[Bryan Gin-ge Chen]

This is very well done, thanks!

I don't have a strong preference regarding where the graph itself should be hosted, but the mathlib stats page should definitely link to the graph.

Should this be part of the mathlib docs? Or should doc-gen just host the data file?

I'd just go with whatever is more convenient.

[Yaël Dillies]

I am once again asking you to get bored more often.

[Eric Wieser]

Let's just do the latter for now: leanprover-community/doc-gen#142

[Johan Commelin]

One idea might be to have a fish-eye lens (en/dis-abled via some checkbox) that can follow the mouse. Does sigma.js support that out of the box?

[Eric Wieser]

That would be cool, but I highly doubt it is built in, and writing custom GLSL shaders to achieve it is outside the scope of what seems worthwhile

[Eric Wieser]

I've moved the graph to a standalone repo at https://github.com/eric-wieser/mathlib-import-graph (now live at https://eric-wieser.github.io/mathlib-import-graph/).

This version now shows some information about how many files are selected, and node sizes reflect file sizes.

[Eric Wieser]

Bryan Gin-ge Chen said:

but the mathlib stats page should definitely link to the graph.

I made a PR at leanprover-community/leanprover-community.github.io#218. Feel free to adjust.

[Jireh Loreaux]

So, the import graph is awesome, but there are a few features I think it would be really nice to have. I find that as I have become more accustomed to the library, I have a vague sense of (parts of) the import graph in my head, but sometimes it would be nice to have more specific information. For example, it would be nice to have easy access to each of the following bits of information:

1. which files are direct children or parents of a given file, what about grandchildren and grandparents (i.e., transitive import distance = 2), etc.? I know that the first question can be answered by the docs, and therefore the second also, but the clicking and page loads can be tedious sometimes.
2. the (transitive) import subgraph of all ancestors, what about all descendents? I know you can see the former in the current import graph, but it would be cool if it could be re-displayed as its own subgraph, perhaps as a DAG.
3. The subgraph between a node and one of its descendents (again represented as a DAG). This would be especially handy for knowing whether I should try to compile locally, or just push it to the CI runners and wait for the oleans.

I have no idea how much work it would be to implement any of these things.

[Patrick Massot]

Are you familiar with the output of leanproject import-graph --help?

[Yaël Dillies]

For 1., you already have it in the mathlib docs.

[Patrick Massot]

Adding more functionalities to leanproject import-graph is very easy, you can use anything you fancy from https://networkx.org/

[Jireh Loreaux]

I had no idea leanproject import-graph existed, thanks!

[Eric Wieser]

Note that there is a gexf file hosted alongside the mathlib docs that contains the graph in a form importable by networkx; which is much faster than building it yourself if you just care about master
