Patrick Massot (Feb 14 2024 at 04:35):
I am looking for beta-tester for the new Lean blueprint command line tool. Documentation is available at https://github.com/PatrickMassot/leanblueprint/blob/client/README.md.
The short version is: in your favorite Lean project hosted on GitHub, you will be able to:
- click one button on GitHub to enable GitHub pages
- run
leanblueprint new
and answer a couple of question (accepting all default answers should be fine) - run
git push
- Wait for a couple of minutes (depending on the size of your project)
- Enjoy your API doc, blueprint pdf and blueprint web pages on github.io
I tested it on a project stub but I wouldn’t be surprised if there are bugs, especially with the continuous integration setup. That’s why I didn’t push to pypi yet.
Patrick Massot (Feb 14 2024 at 04:36):
Note that leanblueprint new
will add a couple of lines to your lakefile.lean
. However it won’t edit your existing GitHub workflow files, it will create a new one.
Patrick Massot (Feb 14 2024 at 04:39):
Of course all this requires a sane python setup.
Antoine Chambert-Loir (Feb 14 2024 at 08:25):
(9:20) pro-acl > pip install git+https://github.com/PatrickMassot/leanblueprint.git@client
Successfully built leanblueprint
Failed to build pygraphviz
Installing collected packages: smmap, pygraphviz, mdurl, plasTeX, markdown-it-py, gitdb, rich, plastexshowmore, plastexdepgraph, GitPython, rich-click, leanblueprint
Running setup.py install for pygraphviz ... error
Do you have an idea of what I could do?
Antoine Chambert-Loir (Feb 14 2024 at 08:28):
(I tried what is told on pygraphviz home page and it worked.)
Antoine Chambert-Loir (Feb 14 2024 at 08:45):
Now, lualatex web
tells me that blueprint.sty
is missing. (And leanblueprint pdf
failed as well.)
Kim Morrison (Feb 14 2024 at 10:53):
Patrick Massot said:
Note that
leanproject new
will add a couple of lines to yourlakefile.lean
. However it won’t edit your existing GitHub workflow files, it will create a new one.
leanproject new
here is presumably a Freudian slip of some kind. :-)
Patrick Massot (Feb 14 2024 at 12:48):
Muscle memory...
Patrick Massot (Feb 14 2024 at 12:50):
Antoine, could you list the content of the blueprint/src folder?
Patrick Massot (Feb 14 2024 at 13:57):
Sorry I read @Antoine Chambert-Loir ’s message too quickly. There is no issue on leanblueprint side, you simply tried to compile the web version using lualatex
, which is bound to fail. This does not explain why leanblueprint pdf
failed, I will need more information here. Could you try running latexmk
directly in the blueprint/src
folder?
Patrick Massot (Feb 14 2024 at 14:08):
@Sébastien Gouëzel and @Rémy Degenne I’d be especially interested in test on Windows. Note your still need to be able to install graphviz. But everything else is meant to be easier.
Julian Berman (Feb 14 2024 at 14:08):
@Antoine Chambert-Loir can you show the result of pip wheel -vv pygraphviz
Julian Berman (Feb 14 2024 at 14:09):
Patrick I'm going to try to help give you a single binary (a thing someone can download and just run which has all the dependencies), but in case I fail at it or get distracted make believe I didn't say that till later when I try to send a PR. (EDIT: Ugh, PyApp is less ready than I'd hoped, so I've put this on hold, though I think if I try again I'll get further.)
Antoine Chambert-Loir (Feb 14 2024 at 14:17):
Julian Berman said:
Antoine Chambert-Loir can you show the result of
pip wheel -vv pygraphviz
It's too long for zulip, so I sent it to you by email.
Antoine Chambert-Loir (Feb 14 2024 at 14:18):
Patrick Massot said:
Antoine, could you list the content of the blueprint/src folder?
(15:17) pro-acl > ls blueprint/src
content.tex extra_styles.css latexmkrc plastex.cfg
print.tex texput.log web.log web.paux
web.tex
Antoine Chambert-Loir (Feb 14 2024 at 14:18):
Patrick Massot said:
Sorry I read Antoine Chambert-Loir ’s message too quickly. There is no issue on leanblueprint side, you simply tried to compile the web version using
lualatex
, which is bound to fail. This does not explain whyleanblueprint pdf
failed, I will need more information here. Could you try runninglatexmk
directly in theblueprint/src
folder?
! Package fontspec Error: The font "Latin Modern Math" cannot be found.
For immediate help type H <return>.
...
l.26 \setmathfont
[range=\varnothing]{Asana-Math.otf}
Julian Berman (Feb 14 2024 at 14:22):
@Antoine Chambert-Loir oh, so that worked? You now have a .whl
file from that output. But your output above said Running setup.py install for pygraphviz ... error
which means it failed -- does the original pip install succeed now?
Julian Berman (Feb 14 2024 at 14:23):
Oh sorry, I too misunderstood the end of what you said, that after you ran what's on the pygraphviz page it did work. OK.
Patrick Massot (Feb 14 2024 at 16:03):
Thanks Antoine. So this issue has nothing to do with Lean or Python, your LaTeX install cannot find the Latin modern Math font.
Patrick Massot (Feb 14 2024 at 16:05):
I have no idea how you managed to install LaTeX and still not have this font. But it suggests I should remove this from the template and let people use old fonts.
Antoine Chambert-Loir (Feb 14 2024 at 16:05):
Julian Berman said:
Oh sorry, I too misunderstood the end of what you said, that after you ran what's on the pygraphviz page it did work. OK.
Yes, after the pip
command suggested by @Patrick Massot failed, I went to the pygraphviz
home page which suggested another way of installing it.
Patrick Massot (Feb 14 2024 at 16:05):
Actually I realized I wrote in the README that you can use pdflatex
if you are really nostalgic, but this is a lie.
Patrick Massot (Feb 14 2024 at 16:07):
I just pushed a commit removing all font selection commands from the template.
Antoine Chambert-Loir (Feb 14 2024 at 16:08):
Patrick Massot said:
Thanks Antoine. So this issue has nothing to do with Lean or Python, your LaTeX install cannot find the Latin modern Math font.
I understand that issue, but since I have a TeXLive 2023 install, with, in principle, all of it, I don't see how my LaTeX install could miss it.
Patrick Massot (Feb 14 2024 at 16:08):
And I removed any mention of pdflatex in the blueprint. There is no reason to mention this program in 2024 anyway.
Antoine Chambert-Loir (Feb 14 2024 at 16:09):
Patrick Massot said:
I have no idea how you managed to install LaTeX and still not have this font. But it suggests I should remove this from the template and let people use old fonts.
Antoine Chambert-Loir (Feb 14 2024 at 16:11):
Patrick Massot said:
And I removed any mention of pdflatex in the blueprint. There is no reason to mention this program in 2024 anyway.
really? why not?
Patrick Massot (Feb 14 2024 at 16:12):
I guess google will tell you how to install this font if you really want it. But the goal of the leanblueprint
command line tool is to make it easy to start a blueprint. Using this font is not a core requirement so I want to remove this friction point.
Patrick Massot (Feb 14 2024 at 16:13):
pdflatex
is very unicode unfriendly. It has been replaced by xelatex
and lualatex
a long time ago.
Antoine Chambert-Loir (Feb 14 2024 at 16:14):
Well, that looks like an overstatement. For example, arXiv does not accept lualatex.
Patrick Massot (Feb 14 2024 at 16:15):
arXiv is very much stuck in the 90’s, but there are good reasons for this. The challenge of being able to compile everything that was ever submitted there is huge. They still want to move on, but it’s very non-trivial.
Patrick Massot (Feb 14 2024 at 16:53):
I forgot to mention one important thing. When I created the blueprint plugin for the sphere eversion project, I did not setup any continuous integration for it, because I hate setting up CI. The blueprint was compiled locally and the result was pushed to the Lean repo. So the CI template that is now used by leanblueprint
is based on the work of other people. I don’t know the full story but I think @Yakov Pechersky is the pioneer who did this work for the Liquid tensor experiment. I’ll mention his name in the README, but I’d be happy to mention other names if someone knows the full story. I started my work here with the PFR version by @Yaël Dillies. Yaël, did you copy a CI file from somewhere else or did you start from scratch?
Yakov Pechersky (Feb 14 2024 at 16:54):
Ben Toner did a ton of work too!
Patrick Massot (Feb 14 2024 at 16:55):
This is the other name that I had in mind but somehow https://github.com/leanprover-community/liquid/commits/master/.github/workflows shows only one commit, so I got confused.
Yaël Dillies (Feb 14 2024 at 16:56):
I copied it from LeanAPAP, which inherited its CI setup from Con(NF), which @Sky Wilshaw and I set up together.
Yaël Dillies (Feb 14 2024 at 16:56):
In the port to Lean 4, it also acquired a few changes due to @Utensil Song
Yaël Dillies (Feb 14 2024 at 17:01):
In short: it's mostly Sky's original doing + a constant need on my part for more advanced features + Utensil's improvements during the port
Patrick Massot (Feb 14 2024 at 17:03):
Thanks. I pushed an updated README.
Patrick Massot (Feb 14 2024 at 17:03):
And I can add more later if more names appear.
Patrick Massot (Feb 14 2024 at 17:04):
By the way, contributions to that file are very welcome. I spend a lot of time randomly editing that file until it works, and I now hate CI setup even more.
Patrick Massot (Feb 14 2024 at 17:05):
One thing that would have made everything a lot easier is having a better docker image with both TeXlive and Lean (see this thread).
Patrick Massot (Feb 14 2024 at 17:06):
The docker image used by PFR and my template is based on Alpine Linux that is not supported by elan.
Patrick Massot (Feb 14 2024 at 17:07):
The nice thing to do would simply be to create a docker image with every dependency installed (TeXlive, elan and graphviz). But I have no idea how to do that and I cannot spend one more week learning about docker.
Sky Wilshaw (Feb 14 2024 at 17:08):
I did that for Con(NF), but it actually ended up being quite inconvenient. In particular, elan is fast to download+install and TeXlive is not. So if we run from a Docker image, we have to install TeXlive even if the build fails. In my use case, I wanted the build to fail early if I had any errors.
Sky Wilshaw (Feb 14 2024 at 17:10):
In any case, you might be able to use my old Dockerfile for inspiration.
Patrick Massot (Feb 14 2024 at 17:10):
I see. Indeed pulling the Docker image already takes quite a bit of time.
Patrick Massot (Feb 14 2024 at 17:11):
However this is relevant only for very small projects. Building the Lean project should very quickly become the bottleneck.
Sky Wilshaw (Feb 14 2024 at 17:16):
I actually experienced a halving of CI time once I removed leanblueprint and its dependencies. TeXlive really takes a while to install, and the TeX engine itself was quite slow. For context, Con(NF) is around 10k LOC.
Patrick Massot (Feb 14 2024 at 17:17):
What do you mean by “TeXlive really takes a while to install”? Do you mean pulling a docker image where it is installed or installing it in a default GitHub CI image that does not provide it?
Sky Wilshaw (Feb 14 2024 at 17:18):
Either of them. The bottleneck is network transfer speed.
Sky Wilshaw (Feb 14 2024 at 17:18):
They both take around an additional 2min30 in my experience when adding TeXlive.
Sky Wilshaw (Feb 14 2024 at 17:19):
For projects as big as mathlib, 2min30 is not much, but in my case it was enough to be concerned about.
Patrick Massot (Feb 14 2024 at 17:23):
Yes, 2 minutes is what I saw where I struggled with this. Yesterday it indeed drove me crazy, but I’m not too worried in real world conditions. And there is nothing we can do anyway. We need TeX for the pdf version.
Sky Wilshaw (Feb 14 2024 at 17:24):
It's probably possible to use a TeX distribution that doesn't download all the packages in advance, like Tectonic.
Sky Wilshaw (Feb 14 2024 at 17:25):
It uses XeLaTeX/TeXlive for everything under the hood, so would hopefully be compatible with whatever you're already using.
Patrick Massot (Feb 14 2024 at 17:27):
This sounds like an interesting thing to try.
Patrick Massot (Feb 14 2024 at 17:28):
Contributions are welcome :wink:
Patrick Massot (Feb 14 2024 at 17:28):
It’s all about modifying https://github.com/PatrickMassot/leanblueprint/blob/client/leanblueprint/templates/blueprint.yml
Utensil Song (Feb 16 2024 at 12:06):
I'm still recovering from a sickness since the new year and enjoying much less Lean time. leanblueprint CLI is something I wished for and will try it once I have some Lean time, for one, I haven't checked if it has everything I wished for and described in PatrickMassot/leanblueprint#6 yet.
Utensil Song (Feb 16 2024 at 12:06):
As for Tectonic, personally I've been using it here and the correspoding invoke
python script here. There are a few things to note, like leanblueprint depends on kpsewhich
via plastex, which requires a minimal TeX installation. Plastex also needs the bbl
file generated during PDF generation for the Bibliography and thus the --keep-intermediates
option of Tectonic.
In general, Tectonic has good compatibility with complicated LaTeX files as it reuse the LaTeX packages, only in an incremental way, but there are some caveats to pay attention to here and there, I can't recall all of them, but at least it doesn't play very well with minted and similar packages that requires executing external commands. That said, Tectonic alone works sufficiently well but it plays less nice with plastex which is the backbone of leanblueprint and assumes the existence of some parts of the LaTeX installation.
During pfr projects, I was polishing the CI process using the old fashioned TeXLive way and my own workflow also moved back to the old fashioned TeXLive way as a testbed and also because of a few caveats of Tectonic, for one, I wanted to include the generated GraphViz/dot file (of the dep_graph) in the PDF, but I had some trouble with Tectonic but not TeXLive.
Patrick Massot (Feb 16 2024 at 12:13):
I think it does everything mentioned in that issue except the changes to the produced pdf.
Patrick Massot (Feb 16 2024 at 12:14):
Thanks for the information about Tectonic. It doesn't seem worth the trouble.
Rémy Degenne (Feb 22 2024 at 17:43):
@Patrick Massot I finally tried the leanblueprint comand line tool. I am trying it on windows. I installed leanblueprint with pip, created a github repository, created a lean project, linked it to the repository and pushed, and finally activated page deployment.
Then when I use leanblueprint new
in my project folder (and accept all the default answers), I get this error:
'charmap' codec can't encode character '\u202f' in position 18: character maps to <undefined>
Any idea of what could be wrong?
Rémy Degenne (Feb 22 2024 at 18:12):
That character is apparently Narrow No-Break Space, and it definitely does not appear in the project name or path.
Rémy Degenne (Feb 22 2024 at 18:22):
And to be more complete, here is the full output of leanproject new:
$ leanblueprint new
Welcome to Lean blueprint
We will now ask some questions to configure your blueprint. All answers can ce
changed later by editing either the plastex.cfg file or the tex files.
General information about the project
Project title (My formalization project):
Lean library name [TestingLowerBounds] (½TestingLowerBounds):
Author (use \and to separate authors if needed) (RemyDegenne):
Url of github repository (https://github.com/RemyDegenne/testing-lower-bounds):
Url of project website (https://RemyDegenne.github.io/testing-lower-bounds):
'charmap' codec can't encode character '\u202f' in position 18: character maps to <undefined>
Patrick Massot (Feb 22 2024 at 18:37):
Thanks for testing this @Rémy Degenne. I pushed a fix
Patrick Massot (Feb 22 2024 at 18:37):
I have no idea why your computer doesn’t like this space but it was a typo anyway.
Patrick Massot (Feb 22 2024 at 18:38):
That sometimes happen because thin non-breakable space is mapped to shift-space on the keyboard layout I use and sometimes when typing fast they get inserted in the wrong place.
Rémy Degenne (Feb 22 2024 at 18:48):
Thanks! A new, similar error:
$ leanblueprint new
Welcome to Lean blueprint
We will now ask some questions to configure your blueprint. All answers can ce
changed later by editing either the plastex.cfg file or the tex files.
General information about the project
Project title (My formalization project): Testing lower bounds
Lean library name [TestingLowerBounds] (½TestingLowerBounds): TestingLowerBounds
Author (use \and to separate authors if needed) (RemyDegenne): Rémy Degenne
Url of github repository (https://github.com/RemyDegenne/testing-lower-bounds):
Url of project website (https://RemyDegenne.github.io/testing-lower-bounds):
Url of project API documentation
(https://RemyDegenne.github.io/testing-lower-bounds/docs):
LaTeX settings for the pdf version
LaTeX document class (report):
LaTeX paper (a4paper):
LaTeX settings for the web version
Show buttons allowing to show or hide all proofs [y/n] (y):
Table of contents depth (3): 2
Split file level (0 means each chapter gets a file, 1 means the same for
sections etc.) (0):
Per html file local table of contents depth (0 means there will be no local
table of contents) (0):
Configuration completed
Proceed with blueprint creation? [y/n]: y
content.tex
extra_styles.css
latexmkrc
plastex.cfg
print.tex
web.tex
'charmap' codec can't encode character '\U0001f389' in position 61: character maps to <undefined>
Rémy Degenne (Feb 22 2024 at 18:48):
This is the party popper character :tada:
Patrick Massot (Feb 22 2024 at 18:49):
Something is really wrong with your python installation.
Patrick Massot (Feb 22 2024 at 18:49):
Are you running python 2?
Patrick Massot (Feb 22 2024 at 18:49):
That one is not a typo.
Rémy Degenne (Feb 22 2024 at 18:49):
3.8
Rémy Degenne (Feb 22 2024 at 18:50):
I can try it in a new environment instead of with my global python and see if I get the same issue
Patrick Massot (Feb 22 2024 at 18:50):
It does not even appear in the source code, it is produced by the rich library. In the source code it appears as :tada:
.
Patrick Massot (Feb 22 2024 at 18:52):
Could you try in another shell?
Patrick Massot (Feb 22 2024 at 18:53):
I’m curious about this but I will remove it anyway. Since emoji is not essential and there will be other people using broken shells.
Rémy Degenne (Feb 22 2024 at 18:56):
This was in Git Bash. I just tried it in anaconda prompt from miniconda3 (also in a fresh environment) and everything worked perfectly
Rémy Degenne (Feb 22 2024 at 19:00):
Well, I got to the end of the leanblueprint new
command. Now CI complains when I push because I have unexpected tokens in lakefile.lean, but that's an other error.
meta if get_config? env = some "dev" then
require �doc-gen4� from git
"https://github.com/leanprover/doc-gen4" @ "main"
Patrick Massot (Feb 22 2024 at 19:03):
I really don’t know how you can have the patience to use Windows.
Patrick Massot (Feb 22 2024 at 19:03):
But I pushed a new commit trying to work around those issues.
Rémy Degenne (Feb 22 2024 at 19:06):
You asked me to test it on Windows :)
Otherwise I would have done it on linux (I learned my lesson last time).
Patrick Massot (Feb 22 2024 at 19:07):
I mean I don’t know how anyone can have the patience to use Windows. I am very grateful that you are doing this test on Windows.
Patrick Massot (Feb 22 2024 at 19:08):
For years the answer to this question was always the same: people had Windows because of video games. But this is no longer a criterion now that Steam and Proton exist.
Rémy Degenne (Feb 22 2024 at 20:31):
Summary of my most recent attempt, with references to the commits here: https://github.com/RemyDegenne/testing-lower-bounds/commits/master/
leanproject new
worked- I pushed the automatically generated commit (commit "Setup blueprint"). CI failed in build and told me to run
lake update checkdecls
- I did that and pushed (commit "lake update checkdecls"). CI failed and told me to run
lake update «doc-gen4»
- I did that but it did absolutely nothing. I remembered my problems with doc-gen from last time I tried to use it, went to the doc-gen page and read that I should use
lake -R -Kenv=dev update
- I ran that command and pushed (commit "lake -R -Kenv=dev update"). CI failed because of an unknown target
«TestingLowerBounds
. - After a while, I discovered that the project name was wrong in .github/workflows/blueprint.yml: it was written
«TestingLowerBounds
instead ofTestingLowerBounds
. I fixed it (commits "fix workflow?" and "fix workflow again") and the build step succedded in CI.
Now CI fails at the build blueprint step with error LaTeX Error: File 'macros/common.tex' not found.
: https://github.com/RemyDegenne/testing-lower-bounds/actions/runs/8010524168/job/21881676723
Rémy Degenne (Feb 22 2024 at 20:50):
I created manually macros/common.tex and macros/print.tex and CI succeeded.
Patrick Massot (Feb 22 2024 at 20:52):
All of this is horribly wrong. None of those steps should be necessary.
Patrick Massot (Feb 22 2024 at 20:54):
I will clone your repo and try to reproduce.
Rémy Degenne (Feb 22 2024 at 20:55):
And I'll uninstall leanblueprint, start in a new environment, make a completely new project, go to the step where I push the "Setup blueprint" commit and see what I get.
Patrick Massot (Feb 22 2024 at 20:57):
For instance you can see from https://github.com/RemyDegenne/testing-lower-bounds/commit/f890060c7e1f5871e2bab2c3253f73ad7e8828e3#diff-4e2751aec1a84ced68388517cb6f54720d3316f73ea035b8c559d9e028af0581R29 that leanblueprint failed to extract the lib name from the lakefile.
Patrick Massot (Feb 22 2024 at 21:02):
I fixed this bug but I really don’t understand why I didn’t hit it in my tests.
Patrick Massot (Feb 22 2024 at 21:04):
However I have no clue about why the macros files were not created on your side. I cannot reproduce that.
Rémy Degenne (Feb 22 2024 at 21:06):
I just tested with a new repository (before your fix I guess) and I have the same errors: project name and no macros/... files.
Patrick Massot (Feb 22 2024 at 21:06):
I have an idea, hold on.
Patrick Massot (Feb 22 2024 at 21:09):
Could you try again?
Rémy Degenne (Feb 22 2024 at 21:14):
https://github.com/RemyDegenne/lbp-test
Rémy Degenne (Feb 22 2024 at 21:15):
The project name looks good. The macros files are there. Let's wait for CI.
Rémy Degenne (Feb 22 2024 at 21:15):
Run ~/.elan/bin/lake -Kenv=dev build LbpTest
error: dependency 'checkdecls' not in manifest; use `lake update checkdecls` to add it
Error: Process completed with exit code 1.
Patrick Massot (Feb 22 2024 at 21:15):
CI failed
Patrick Massot (Feb 22 2024 at 21:15):
that stuff is so non-deterministic...
Patrick Massot (Feb 22 2024 at 21:16):
Everything worked two weeks ago.
Patrick Massot (Feb 22 2024 at 21:20):
The following bit is also puzzling:
Run curl https://raw.githubusercontent.com/leanprover/elan/master/elan-init.sh -sSf | sh -s -- -y --default-toolchain leanprover/lean4:4.5.0
curl https://raw.githubusercontent.com/leanprover/elan/master/elan-init.sh -sSf | sh -s -- -y --default-toolchain leanprover/lean4:4.5.0
shell: /usr/bin/bash -e {0}
info: downloading installer
info: Version 3.1.0 of elan is available! Use `elan self update` to update.
How can elan install itself and immediately ask for an upgrade?
Patrick Massot (Feb 22 2024 at 21:24):
I think I now why it was working in my test: I guess I had not lake manifest all in my test project before pushing the blueprint creation commit.
Patrick Massot (Feb 22 2024 at 21:25):
It almost works in your project now but it seems you forgot to enable GitHub pages.
Rémy Degenne (Feb 22 2024 at 21:26):
Yes I just did that and restarted CI
Patrick Massot (Feb 22 2024 at 21:26):
Patrick Massot said:
The following bit is also puzzling:
Run curl https://raw.githubusercontent.com/leanprover/elan/master/elan-init.sh -sSf | sh -s -- -y --default-toolchain leanprover/lean4:4.5.0 curl https://raw.githubusercontent.com/leanprover/elan/master/elan-init.sh -sSf | sh -s -- -y --default-toolchain leanprover/lean4:4.5.0 shell: /usr/bin/bash -e {0} info: downloading installer info: Version 3.1.0 of elan is available! Use `elan self update` to update.
How can elan install itself and immediately ask for an upgrade?
@Sebastian Ullrich do you have any idea what is happening above? This is in CI so we don’t have access to the machine to investigate.
Patrick Massot (Feb 22 2024 at 21:27):
In the mean time I modified the CI template.
Rémy Degenne (Feb 22 2024 at 21:28):
Rémy Degenne said:
Yes I just did that and restarted CI
Success.
Patrick Massot (Feb 22 2024 at 21:30):
I hope didn’t crash your windows with that emoji reaction…
Rémy Degenne (Feb 22 2024 at 21:30):
The fact that there is no index.html file is expected? It's something I have to do myself in my project?
Rémy Degenne (Feb 22 2024 at 21:31):
This is a 404: https://remydegenne.github.io/lbp-test/
But this is fine: https://remydegenne.github.io/lbp-test/docs/
Patrick Massot (Feb 22 2024 at 21:32):
Yes, this is expected, the main web page of your project is outside the scope of this tool.
Patrick Massot (Feb 22 2024 at 21:33):
https://remydegenne.github.io/lbp-test/blueprint/ is there.
Patrick Massot (Feb 22 2024 at 21:34):
I could offer the option of creating a minimal Jekyll site if people want this.
Rémy Degenne (Feb 22 2024 at 21:34):
In summary that last attempt worked, except that I had to do lake -R -Kenv=dev update
once after the leanblueprint new
step.
Rémy Degenne (Feb 22 2024 at 21:35):
Patrick Massot said:
I could offer the option of creating a minimal Jekyll site if people want this.
That would be very nice.
Patrick Massot (Feb 22 2024 at 21:35):
Clearly this has also been a popular copy-paste target in the community.
Patrick Massot (Feb 22 2024 at 21:36):
But it’s not systematic. For instance LTE and FLT-regular have no home page.
Patrick Massot (Feb 22 2024 at 21:38):
About the lake update command, I added it in CI but it would also make sense to run it locally after creating the blueprint if people want to check declarations locally.
Patrick Massot (Feb 22 2024 at 21:41):
The only thing that worries me is that the script would fail if you want to create the blueprint but do not have Lean installed. I don’t know whether this is a problem.
Rémy Degenne (Feb 22 2024 at 21:41):
Anyway thanks a lot for that new blueprint setup tool! It is very convenient.
Patrick Massot (Feb 22 2024 at 21:41):
I guess I could try and continue even if this command fails.
Patrick Massot (Feb 22 2024 at 21:42):
Thank you very for testing it! I worked a lot on it and I was pretty frustrated to see nobody testing it.
Patrick Massot (Feb 22 2024 at 22:02):
Patrick Massot said:
Sebastian Ullrich do you have any idea what is happening above? This is in CI so we don’t have access to the machine to investigate.
Thanks for the fix @Sebastian Ullrich !
Sebastian Ullrich (Feb 22 2024 at 22:07):
Yeah, I don't know how that one escaped my manual testing. Unfortunately, people who already installed/updated to elan 3.1.0 (i.e. in the last three days) may have to re-run the installer to update to the fixed 3.1.1
Patrick Massot (Feb 22 2024 at 22:11):
Hopefully there are not so many people. But we were lucky that this blueprint discussion got us looking closely at CI logs featuring a fresh install of elan.
Sébastien Gouëzel (Feb 23 2024 at 13:08):
I have finally some time to test it (on my fork of PFR), and I'll report as things go. Only hiccup for now:
Lean library name [PFR] (PFR): PFR_fork
wasn't accepted, apparently I have no choice here: I got the answer (in red)
Please select one of the available options
and the only choice that works as far as I can tell is PFR
.
Sébastien Gouëzel (Feb 23 2024 at 13:09):
Second hiccup: after a phase of configuration, downloading mathlib and everything, I get
Modify lakefile to allow building the documentation on GitHub? [y/n] (y):
Ok, lakefile is edited.
Configure continuous integration to compile blueprint? [y/n] (y):
GitHub workflow file created at C:\Users\Sebastien\Desktop\pfr\.github\workflows\blueprint.yml
Commit to git repository? [y/n]: y
Commit message (Setup blueprint):
Invalid Type: WindowsPath('C:/Users/Sebastien/Desktop/pfr/blueprint')
Sébastien Gouëzel (Feb 23 2024 at 13:10):
(the path is the right one, and there are no weird spaces in it that could spoil anything)
Sébastien Gouëzel (Feb 23 2024 at 13:16):
(and nothing was commited to the repository yet)
Michael Rothgang (Feb 23 2024 at 15:08):
Patrick Massot said:
Thank you very for testing it! I worked a lot on it and I was pretty frustrated to see nobody testing it.
For the record: my long list of Lean-related things I want to try includes testing this new tool by trying to port the sphere-eversion blueprint to the new style. But at the moment, finishing my PhD thesis takes priority. :-)
Patrick Massot (Feb 23 2024 at 16:09):
The Lean library name seems correct to me. Do you really have a Lean library whose lake name is PFR_fork?
Patrick Massot (Feb 23 2024 at 16:09):
I should probably not display this question when I find only one line in the lake file.
Patrick Massot (Feb 23 2024 at 16:11):
The WindowsPath thing is more worrying and I really don’t understand why it’s an issue for you but not for Rémy.
Patrick Massot (Feb 23 2024 at 16:12):
Michael, please work on your thesis. I’m already very worried about what will happen the next time I’ll see Chris.
Rémy Degenne (Feb 23 2024 at 16:17):
I don't have time to test today but if you identify some things that you would like me to try later (to find out the differences between my setup and the installation of Sébastien, or anything else), I can do that tomorrow.
Sébastien Gouëzel (Feb 23 2024 at 16:26):
Patrick Massot said:
The Lean library name seems correct to me. Do you really have a Lean library whose lake name is PFR_fork?
No, the name is correct. I understood the question as "do you want to change the current name of the Lean library to something else?", since otherwise I couldn't see the point of the question.
Sébastien Gouëzel (Feb 23 2024 at 16:27):
Patrick Massot said:
The WindowsPath thing is more worrying and I really don’t understand why it’s an issue for you but not for Rémy.
If you have troubleshooting instructions (to get a traceback or something), just tell me. I'm on Python 3.7 by the way, I don't know if it can make a difference.
Patrick Massot (Feb 23 2024 at 16:27):
There is a point only if your project have several libs, so I will remove the question when there is only one lib.
Patrick Massot (Feb 23 2024 at 16:28):
About the path error, could you try running leanblueprint with the --debug
option?
Sébastien Gouëzel (Feb 23 2024 at 16:31):
Sure. It gives me the following trace:
Traceback (most recent call last):
File "c:\program files\python37\lib\runpy.py", line 193, in _run_module_as_main
"__main__", mod_spec)
File "c:\program files\python37\lib\runpy.py", line 85, in _run_code
exec(code, run_globals)
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\Scripts\leanblueprint.exe\__main__.py", line 7, in <module>
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\site-packages\leanblueprint\client.py", line 417, in safe_cli handle_exception(err, str(err))
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\site-packages\leanblueprint\client.py", line 74, in handle_exception
raise exc
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\site-packages\leanblueprint\client.py", line 415, in safe_cli cli() # pylint: disable=no-value-for-parameter
File "c:\program files\python37\lib\site-packages\click\core.py", line 764, in __call__
return self.main(*args, **kwargs)
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\site-packages\rich_click\rich_command.py", line 126, in main
rv = self.invoke(ctx)
File "c:\program files\python37\lib\site-packages\click\core.py", line 1137, in invoke
return _process_result(sub_ctx.command.invoke(sub_ctx))
File "c:\program files\python37\lib\site-packages\click\core.py", line 956, in invoke
return ctx.invoke(self.callback, **ctx.params)
File "c:\program files\python37\lib\site-packages\click\core.py", line 555, in invoke
return callback(*args, **kwargs)
File "C:\Users\Sebastien\AppData\Roaming\Python\Python37\site-packages\leanblueprint\client.py", line 321, in new
repo.index.add([out_dir, lakefile_path, manifest_path] + workflow_files)
File "c:\program files\python37\lib\site-packages\git\index\base.py", line 734, in add
paths, entries = self._preprocess_add_items(items)
File "c:\program files\python37\lib\site-packages\git\index\base.py", line 580, in _preprocess_add_items
raise TypeError("Invalid Type: %r" % item)
TypeError: Invalid Type: WindowsPath('C:/Users/Sebastien/Desktop/pfr/blueprint')
Patrick Massot (Feb 23 2024 at 16:36):
Ok so this issue is purely internal to the GitPython library.
Patrick Massot (Feb 23 2024 at 16:36):
And indeed the difference with Rémy is probably a version mismatch.
Patrick Massot (Feb 23 2024 at 16:37):
I will try some naive workaround.
Patrick Massot (Feb 23 2024 at 16:44):
I pushed a new version
Sébastien Gouëzel (Feb 23 2024 at 16:44):
I have fixed it by updating gitpython. The old version was 3.1.0, and by updating to the last version (3.1.42) the issue disappeared.
Sébastien Gouëzel (Feb 23 2024 at 16:44):
So the best fix is probably to bump the requirements.
Patrick Massot (Feb 23 2024 at 16:44):
Oh no
Patrick Massot (Feb 23 2024 at 16:45):
I wanted you to test with your old version
Patrick Massot (Feb 23 2024 at 16:47):
The changelog of GitPython is a list of links instead of a searchable flat page… I really wonder what they were thinking about…
Sébastien Gouëzel (Feb 23 2024 at 16:53):
I've reverted to gitpython 3.1.0, so I can test the new version (I have just tested that the current one is failing as it used to).
Patrick Massot (Feb 23 2024 at 16:55):
Thanks. I’m curious to see if it works. In the mean time I found the first version of gitpython with the fix is probably 3.1.28.
Sébastien Gouëzel (Feb 23 2024 at 16:58):
It doesn't work (if I'm testing the right version -- is there a way to see if I haven't screwed up?)
Patrick Massot (Feb 23 2024 at 16:59):
Let’s not waste more time with this, I will bump the requirement.
Patrick Massot (Feb 23 2024 at 17:02):
I pushed a new version reverting the attempted workaround and requiring gitpython at least 3.1.28
Sébastien Gouëzel (Feb 23 2024 at 17:03):
In fact your fix was working, and I had screwed up (I had to uninstall leanblueprint and install it again to update it, maybe because the version number was the same?). Anyway, bumping the requirements is probably a better solution.
Sébastien Gouëzel (Feb 23 2024 at 17:06):
(And you forgot to push the requirement on gitpython :-)
Patrick Massot (Mar 02 2024 at 23:48):
I think that everybody that wanted to test the new blueprint client did it, so this is now the official release version. You can now install it using pip from pypi instead of GitHub: pip install leanblueprint
. The documentation can be found at https://pypi.org/project/leanblueprint/0.0.4/ which shows the README of the current release.
Patrick Massot (Mar 02 2024 at 23:50):
Note this release also includes the LaTeX macros to redefine the graph colors (see documentation).
Sébastien Gouëzel (Mar 03 2024 at 06:19):
Sébastien Gouëzel said:
(And you forgot to push the requirement on gitpython :-)
Did you bump the gitpython requirements?
Patrick Massot (Mar 03 2024 at 14:33):
Yes
Rémy Degenne (Mar 11 2024 at 09:05):
@Patrick Massot I have a issue (on both windows and linux) with the bibliography on the web version. leanblueprint pdf
generates the bibliography just fine, but leanblueprint web
complains about a missing web.bbl
(I have the same bibliography tex code for both versions). I see that I indeed have a print.bbl
but no web.bbl
(and if I rename the print one to web.bbl
then leanblueprint web
works fine).
In your client.py
file, I see that mk_pdf
has two lines of code that have something to do with bbl, and mk_web
does not have that code. Perhaps that's related?
Rémy Degenne (Mar 14 2024 at 15:39):
@Patrick Massot sorry to ping you again but I am not sure if you saw my last message above. That's not urgent at all though.
Patrick Massot (Mar 14 2024 at 15:57):
I’m sorry I didn’t answer. I saw it and created a GitHub issue, but this will need to wait a bit (at least past the ITP deadline).
Utensil Song (Mar 15 2024 at 02:26):
The issue created was PatrickMassot/leanblueprint#12
Some more context: this was solved in the previous inv
tasks.py
like this:
@task
def bp(ctx):
cwd = os.getcwd()
os.chdir(BP_DIR)
run('mkdir -p print && cd src && xelatex --shell-escape -output-directory=../print print.tex')
run('cd print && bibtex print.aux', env={'BIBINPUTS': '../src'})
run('cd src && xelatex --shell-escape -output-directory=../print print.tex')
run('cd src && xelatex --shell-escape -output-directory=../print print.tex')
run('cp print/print.bbl src/web.bbl')
os.chdir(cwd)
which runs LaTeX once, to generate metainfo for the bbl file, then uses bibtex
to generate a print.bbl
then copies it to web.bbl
to be consumed by plastex.
For anyone using tectonic
, this is done in a one-pass manner like this, but requires an extra --keep-intermediates
to keep the bbl file:
@task
def bptt(ctx):
"""
Build the blueprint PDF file and prepare src/web.bbl for task `web`
"""
cwd = os.getcwd()
os.chdir(BP_DIR)
run('mkdir -p print && cd src && tectonic -Z shell-escape-cwd=. --keep-intermediates --outdir ../print print.tex')
run('cp print/print.bbl src/web.bbl')
os.chdir(cwd)
Utensil Song (Mar 15 2024 at 02:29):

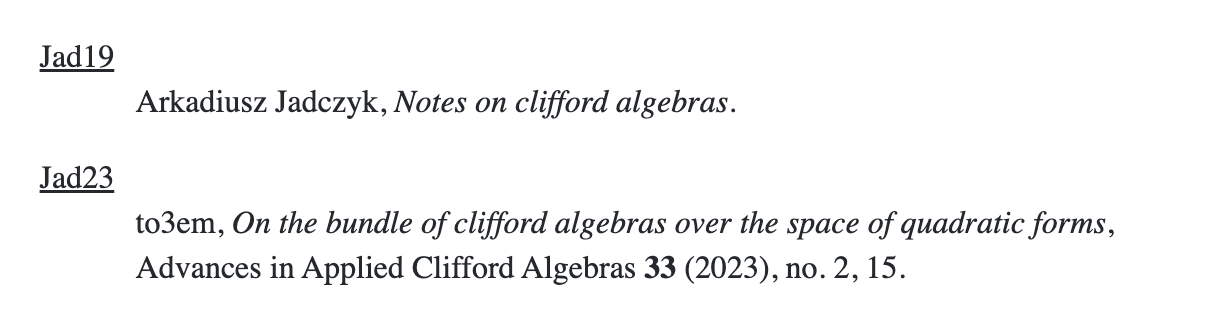

While we are at Bibliography, there is a related issue that I reported as plastex/plastex#348 : Same author in Bibliography is rendered to to3em
for style amsalpha
etc. for HTML.
Patrick Massot (Mar 20 2024 at 02:20):
The bbl file issue should be fixed in the latest release.
Rémy Degenne (Mar 20 2024 at 06:28):
Great, thanks!
Rémy Degenne (Mar 20 2024 at 10:15):
After your change, leanblueprint pdf
also generates a file web.bbl, and then leanblueprint web
succeeds. So locally everything is fine. However when I push to the git repository CI does not perform the pdf step, the bbl file is not generated and there is no bibliography on the website.
The solution is obviously to push the web.bbl file to the git repository, but would it be possible to generate it automatically in the CI "build blueprint" step?
Patrick Massot (Mar 20 2024 at 15:14):
Oh yes, I forgot CI, sorry.
Patrick Massot (Mar 20 2024 at 15:16):
Actually I’m confused. CI should do the right thing already.
Rémy Degenne (Mar 20 2024 at 15:24):
I may or may not have forgotten to update the leanblueprint files on the repository...
Rémy Degenne (Mar 20 2024 at 15:27):
I actually have no idea. Should I update something in my repository to make it change its leanblueprint version?
Rémy Degenne (Mar 20 2024 at 15:31):
I think I see why you say it should do the right thing: apparently CI does leanblueprint pdf
, contrary to what I was claiming.
pip install git+https://github.com/PatrickMassot/leanblueprint.git@client
leanblueprint pdf
mkdir docs
cp blueprint/print/print.pdf docs/blueprint.pdf
leanblueprint web
(and the answer to my last question seems to be no: CI will install the latest version)
Rémy Degenne (Mar 20 2024 at 15:32):
But I still don't get a bibliography unless I push web.bbl
Patrick Massot (Mar 20 2024 at 15:32):
Is this happening in a public repository?
Rémy Degenne (Mar 20 2024 at 15:32):
https://github.com/RemyDegenne/testing-lower-bounds
Patrick Massot (Mar 20 2024 at 15:40):
Ok, I understand. The workflow file still installs leanblueprint from the client branch that was my dev branch.
Patrick Massot (Mar 20 2024 at 15:42):
It means you created this blueprint during the testing phase of the client.
Patrick Massot (Mar 20 2024 at 15:43):
https://github.com/RemyDegenne/testing-lower-bounds/pull/1
Rémy Degenne (Mar 20 2024 at 15:44):
Thanks a lot!
Sam van G (Mar 27 2024 at 10:34):
Hello!
@María Inés de Frutos Fernández and I are installing Leanblueprint following the instructions here, but running the command pip install git+https://github.com/PatrickMassot/leanblueprint.git@client
only gets us to version 0.0.3. Is this wanted behavior?
I was able to get version 0.0.6 (which appears to be the most recent) by doing pip install git+https://github.com/PatrickMassot/leanblueprint.git
(so omitting the @client
at the end).
Rémy Degenne (Mar 27 2024 at 10:48):
These instructions are outdated. pip install leanblueprint
is the correct way to install.
Richard Osborn (Mar 27 2024 at 13:02):
For people on mac who want to install leanblueprint
globally via pipx
, you may need to set your environment variables so that pygraphviz
can locate the graphviz
installed by homebrew
.
export CFLAGS="-I$(brew --prefix graphviz)/include/"
export LDFLAGS="-L$(brew --prefix graphviz)/lib/"
pipx install leanblueprint
Patrick Massot (Mar 27 2024 at 13:44):
If some other Mac user confirms this is useful then I could add it to the documentation.
Utensil Song (Mar 27 2024 at 13:54):
See also https://pygraphviz.github.io/documentation/stable/install.html#homebrew which is essentially the same thing but a little verbose and not for pipx
.
Patrick Massot (Mar 27 2024 at 14:04):
Ok so I don’t need it if it’s already on pygraphviz website.
Richard Osborn (Mar 27 2024 at 14:20):
The issue is that pipx
creates a new virtual environment for leanblueprint
and installs pygraphviz
in that environment. I found that setting CFLAGS
and LDFLAGS
was the only simple way of getting pipx
to install pygraphviz
cleanly.
Rémy Degenne (Mar 29 2024 at 13:45):
@Patrick Massot I noticed an issue with the doc on the blueprint at https://remydegenne.github.io/testing-lower-bounds/blueprint/sect0002.html .
I have a latex file that references lemmas in two lean files, which at some point were TestingLowerBounds/FDiv.lean
and TestingLowerBound/CondFDiv.lean
. I moved both files to a subfolder, such that they are now TestingLowerBounds/FDiv/Basic.lean
and TestingLowerBounds/FDiv/CondFDiv.lean
.
Now when I click a "LEAN" link in the blueprint that is supposed to send me to the FDiv/Basic file it works fine (for example definition 1 from the page I linked above), but when I click a link to the FDiv/CondFDiv file I get a 404 because it tries to send me to the doc page for the now nonexistent TestingLowerBound/CondFDiv.lean
(try definition 2). I did not follow exactly what I did differently for one file or the other, and the issue might be present since many commits (I almost never click doc links). It is possible that I did not add anything to the blueprint referencing CondFDiv since the move? I am not sure.
Patrick Massot (Mar 29 2024 at 15:52):
I would say this is a doc-gen bug, not a blueprint bug. Look at https://remydegenne.github.io/testing-lower-bounds/docs/search.html?sitesearch=https%3A%2F%2Fleanprover-community.github.io%2Fmathlib4_docs&q=ProbabilityTheory.condFDiv
Patrick Massot (Mar 29 2024 at 15:52):
@Henrik Böving
Patrick Massot (Mar 29 2024 at 15:53):
The doc-gen search turns up deadlinks.
Henrik Böving (Mar 29 2024 at 16:01):
Just so I don't do this for nothing @Rémy Degenne have you build the documentation for this standalone and verified it doesnt work as well?
Henrik Böving (Mar 29 2024 at 16:09):
Okay doing it mysefl was quicker than waiting for the answer.
If I build the docs locally and do the search everything works so it is either a bug in your specific setup or something else @Rémy Degenne @Patrick Massot
Rémy Degenne (Mar 29 2024 at 16:10):
Thanks for checking. I have never built any doc anywhere myself and I am not even sure of what you asked me to do precisely, so that was certainly faster :)
Henrik Böving (Mar 29 2024 at 16:11):
Basically what is described here: https://github.com/leanprover/doc-gen4/?tab=readme-ov-file#usage
Rémy Degenne (Mar 29 2024 at 16:16):
Thanks. I am building the doc (but it's taking forever on my bad laptop) and will check if it's also fine for me in local.
Henrik Böving (Mar 29 2024 at 16:17):
You will need to wait until the counter reaches 3825 on the left hand side.
Rémy Degenne (Mar 29 2024 at 16:57):
The build finally finished, and I confirm that my local doc is fine. No dead link.
Patrick Massot (Mar 29 2024 at 17:26):
What did you do that is not done by https://github.com/RemyDegenne/testing-lower-bounds/blob/master/.github/workflows/blueprint.yml?
Rémy Degenne (Mar 29 2024 at 17:47):
I only did lake -R -Kenv=dev build TestingLowerBounds:docs
and then opened .lake/build/doc/, lanched a server and checked the same search as you did. Nothing more. The only difference I see with the "build documentation" step of that file is the -R flag in the build command. I don't know what that does of if it's relevant.
Sam van G (Mar 29 2024 at 18:12):
Following up on my message from earlier this week, and I think related to the above discussion: the CI for my blueprint is now working! @Floris van Doorn helped me with this yesterday.
Sam van G (Mar 29 2024 at 18:13):
The blueprint was already building locally immediately after installation, but the CI did not work. Even after adding -R to the same line in my blueprint.yml, the CI still failed, but with a different error, namely the dependency on doc-gen4 not being installed. We then also added this line.
I already forgot why we made these changes and why it works now, but perhaps Floris can explain that if needed.
Yaël Dillies (Mar 29 2024 at 18:27):
Rémy Degenne said:
I only did
lake -R -Kenv=dev build TestingLowerBounds:docs
and then opened .lake/build/doc/, lanched a server and checked the same search as you did. Nothing more. The only difference I see with the "build documentation" step of that file is the -R flag in the build command. I don't know what that does of if it's relevant.
Using the -K
flag without the -R
flag is always incorrect. So the fact you previously didn't include -R
seems relevant
Patrick Massot (Mar 29 2024 at 18:37):
Interesting. I certainly did not invent that line, so this error must be elsewhere. @Rémy Degenne could you try putting that -R
everywhere you see a -K
in your ci file?
Rémy Degenne (Mar 29 2024 at 18:42):
added. Let's wait for CI.
Rémy Degenne (Mar 29 2024 at 18:50):
nope, that did not fix the issue.
Patrick Massot (Mar 29 2024 at 18:51):
I really hate CI. I already spent countless hours shooting in the dark to try to get things to work. I really don’t know what to do.
Rémy Degenne (Mar 29 2024 at 19:38):
removing the two following lines from the previous "Cache mathlib docs" step fixed it, but caused a full 12min mathlib doc build
.lake/build/doc/declarations
!.lake/build/doc/declarations/declaration-data-TestingLowerBounds*
Rémy Degenne (Mar 29 2024 at 19:40):
I don't know what I am doing and I deleted the two last lines because they were after the one mentioning mathlib... I may have deleted a line too much. My guess was that something was cached that should have been built again
Rémy Degenne (Mar 29 2024 at 19:40):
and now I don't have a failing doc to test on :shrug:
Henrik Böving (Mar 29 2024 at 19:42):
The file that was most likely cached was declarations/declaration-data.bmp
which is an accumulation of all other files in declarations/
Patrick Massot (Mar 29 2024 at 19:52):
A caching issue definitely makes sense here.
Pietro Monticone (Mar 31 2024 at 00:58):
I've opened a PR fixing the issues mentioned above and a few typos in console.printed messages.
Rémy Degenne (Mar 31 2024 at 07:46):
You write that your PR fixes the issues mentioned above: which issues more precisely? Adding the -R flag everywhere as you do in the PR did not fix the doc issue I was having. I still don't really know how to fix that issue. I repaired my doc by not using the cache, but that's not a fix.
Sam van G (Mar 31 2024 at 08:20):
Rémy Degenne said:
removing the two following lines from the previous "Cache mathlib docs" step fixed it, but caused a full 12min mathlib doc build
Every time we execute the blueprint CI it now takes around 12 minutes (see here )... I thought that was normal but I understand from this remark it is not?
(Sorry for these probably obvious questions, I'm not at all familiar with leanblueprint
, neither with the intricacies of CI on Github.)
Rémy Degenne (Mar 31 2024 at 08:33):
See the "Build documentation" of the run here to compare with yours: https://github.com/RemyDegenne/testing-lower-bounds/actions/runs/8491768981/job/23264057251
I my case, nothing in Mathlib is listed there, and the doc build step is under two minutes.
Rémy Degenne (Mar 31 2024 at 08:37):
But your CI run looks significantly different that mine (with steps "update docgen4" and "update checkdecls" that mine does not have)... so it might be hard to find the significant difference.
My blueprint was created from an earlier leanblueprint version. I will update it to match what the latest leanblueprint before commenting more on that.
Rémy Degenne (Mar 31 2024 at 08:38):
Some of your runs are short, like this one, which does not build the mathlib doc: https://github.com/samvang/StoneDualityInLean/actions/runs/8478789948/job/23231715503
Rémy Degenne (Mar 31 2024 at 08:44):
In your slow CI runs, the update docgen4 step contains a download of a new mathlib cache, while in your fast runs it only decompresses files (no download). Then in the slow runs the mathlib doc is built again, while in the fast runs it is not. Sorry that's incorrect. I now saw an example where there is a download and still no mathlib doc build, here: https://github.com/samvang/StoneDualityInLean/actions/runs/8471321425/job/23211010792
Rémy Degenne (Mar 31 2024 at 08:51):
An unrelated remark on that CI: the mathlib cache files are downloaded and decompressed at "update docgen4", then decompressed again at "update checkdecls" and again at "get cache" (and that last step seems completely useless).
Yaël Dillies (Mar 31 2024 at 10:00):
If you write a detailed explanation to what's going wrong, I can try fixing your CI at some point this afternoon
Pietro Monticone (Mar 31 2024 at 14:07):
Rémy Degenne said:
You write that your PR fixes the issues mentioned above: which issues more precisely? Adding the -R flag everywhere as you do in the PR did not fix the doc issue I was having. I still don't really know how to fix that issue. I repaired my doc by not using the cache, but that's not a fix.
Oh, I see... I was having docs issues (see https://github.com/pitmonticone/FLT3/actions) and they were apparently solved by adding the -R flag everywhere. I erroneously thought they were the same docs issues, sorry.
Kevin Buzzard (Dec 01 2024 at 21:03):
I tried to set up leanblueprint after an OS upgrade to Ubuntu 24.04 broke it, and now I can only get it working with a hack. If I try installing with pip I get
buzzard@brutus:~/lean-projects/FLT$ pip3 install -U leanblueprint
error: externally-managed-environment
× This environment is externally managed
╰─> To install Python packages system-wide, try apt install
python3-xyz, where xyz is the package you are trying to
install.
If you wish to install a non-Debian-packaged Python package,
create a virtual environment using python3 -m venv path/to/venv.
Then use path/to/venv/bin/python and path/to/venv/bin/pip. Make
sure you have python3-full installed.
If you wish to install a non-Debian packaged Python application,
it may be easiest to use pipx install xyz, which will manage a
virtual environment for you. Make sure you have pipx installed.
See /usr/share/doc/python3.12/README.venv for more information.
note: If you believe this is a mistake, please contact your Python installation or OS distribution provider. You can override this, at the risk of breaking your Python installation or OS, by passing --break-system-packages.
hint: See PEP 668 for the detailed specification.
buzzard@brutus:~/lean-projects/FLT$
I tried installing with pipx
, which worked (I should say that I have no clue what I'm doing):
buzzard@brutus:~/lean-projects/FLT$ which leanblueprint
/home/buzzard/.local/bin/leanblueprint
buzzard@brutus:~/lean-projects/FLT$
and
buzzard@brutus:~/lean-projects/FLT$ file /home/buzzard/.local/bin/leanblueprint
/home/buzzard/.local/bin/leanblueprint: symbolic link to /home/buzzard/.local/pipx/venvs/leanblueprint/bin/leanblueprint
buzzard@brutus:~/lean-projects/FLT$
but now I have
buzzard@brutus:~/lean-projects/FLT$ which plastex
buzzard@brutus:~/lean-projects/FLT$ leanblueprint web
/bin/sh: 1: plastex: not found
Command 'plastex -c plastex.cfg web.tex' returned non-zero exit status 127.
buzzard@brutus:~/lean-projects/FLT$
I know which plastex
leanblueprint
wants though:
buzzard@brutus:~/lean-projects/FLT$ ls /home/buzzard/.local/pipx/venvs/leanblueprint/bin
activate activate.fish leanblueprint plastex python python3.12 unidecode
activate.csh Activate.ps1 markdown-it pygmentize python3 rich-click
buzzard@brutus:~/lean-projects/FLT$
so I can just add this directory to my $PATH
(the hack) and now everything seems to work, but I'm pretty sure this is not what I'm supposed to be doing. I'm pretty sure that on Ubuntu 22 I just had the package installed globally (this is a single-user machine) and plastex installed via apt. I just want a pain-free installation. Any recommendations?
PS after the hack, it works fine but I get a warning:
warning: ././.lake/packages/checkdecls/././Main.lean:17:17: `Array.concatMap` has been deprecated, use `Array.flatMap` instead
which I'm ignoring.
Ruben Van de Velde (Dec 01 2024 at 21:10):
Ugh, python packaging
Kevin Buzzard (Dec 01 2024 at 21:11):
My instinct is that I don't want a virtual environment but is this somehow inevitable? Is this like me saying "forget elan
, I just want one version of Lean installed and I want all my lean projects to work?"
Ruben Van de Velde (Dec 01 2024 at 21:12):
Yes, pretty much exactly (except maybe with "mathlib" more than "lean")
Ruben Van de Velde (Dec 01 2024 at 21:12):
Did pipx say what version of leanblueprint it installed?
Kevin Buzzard (Dec 01 2024 at 21:14):
buzzard@brutus:~/lean-projects/FLT$ pipx uninstall leanblueprint
uninstalled leanblueprint! ✨ 🌟 ✨
buzzard@brutus:~/lean-projects/FLT$ pipx install leanblueprint
⚠️ Note: leanblueprint was already on your PATH at
/home/buzzard/.local/pipx/venvs/leanblueprint/bin/leanblueprint
installed package leanblueprint 0.0.16, installed using Python 3.12.3
These apps are now globally available
- leanblueprint
done! ✨ 🌟 ✨
buzzard@brutus:~/lean-projects/FLT$
Kevin Buzzard (Dec 01 2024 at 21:15):
(oops, note the hack :-) )
Kevin Buzzard (Dec 01 2024 at 21:16):
I removed the dodgy dir from my PATH, uninstalled and reinstalled and I still get 0.0.16, without the note.
Ruben Van de Velde (Dec 01 2024 at 21:17):
Fascinating. https://github.com/PatrickMassot/leanblueprint is only up to 0.0.15
Henrik Böving (Dec 01 2024 at 21:21):
No it isn't https://github.com/PatrickMassot/leanblueprint/releases/tag/v0.0.16
Henrik Böving (Dec 01 2024 at 21:22):
The version number in that tar ball is right so it seems this was just never pushed to the master branch
Ruben Van de Velde (Dec 01 2024 at 21:22):
"This commit does not belong to any branch on this repository, and may belong to a fork outside of the repository."
Kevin Buzzard (Dec 01 2024 at 21:22):
Huh, I just noticed that my LaTeX install is also broken: if I compile my blueprint in VS Code using LaTeX workshop I get
...
Chapter 10.
[47] [48] [49] [50] [51] [52] [53]) (./chapter/biblio.tex (../print/print.bbl [54] [55]))) [56] (../print/print.aux) )
(see the transcript file for additional information)
Output written on ../print/print.pdf (57 pages).
SyncTeX written on ../print//print.synctex.gz.
Transcript written on ../print//print.log.
Latexmk: No log file was found, neither the expected one, 'print.log', nor one in '.'.
Latexmk: fls file doesn't appear to have been made.
Latexmk: Couldn't read log file 'print.log':
No such file or directory
----------------------
This message may duplicate earlier message.
Latexmk: Failure in processing file '/media/buzzard/ExternalSSD1TB/lean-projects/FLT/blueprint/src/print':
*LaTeX didn't generate the expected log file 'print.log'
No idea if this is related. NB the logfile is there:
buzzard@brutus:~/lean-projects/FLT/blueprint/print$ ls -l print.log
-rw-rw-r-- 1 buzzard buzzard 48087 Dec 1 21:19 print.log
(the date and time is now)
Julian Berman (Dec 01 2024 at 21:40):
This is the same issue you had a few weeks ago
Julian Berman (Dec 01 2024 at 21:40):
There are two things to check, neither of which I've done but I can
Julian Berman (Dec 01 2024 at 21:41):
One is probably that leanblueprint probably should not rely on having plastex on PATH
Julian Berman (Dec 01 2024 at 21:42):
It depends on it presumably, so it should simply invoke sys.executable. that's clearly not something you do as a user but I'll look later
Julian Berman (Dec 01 2024 at 21:42):
The second is to look how to get pipx to link two binaries from one install
Julian Berman (Dec 01 2024 at 21:42):
I used to know how to do this but uv is way better than pipx so I've now forgotten
Julian Berman (Dec 01 2024 at 21:43):
But you can either look that up in the pipx docs or tell me you can't find it and I'll go find it when I'm at a computer
Julian Berman (Dec 01 2024 at 21:44):
That latex error looks unrelated but I have no idea what it means yet
Ruben Van de Velde (Dec 01 2024 at 21:48):
Can you try pipx install --include-deps leanblueprint
?
Kevin Buzzard (Dec 01 2024 at 21:55):
buzzard@brutus:~/lean-projects/FLT$ pipx install --include-deps leanblueprint
⚠️ File exists at /home/buzzard/.local/bin/unidecode and points to
/home/buzzard/.local/bin/unidecode, not
/home/buzzard/.local/pipx/venvs/leanblueprint/bin/unidecode. Not
modifying.
⚠️ File exists at /home/buzzard/.local/bin/markdown-it and points to
/home/buzzard/.local/bin/markdown-it, not
/home/buzzard/.local/pipx/venvs/leanblueprint/bin/markdown-it. Not
modifying.
⚠️ File exists at /home/buzzard/.local/bin/pygmentize and points to
/home/buzzard/.local/bin/pygmentize, not
/home/buzzard/.local/pipx/venvs/leanblueprint/bin/pygmentize. Not
modifying.
⚠️ File exists at /home/buzzard/.local/bin/rich-click and points to
/home/buzzard/.local/bin/rich-click, not
/home/buzzard/.local/pipx/venvs/leanblueprint/bin/rich-click. Not
modifying.
installed package leanblueprint 0.0.16, installed using Python 3.12.3
These apps are now globally available
- leanblueprint
- plastex
- markdown-it (symlink missing or pointing to unexpected location)
- pygmentize (symlink missing or pointing to unexpected location)
- rich-click (symlink missing or pointing to unexpected location)
- unidecode (symlink missing or pointing to unexpected location)
done! ✨ 🌟 ✨
buzzard@brutus:~/lean-projects/FLT$
I have no memory of how I installed all that other stuff. My guess is that when I installed leanblueprint globally (when I was allowed to do that) all that other stuff got installed globally too.
Kevin Buzzard (Dec 01 2024 at 21:56):
Looks like it works but it might break randomly later on I guess?
Kevin Buzzard (Dec 01 2024 at 22:01):
buzzard@brutus:~/lean-projects/FLT$ ls -l /home/buzzard/.local/bin/unidecode /home/buzzard/.local/bin/markdown-it /home/buzzard/.local/bin/pygmentize /home/buzzard/.local/bin/rich-click
-rwxrwxr-x 1 buzzard buzzard 220 Apr 4 2024 /home/buzzard/.local/bin/markdown-it
-rwxrwxr-x 1 buzzard buzzard 215 Apr 4 2024 /home/buzzard/.local/bin/pygmentize
-rwxrwxr-x 1 buzzard buzzard 213 Apr 4 2024 /home/buzzard/.local/bin/rich-click
-rwxrwxr-x 1 buzzard buzzard 213 Nov 26 2023 /home/buzzard/.local/bin/unidecode
buzzard@brutus:~/lean-projects/FLT$
I suspect I installed leanblueprint globally in April but apparently unidecode was something I needed in 2023.
Ruben Van de Velde (Dec 01 2024 at 22:06):
In your position, I might delete the old ones and let pipx reinstall them
Kevin Buzzard (Dec 01 2024 at 22:20):
I now get some more exciting warnings:
buzzard@brutus:~/.local/bin$ mv markdown-it old_markdown-it
buzzard@brutus:~/.local/bin$ mv pygmentize old_pygmentize
buzzard@brutus:~/.local/bin$ mv rich-click old_rich-click
buzzard@brutus:~/.local/bin$ mv unidecode old_unidecode
buzzard@brutus:~/.local/bin$ cd
buzzard@brutus:~$ pipx uninstall leanblueprint
uninstalled leanblueprint! ✨ 🌟 ✨
buzzard@brutus:~$ pipx install --include-deps leanblueprint
⚠️ Note: markdown-it was already on your PATH at /usr/bin/markdown-it
⚠️ Note: pygmentize was already on your PATH at /usr/bin/pygmentize
installed package leanblueprint 0.0.16, installed using Python 3.12.3
These apps are now globally available
- leanblueprint
- markdown-it
- plastex
- pygmentize
- rich-click
- unidecode
done! ✨ 🌟 ✨
buzzard@brutus:~$
Kevin Buzzard (Dec 01 2024 at 22:21):
So apparently already my system was using a "random" pygmentize
depending on which of /usr/bin
and ~/.local/bin
was first in my $PATH
Kevin Buzzard (Dec 01 2024 at 22:22):
My instinct is that leanblueprint
is now likely to be working correctly, and there's a small chance that I broke something else, but given that I only use this machine to prove FLT and occasionally read emails / write references, I'll definitely take that. Thanks!
Kevin Buzzard (Dec 01 2024 at 22:24):
Having now dared to look at my PATH I see /home/buzzard/.local/bin
is on it three times :-)
Notification Bot (Dec 01 2024 at 22:37):
6 messages were moved from this topic to #FLT > VS Code LaTeX Workshop issue by Kevin Buzzard.
Patrick Massot (Dec 02 2024 at 08:53):
Sorry for the forgotten push to master that confused people. I just fixed that.
Patrick Massot (Dec 02 2024 at 08:53):
However the issue really seems to be that Kevin has installed half of the tool globally and half locally.
Kevin Buzzard (Dec 02 2024 at 08:54):
Because my OS will no longer let me install it globally for some (perhaps good) reason
Patrick Massot (Dec 02 2024 at 08:55):
It’s true that the leanblueprint client could work a little harder to avoid calling plastex
using the system. You can create an issue about that. But I’m pretty sure that having a saner python setups would bring other benefits. And I know it’s not so easy, especially when you have no interest in this and keep following random advice and forgetting what you did last time (which is perfectly legitimate). I wish this could be easier.
Kevin Buzzard (Dec 02 2024 at 08:57):
Yes you've very accurately summarised my situation.
Kevin Buzzard (Dec 02 2024 at 08:59):
Given that it's unlikely that I'll be doing any installing or uninstalling of anything on this computer other than dutifully bumping my OS to the next Ubuntu stable in a couple of years, I think we're safe for now! Thanks to everyone who helped!
Jon Eugster (Jan 22 2025 at 17:15):
So I just managed to get leanblueprint
running on macOS
after a few errors, the sequence of commands was something like this:
brew install graphviz
brew install python@3.12. # cannot be 3.13+
python3.12 -m venv .python
source .python/bin/activate
export C_INCLUDE_PATH=/opt/homebrew/include # maybe not necessary
export LIBRARY_PATH=/opt/homebrew/lib # maybe not necessary
pip install pygraphviz
pip install leanblueprint
leanblueprint all
One important point is that pygraphviz seems not run on python 3.13 (see here).
Just for reference, I guess
Last updated: May 02 2025 at 03:31 UTC
