Gaussian Elimination for Matrices

Stream: Is there code for X?

[Vivek Rajesh Joshi]

Has the Gaussian elimination algorithm been formalised in Mathlib4? Moogle isn't working for me, and I've gone through parts of Mathlib.LinearAlgebra.Matrix and haven't found any mention of it.

[Vivek Rajesh Joshi]

@Sébastien Gouëzel

[Kim Morrison]

Something a bit strange is going on here.

Somehow, Gaussian elimination doesn't seem to be particularly important, contrary to the impression that we give undergraduates. I've wondered for a long time why we haven't needed/wanted it.

There are a lot of different ways one might set up Gaussian elimination, in order to prove things about it. I would want to be pretty confident that whatever way someone choose was actually going to be useful in applications, rather than for its own sake. However, I still don't know what those applications would be. :-)

[Kim Morrison]

A long time ago I was trying to set up the theory of semisimple objects in excessive generality (I got derailed) but I did get as far as writing src#CategoryTheory.Biprod.gaussian, which is somewhat related.

[Siddhartha Gadgil]

Is there some proved algorithm for solving linear equations (or determining they have no solution)?

[Kim Morrison]

No, that's not really the sort of thing Mathlib goes for, historically!

[Kim Morrison]

(but also Gaussian elimination is not necessarily the choice once you're interested in algorithms per se!)

[Sébastien Gouëzel]

Still, see docs#Matrix.Pivot.exists_list_transvec_mul_diagonal_mul_list_transvec, which proves that any matrix is a product of elementary matrices and diagonal matrices. This is a version of Gaussian elimination, although it is formulated as an existence statement, not an algorithm. But the proof is algorithmic, and done via Gaussian elimination.

[Scott Carnahan]

Do we have Bruhat decomposition for GLn?

[Kim Morrison]

Scott Carnahan said:

Do we have Bruhat decomposition for GLn?

Pretty sure we don't.

[Ruben Van de Velde]

Speaking of Gaussian elimination, we got it in #12014 (Mathlib/Tactic/Linarith/SimplexAlgorithm/Gauss.lean)

[Shreyas Srinivas]

The pivot step of gaussian elimination is useful beyond just solving linear inequalitites.

[Jz Pan]

I think Gaussian elimination is also used in Hermite normal form and Smith normal form. They are useful, at least in designing number theory algorithms. For example, for number fields there is certain generalization of Smith normal form by Henri Cohen.

[Antoine Chambert-Loir]

Kim Morrison said:

Scott Carnahan said:

Do we have Bruhat decomposition for GLn?

Pretty sure we don't.

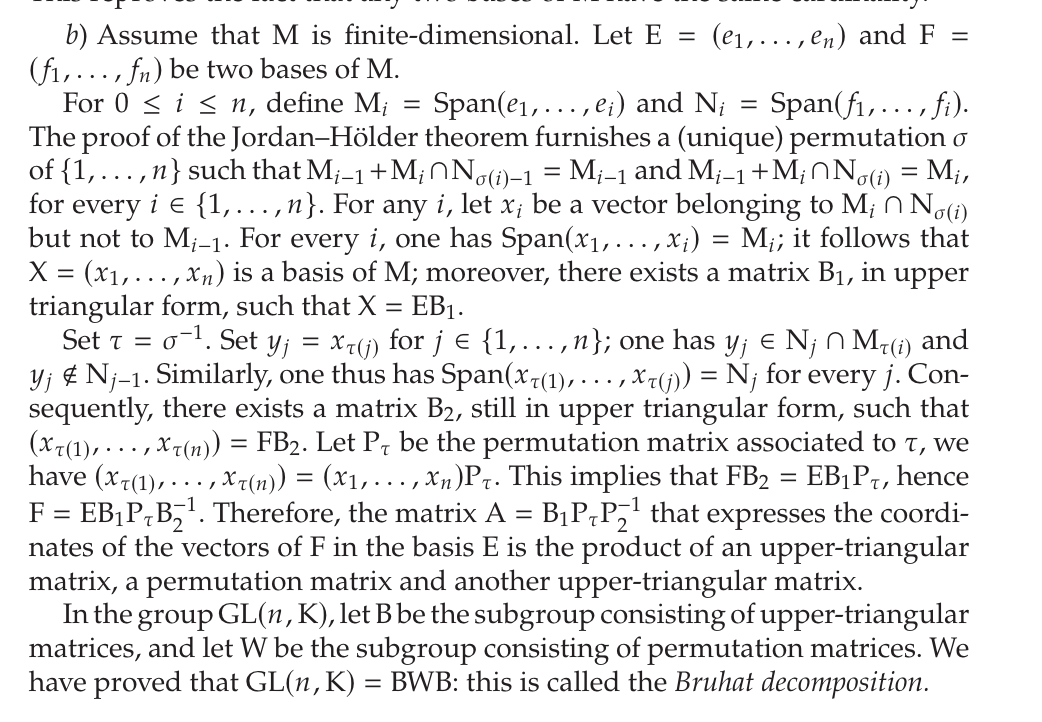

Do we have Jordan-Hölder? If formulated well-enough (two finite chains of modules with simple successive subquotients, one gets a bijection with explicit isomorphisms), then it implies the Bruhat decomposition for GL_n. (See my (Mostly) Commutative Algebra, remark 6.2.13 b), page 248.)

[Yaël Dillies]

Yes we have it. Grep for "Jordan-Hölder"

[Antoine Chambert-Loir]

Oh, that's great! Specifically, it is docs#CompositionSeries.jordan_holder
Regarding the existence of composition series, is there anything like modules of finite length? Presumably, they could be accessed using the the docs#JordanHolderLattice of submodules. (We need a notion of height/coheight in such a thing.)

[Yaël Dillies]

Is docs#height applicable here?

[Yves Jäckle]

Vivek Rajesh Joshi said:

Has the Gaussian elimination algorithm been formalised in Mathlib4? Moogle isn't working for me, and I've gone through parts of Mathlib.LinearAlgebra.Matrix and haven't found any mention of it.

I cam accross this repo once: https://github.com/jjcrawford/lean-gaussian-elimination
It's in Lean 3 and I can't judge if its complete.

[Dean Young]

Kim Morrison said:

Something a bit strange is going on here.

Somehow, Gaussian elimination doesn't seem to be particularly important, contrary to the impression that we give undergraduates. I've wondered for a long time why we haven't needed/wanted it.

There are a lot of different ways one might set up Gaussian elimination, in order to prove things about it. I would want to be pretty confident that whatever way someone choose was actually going to be useful in applications, rather than for its own sake. However, I still don't know what those applications would be. :-)

The factorization of a matrix into elementary matrices Eᵢ such that ||Eᵢ - Id|| < 1 is potentially the simplest way to prove that GLₙ (ℂ) is path connected, from which we can define the logarithm given a path up to homotopy.

I'd like to ask about SVD as well, since this is used a lot in applied math, in which we can save memory by keeping only the eigenvectors corresponding to the largest eigenvalues, discarding the other eigenvectors and eigenvalues. Maybe people haven't been interested since these benefits would only manifest in a situation which uses particular numbers.

[Yaël Dillies]

Dean Young said:

I'd like to ask about SVD

Are you aware of #6042?

[Dean Young]

@Yaël Dillies thanks for this, I hadn't seen it.

It also motivates the Gaussian elimination algorithm in how it uses the eigenvectors of A * A† - λI and A† * A - λI.

[Yaël Dillies]

If you want to help, #6042 needs a rewrite to deemphasize matrices and emphasize linear maps instead

[Dean Young]

Antoine Chambert-Loir said:

Oh, that's great! Specifically, it is docs#CompositionSeries.jordan_holder
Regarding the existence of composition series, is there anything like modules of finite length? Presumably, they could be accessed using the the docs#JordanHolderLattice of submodules. (We need a notion of height/coheight in such a thing.)

@Brendan Seamas Murphy also has an interesting Jordan-Holder to check out-

https://github.com/Shamrock-Frost/jordan-holder

[Dean Young]

Yaël Dillies said:

If you want to help, #6042 needs a rewrite to deemphasize matrices and emphasize linear maps instead

I think I don't fully understand how the computational tasks relate to the proofs here yet. Does Lean simply never do the sorts of tasks that Matlab does?

[Yaël Dillies]

No, not really, although that could eventually change

[Kim Morrison]

could should!

[Martin Dvořák]

Kim Morrison said:

Something a bit strange is going on here.

Somehow, Gaussian elimination doesn't seem to be particularly important, contrary to the impression that we give undergraduates. I've wondered for a long time why we haven't needed/wanted it.

There are a lot of different ways one might set up Gaussian elimination, in order to prove things about it. I would want to be pretty confident that whatever way someone choose was actually going to be useful in applications, rather than for its own sake. However, I still don't know what those applications would be. :-)

Here is something I don't know how to prove without Gaussian elimination:

import Mathlib

lemma Matrix.linearIndendent_iff_exists_submatrix_unit {X Y F : Type}
    [DecidableEq X] [Fintype X] [Field F]
    (A : Matrix X Y F) :
    LinearIndependent F A ↔ ∃ f : X → Y, IsUnit (A.submatrix id f) := by
  sorry

It surely can be done. I just don't know how.

[Junyan Xu]

Mathlib knows the row rank is equal to the column rank Matrix.rank_transpose and you probably have to use that for the forward direction. For the backward direction docs#LinearIndependent.of_comp should be enough (take the linear map to be LinearMap.funLeft F F f).

[Martin Dvořák]

It was a really good advice, thanks!
The proof is finished here
https://github.com/Ivan-Sergeyev/seymour/blob/2a05beaf5d044fb19e7473bb82ff347a8639e65e/Seymour/Matrix/LinearIndependence.lean#L42
modulo one lemma I don't know how to prove.

import Mathlib.Data.Matrix.Rank

variable {X Y F : Type} [DecidableEq X] [Fintype X] [DecidableEq Y] [Fintype Y] [Field F]

lemma Matrix.exists_submatrix_rank (A : Matrix X Y F) :
    ∃ r : Fin A.rank → X, (A.submatrix r id).rank = A.rank := by
  simp only [Matrix.rank_eq_finrank_span_row]
  sorry

Can anybody help please?

[Eric Wieser]

Ideally the answer would be "choose r as the obvious equivalence" and then "use a lemma about rank (Matrix.reindex _ _ _)

[Eric Wieser]

If that second lemma doesn't exist, please make a PR with it!

[Eric Wieser]

@loogle Matrix.reindex, Matrix.rank

[loogle]

:search: Matrix.rank_reindex

[Martin Dvořák]

How do you construct the obvious equivalence?

[Eric Wieser]

I misread A.rank as Fintype.card X

[Eric Wieser]

Either way, I created #22277 which might help

[Martin Dvořák]

Thank for the PR but I already have that a few lines higher in the same file.

[Rida Hamadani]

Martin Dvořák said:

It was a really good advice, thanks!
The proof is finished here
https://github.com/Ivan-Sergeyev/seymour/blob/2a05beaf5d044fb19e7473bb82ff347a8639e65e/Seymour/Matrix/LinearIndependence.lean#L42
modulo one lemma I don't know how to prove.

import Mathlib.Data.Matrix.Rank

variable {X Y F : Type} [DecidableEq X] [Fintype X] [DecidableEq Y] [Fintype Y] [Field F]

lemma Matrix.exists_submatrix_rank (A : Matrix X Y F) :
    ∃ r : Fin A.rank → X, (A.submatrix r id).rank = A.rank := by
  simp only [Matrix.rank_eq_finrank_span_row]
  sorry

Can anybody help please?

This follows from the fact that the rank of a matrix is equal to the number of its linearly independent rows. I really can't think of an informal proof that is not too annoying to formalize. The only proof I found depends on writing the matrix in row echelon form, and using the fact that (1) the first rank A rows of an row echelon form are linearly independent, and (2) the number of linearly independent rows in A is preserved during Gaussian elimination.

Has any of these prerequisites been formalized already? Does anybody have an idea that makes this more amenable for formalization?

[Peter Nelson]

From a smaller groupchat : the material in this file defines row and column bases (as sets), and proves the API that you need for this kind of thing. It shows that row bases exist , they are equicardinal with size equal to the rank of A, and they sets they index are minimal spanning the row space. Taking an arbitrary row-basis and putting it into bijection with Fin A.rank will prove the above lemma.

The proofs don't use Gaussian elimination, or anything fiddly, really. #22226 (which I think is ready to go but has been sitting on the queue for a while) is the first step towards PRing them.
