James Gallicchio (Feb 05 2025 at 20:20):

I am working on a project with bit vectors that are n+2-wide. I end up needing to prove the below bitvec goal, and I'm wondering if there is a less wordy way to prove it:

theorem Nat.lt_pow_of_exp_le {x base exp exp' : Nat}
  (base_pos : base > 0) (x_lt : x < base^exp') (exp_le : exp'  exp) : x < base^exp := by
  apply Nat.lt_of_lt_of_le x_lt
  exact Nat.pow_le_pow_of_le_right base_pos exp_le

example (n : Nat) : 0#(n+2)  3#(n+2) := by
  simp only [bv_toNat]
  rw [Nat.mod_eq_of_lt (by apply Nat.lt_pow_of_exp_le (exp' := 2) <;> simp)]
  rw [Nat.mod_eq_of_lt (by apply Nat.lt_pow_of_exp_le (exp' := 2) <;> simp)]
  decide

example (n : Nat) (h : n  2) : 0#n  3#n := by
  simp only [bv_toNat]
  rw [Nat.mod_eq_of_lt (by apply Nat.lt_pow_of_exp_le (exp' := 2) <;> simp [h])]
  rw [Nat.mod_eq_of_lt (by apply Nat.lt_pow_of_exp_le (exp' := 2) <;> simp [h])]
  decide

My project needs the first example but I'm also curious if there is a cleaner proof for the second example.

James Gallicchio (Feb 05 2025 at 20:25):

I do understand why the automation doesn't handle this case, but simultaneously I think my use case is quite reasonable. I could see others wanting to prove, for example, facts about bitvecs where n \mem [8,16,32,64] based on the fact that n >= 8.

James Gallicchio (Feb 05 2025 at 20:38):

I have golfed myself with a more specific lemma:

theorem BitVec.ofNat_eq_of_width_ge (minWidth : Nat) (hwidth : n  minWidth) (hi : i < 2^minWidth)
  : BitVec.ofNat n i = i, Nat.lt_of_lt_of_le hi (Nat.pow_le_pow_right (by decide) hwidth) := by
  simp only [bv_toNat]
  rw [Nat.mod_eq_of_lt]
  exact Nat.lt_of_lt_of_le hi (Nat.pow_le_pow_right (by decide) hwidth)

example (n : Nat) : 0#(n+2)  3#(n+2) := by
  simp [BitVec.ofNat_eq_of_width_ge (minWidth := 2)]

example (n : Nat) (h : n  2) : 0#n  3#n := by
  simp [h, BitVec.ofNat_eq_of_width_ge (minWidth := 2)]

James Gallicchio (Feb 05 2025 at 21:08):

Another category of goals I'm unsure how to prove:

example (n : Nat) : (3#(n+2))[0] = true := sorry
example (n : Nat) : (3#(n+2))[1] = true := sorry
example (n : Nat) (h : k >= 2) : (3#(n+2))[k] := sorry

Kim Morrison (Feb 06 2025 at 01:19):

How about

example (n : Nat) : 0#(n+2)  3#(n+2) := by
  simp only [bv_toNat]
  intro h
  replace h := congrArg (· % 4) h
  simp [Nat.pow_add] at h

Kim Morrison (Feb 06 2025 at 01:25):

And for the later ones:

example (n : Nat) : (3#(n+2))[0] = true := by
  simp [BitVec.getElem_eq_testBit_toNat]
example (n : Nat) : (3#(n+2))[1] = true := by
  simp [BitVec.getElem_eq_testBit_toNat]
  decide
example (n : Nat) (h : k >= 2) (h') : (3#(n+2))[k] = false :=
  match k, h with
  | k + 2, h => by
    simp [BitVec.getElem_eq_testBit_toNat]
    intro h'
    simp [Nat.testBit, Nat.add_comm k 2, Nat.shiftRight_add]

Kim Morrison (Feb 06 2025 at 01:25):

getElem_eq_testBit_toNat should be added to the bv_toNat simp set, probably many others.

Kim Morrison (Feb 06 2025 at 01:25):

Anyone interested in doing a survey of things that should be added to bv_toNat?

James Gallicchio (Feb 06 2025 at 03:51):

Kim Morrison|110087 said:

How about

example (n : Nat) : 0#(n+2)  3#(n+2) := by
  simp only [bv_toNat]
  intro h
  replace h := congrArg (· % 4) h
  simp [Nat.pow_add] at h

This is a cool proof, and not a route I expected! (I think the key lemma is Nat.mod_mul_left_mod in that simp?)

I am still a bit unsatisfied that the goal is not simp-able. If these were little-endian lists of bits, then list congruence lemmas would reduce this. Maybe there needs to be a second simp set for pushing bitvecs towards a list like normal form?

Kim Morrison (Feb 06 2025 at 06:04):

Yes, we're definitely missing API for converting to List Bool and to Vector Bool n.

James Gallicchio (Feb 06 2025 at 06:50):

I'm gonna post some more example goals for whoever in the future fills out that API. Thanks again for the help

James Gallicchio (Feb 06 2025 at 06:52):

example {a b : BitVec n} {i : Fin n} : a = b ^^^ (1 <<< i.val)  a[i]  b[i] := sorry
example {a b : BitVec n} {i : Fin n} : a = b ^^^ (1 <<< i.val)   i'  i, a[i'] = b[i'] := sorry

Kim Morrison (Feb 06 2025 at 09:47):

The first one is

attribute [bv_toNat] getElem_eq_testBit_toNat

example {a b : BitVec n} {i : Fin n} : a = b ^^^ (1 <<< i.val)  a[i]  b[i] := by
  rintro rfl
  simp [bv_toNat]

Kim Morrison (Feb 06 2025 at 09:53):

Ugly, but:

example {a b : BitVec n} {i : Fin n} : a = b ^^^ (1 <<< i.val)   i'  i, a[i'] = b[i'] := by
  rcases i with i, w
  rintro rfl i', w' h
  simp at h
  simp [bv_toNat]
  have : (decide (i  i') && Nat.testBit 1 (i' - i)) = false := by
    by_cases p : i  i'
    · have q : i' - i = i' - i - 1 + 1 := by omega
      rw [q]
      simp [p, Nat.testBit_succ]
    · simp [p]
  simp_all

Kim Morrison (Feb 06 2025 at 09:53):

I'll put these aside somewhere as "good examples of automation we want".

James Gallicchio (Feb 11 2025 at 22:13):

slightly different question within "simp automation for bitvec": have we settled on a simp normal form for BitVec.getLsbD?

  • There's a lemma BitVec.getLsbD_eq_getElem, which is not marked simp
  • The ext lemma for BitVec is eq_of_getLsbD_eq
  • A major lemma is getLsb_ofBoolListLE, and an equivalent getElem_ofBoolListLE is not defined yet. Weirdly, getElem_ofBoolListBE is defined, which subtracts the index from the length.

James Gallicchio (Feb 11 2025 at 22:14):

maybe I should check v4.17.0-rc1 to see what bitvec lemmas were added

Henrik Böving (Feb 11 2025 at 22:15):

getLsbD is its own simp normal form, the eq_getElem lemma does not always apply. There is work underway to provide getElem and getLsbD lemmas for basically all operations on BitVec and that goal is quite close

James Gallicchio (Feb 11 2025 at 22:22):

Ok. In that case, can we consider making the default ext lemma be getElem rather than getLsbD? At the moment I am doing lots of ext; simp [BitVec.getLsbD_eq_getElem, *] because getElem has cleaner lemmas.

Henrik Böving (Feb 11 2025 at 22:23):

that could be worth a consideration, I guess we could have an RFC about it as it would require at least some proof refactoring I would assume

James Gallicchio (Feb 11 2025 at 22:30):

Yeah. I'm not sure how to best refactor @[ext] lemmas, and I don't know who else is using BitVec aside from bv_decide and my project :big_smile: I'll wait to see if Kim and others have thoughts. Let me know if you need someone to write an RFC

Henrik Böving (Feb 11 2025 at 22:32):

BitVec is one of the more heavily used basic libraries right now. There is AWS projects that have used it (e.g. LNSym), there is academic groups like Tobias Grosser's team at Cambridge, the Lean SAIL project etc.

Kim Morrison (Feb 12 2025 at 04:05):

Yes, I agree that changing the default ext lemma would be preferable, as it results in a better proof obligation (the bound witness is already installed where you want to use it!) It would be disruptive to existing proofs. But it is not too late, and indeed the sooner we do it, the better.

I'd want to make sure @Tobias Grosser et al have a chance to express concerns, so an RFC would be great.

James Gallicchio (Feb 12 2025 at 05:08):

https://github.com/leanprover/lean4/issues/7045 :salute:

Tobias Grosser (Feb 12 2025 at 05:09):

Hi @James Gallicchio, I am in favor (assuming the patches don't expose any trouble).

Tobias Grosser (Feb 12 2025 at 05:10):

Let me give some historical context. In earlier variants of the BitVec library, we did not had the nice getElem interface. AFAIU @Kim Morrison started to push towards getElem and he added the initial interface definitions. At this point, large parts of the BitVec library already used the current ext lemma and most theorems for getExt were missing.

Tobias Grosser (Feb 12 2025 at 05:10):

Over the last month we added these theorems.

Tobias Grosser (Feb 12 2025 at 05:12):

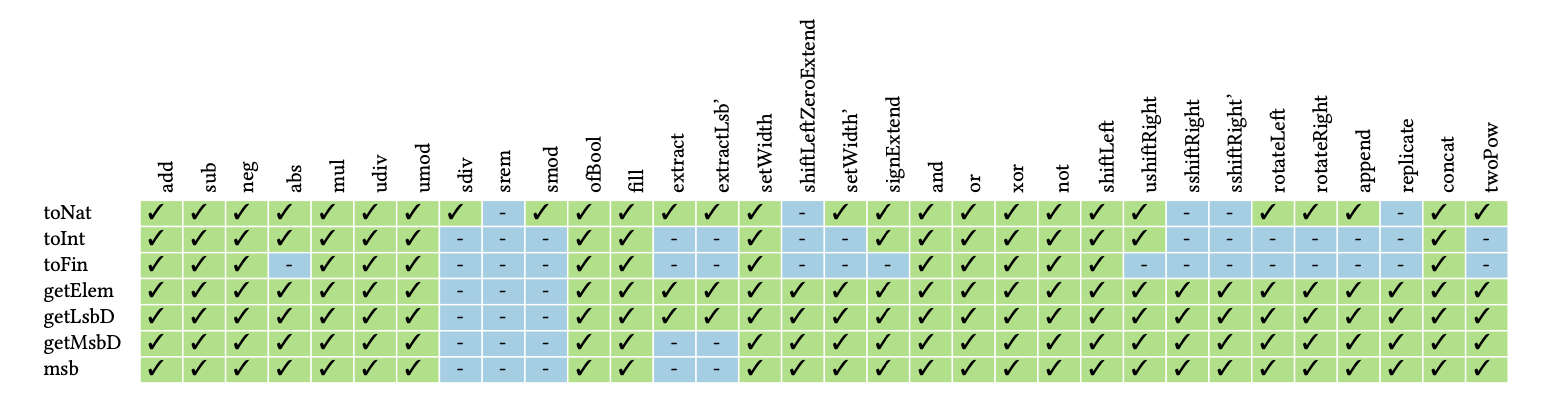

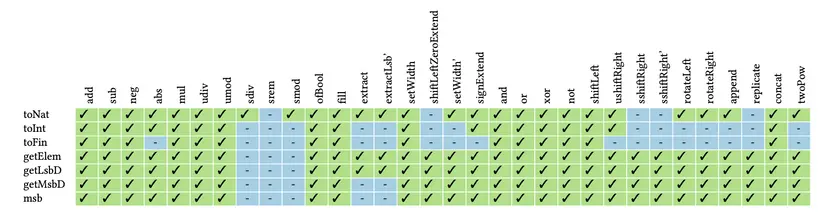

In fact, we were aiming to complete the following table:

Screenshot 2025-02-12 at 05.11.15.png

Tobias Grosser (Feb 12 2025 at 05:12):

Which was very blue at the beginning.

Tobias Grosser (Feb 12 2025 at 05:13):

And now looks already quite reasonable.

Tobias Grosser (Feb 12 2025 at 05:14):

As you see, the getElem row is meanwhile complete.

Tobias Grosser (Feb 12 2025 at 05:14):

Which means, I can probably rebase an old PR # feat: make getLsbD_eq_getElem a simp lemma #5498.

Tobias Grosser (Feb 12 2025 at 05:15):

And it should look a lot better.

James Gallicchio (Feb 12 2025 at 05:15):

awesome. is someone in FRO able to make the @[ext] change in time for v4.17?

Tobias Grosser (Feb 12 2025 at 05:16):

I can rebase the above PR today. If this PR goes through, I would be happy with the @[ext] change.

Tobias Grosser (Feb 12 2025 at 05:16):

And feel it would be rather trivial.

Tobias Grosser (Feb 12 2025 at 05:16):

On the other side, I remember one issue. Let me rebase the PR and see where we are standing.

Tobias Grosser (Feb 12 2025 at 05:18):

The remaining issue was that in some cases we ended up with a mix of getElem and non-get-elem variants, which led to inconsistencies that I could not resolve automatically. Give me 20' and I get back with the actual PR.

Markus Himmel (Feb 12 2025 at 05:54):

James Gallicchio said:

awesome. is someone in FRO able to make the @[ext] change in time for v4.17?

Since 4.17.0-rc1 is already out, changes merged today will not make it into the 4.17 release. Only fixes for ciritical issues discovered in 4.17.0-rc1 would make it into a 4.17.0-rc2, and if no such issues are found, 4.17.0 will be identical to 4.17.0-rc1.

Tobias Grosser (Feb 12 2025 at 07:19):

https://github.com/leanprover/lean4/pull/5498 is updated.

Tobias Grosser (Feb 12 2025 at 07:19):

This took a bit longer than 20', but I would hope the CI will be green.

Tobias Grosser (Feb 12 2025 at 07:20):

This is a first pass aimed at getting the proofs through. I would like to go over them carefully to polish the proofs and also to get a better feeling of what the diff looks like.

Tobias Grosser (Feb 12 2025 at 07:22):

The overall diff does look quite reasonable already, with only a handful of proofs requiring some more thoughts. The getElem API being now complete (with the exception of 1-2 cases) made the change reasonably easy.

Tobias Grosser (Feb 12 2025 at 07:29):

I now have a busy work-day, but I will do another round of polishing latest tomorrow morning.

Tobias Grosser (Feb 15 2025 at 06:58):

OK, https://github.com/leanprover/lean4/pull/5498 is ready for review.

Tobias Grosser (Feb 15 2025 at 06:59):

@Kim Morrison, @James Gallicchio, feedback is much appreciated.

Kim Morrison (Feb 16 2025 at 00:05):

:merge:'d. Thanks for this, this is a nice improvement.

Tobias Grosser (Feb 16 2025 at 00:05):

Thank you for your fast and careful review.

James Gallicchio (Feb 18 2025 at 06:13):

This is low priority-- but I just noticed the RHS in BitVec.getElem_cons is not in terms of getElem. Instead we can match the new getElem_append:

@[simp] theorem BitVec.getElem_cons {b : Bool} {n} {x : BitVec n} {i : Nat} (h : i < n + 1) :
    (cons b x)[i] = if is_msb : i = n then b else x[i]'(by omega) := by
  split
  · simp [cons, getElem_append, *]
  · have : i < n := by omega
    simp [cons, getElem_append, *]

I apologize for not catching this during review :frowning:

Tobias Grosser (Feb 18 2025 at 07:24):

Thank you for pointing this out. As the big merge has now happened I will review the getElem functions to ensure their rhs actually uses getElem.

Tobias Grosser (Feb 22 2025 at 15:33):

https://github.com/leanprover/lean4/pull/7187

Tobias Grosser (Feb 22 2025 at 15:33):

Sorry for the delay.

Tobias Grosser (Feb 22 2025 at 15:34):

I have one minor question, maybe someone has an idea.

Tobias Grosser (Feb 24 2025 at 19:01):

This is now resolved.
