Insertion Sort

Stream: lean4

[Marcus Rossel]

In lean4#5092 @Kim Morrison adds an implementation of merge sort. As future work, they state that insertion sort could be used for small chunks to improve performance.
It seems that insertion sort is currently only defined in Mathlib. Would it be a reasonable PR to move this implementation to core Lean first?

[Kim Morrison]

I think I'd want to have evidence first that it really can speed things up.

[Kim Morrison]

If you're interested in looking at sorting, working out a clean way to get rid of Mathlib's mergeSort', and allowing us to proceed with just one version, would be great.

The basic problem I didn't solve is that in Mathlib we want a Prop valued comparator, while in Lean we want a Bool valued comparator.

[Kim Morrison]

I am open to changing the design of mergeSort in the Lean repository to help resolve this difficulty.

[Kim Morrison]

(Also, I'm not actually sure that Mathlib's insertion stable is stable sort --- you do have to do the comparison in the right way for this to happen. It might, but I haven't looked. Proving/making-it-true in Mathlib's insertion sort would be another helpful project.)

[Eric Wieser]

Kim Morrison said:

The basic problem I didn't solve is that in Mathlib we want a Prop valued comparator, while in Lean we want a Bool valued comparator.

Is this a cosmetic choice or a performance one? I realize it's consistent with docs#List.filter taking a bool-valued predicate, but the general pattern is at odds with mathlib

[Eric Wieser]

(what it's not consistent with is how if works, not that I would advocate for bif to become the default!)

[Eric Wieser]

docs#List.mergeSort is still the mathlib one; I guess the primed one is currently in a bump branch.

[Marcus Rossel]

Kim Morrison said:

(Also, I'm not actually sure that Mathlib's insertion stable is stable sort --- you do have to do the comparison in the right way for this to happen. It might, but I haven't looked. Proving/making-it-true in Mathlib's insertion sort would be another helpful project.)

At a glance, it looks like Mathlib's insertion sort is stable. For merge sort you defined three notions of stability:

-- 1
theorem mergeSort_enum {l : List α} : (mergeSort (enumLE le) (l.enum)).map (·.2) = mergeSort le l

-- 2
theorem mergeSort_stable
    (trans : ∀ (a b c : α), le a b → le b c → le a c)
    (total : ∀ (a b : α), !le a b → le b a) :
    ∀ {c : List α} (_ : c.Pairwise le) (_ : c <+ l),
    c <+ mergeSort le l

-- 3
theorem mergeSort_stable_pair
    (trans : ∀ (a b c : α), le a b → le b c → le a c)
    (total : ∀ (a b : α), !le a b → le b a)
    (hab : le a b) (h : [a, b] <+ l) : [a, b] <+ mergeSort le l

Is one of these variants preferred, or is prudent to just show all three? (I guess at least 3 follows easily from 2)

[Marcus Rossel]

#16065

[Marcus Rossel]

Kim Morrison said:

I think I'd want to have evidence first that it really can speed things up.

On that note, I've been trying out what happens when we just naively unroll the cases for list lengths 2 and 3:

Partially Unrolled Merge Sort

def mergeSortTR₃ (le : α → α → Bool) (l : List α) : List α :=
  run ⟨l, rfl⟩
where
  run : {n : Nat} → { l : List α // l.length = n } → List α
  | 0, ⟨[], _⟩     => []
  | 1, ⟨[a], _⟩    => [a]
  | 2, ⟨[a, b], _⟩ => if le a b then [a, b] else [b, a]
  | 3, xs          => sort₃ xs
  | _ + 4, xs      =>
    let (l, r) := splitRevInTwo xs
    mergeTR le (run' l) (run r)
  run' : {n : Nat} → { l : List α // l.length = n } → List α
  | 0, ⟨[], _⟩     => []
  | 1, ⟨[a], _⟩    => [a]
  | 2, ⟨[b, a], _⟩ => if le a b then [a, b] else [b, a]
  | 3, xs          => sort₃' xs
  | _ + 4, xs      =>
    let (l, r) := splitRevInTwo' xs
    mergeTR le (run' r) (run l)
  sort₃ : { l : List α // l.length = 3 } → List α
    | ⟨l@([a, b, c]), _⟩ =>
      match le a b, le b c with
      | true,  true  => l
      | false, false => [c, b, a]
      | true,  false => if le a c then [a, c, b] else [c, a, b]
      | false, true  => if le a c then [b, a, c] else [b, c, a]
  sort₃' : { l : List α // l.length = 3 } → List α
    | ⟨l@([c, b, a]), _⟩ =>
      match le a b, le b c with
      | true,  true  => l
      | false, false => [c, b, a]
      | true,  false => if le a c then [a, c, b] else [c, a, b]
      | false, true  => if le a c then [b, a, c] else [b, c, a]

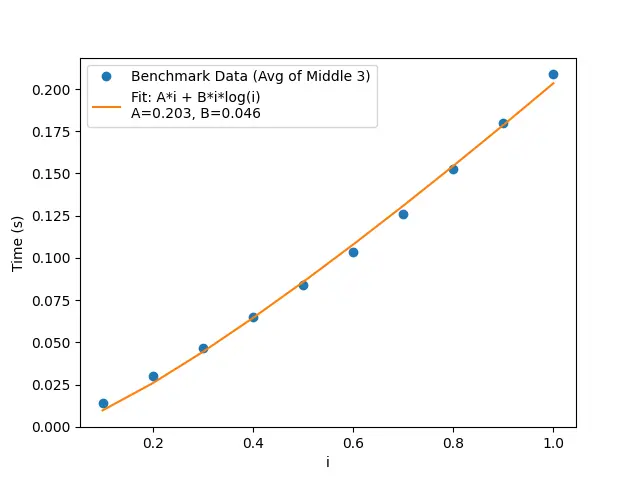

Using lean4/tests/bench/mergeSort/bench.py I get the following for the current version of mergeSort:

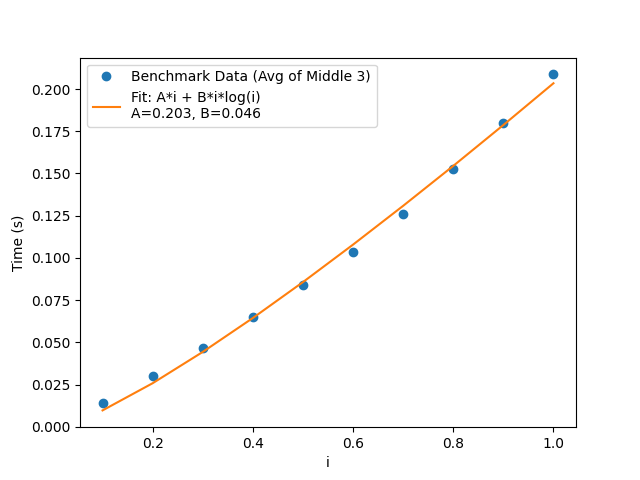

... and the following for the version with unrolling:


So I guess that means there's no use in even trying to use insertion sort as a subroutine?

[Kevin Buzzard]

What does i indicate in the graph?

[Henrik Böving]

Kevin Buzzard said:

What does i indicate in the graph?

normalized length of the list afaict from the script

[Marcus Rossel]

Kim Morrison said:

working out a clean way to get rid of Mathlib's mergeSort', and allowing us to proceed with just one version, would be great.

I've opened a separate topic for this.

[Kim Morrison]

@Marcus Rossel, two things:

1. Be very cautious about believing the results from the benchmarking script. It is only sampling over 1 order of magnitude variation in list sizes, and trying to fit a function involving log. Dubious statistics. :-)
2. Those results are suspiciously close --- have you run a benchmark that actually gave obviously different results? Might be worth doing so just to be sure you are really benchmarking the change you've made. (You have to rebuild all of lean, and be using the rebuilt toolchain?)

[Kim Morrison]

And a third thing:

• Great that you're looking into this!

[Marcus Rossel]

@Kim Morrison I am indeed running into some sort of issue. My results don't even show a difference in performance between plain mergeSort and mergeSortTR₂. I performed the following steps:

1. Build the current version of Lean using:

cmake --preset release
make -C build/release -j$(nproc || sysctl -n hw.logicalcpu)

2. Run the test script for k from 1 to 30 with three runs per k:

cd tests/bench/mergeSort

for k in $(seq 1 30);
do
echo "$k: $(lake exec mergeSort $k), $(lake exec mergeSort $k), $(lake exec mergeSort $k)"
done

3. Remove the @[csimp] tag from mergeSort_eq_mergeSortTR₂.

4. Rebuild Lean, again using:

cmake --preset release
make -C build/release -j$(nproc || sysctl -n hw.logicalcpu)

5. Again run the test script for k from 1 to 30 with three runs per k:

for k in $(seq 1 30);
do
echo "$k: $(lake exec mergeSort $k), $(lake exec mergeSort $k), $(lake exec mergeSort $k)"
done

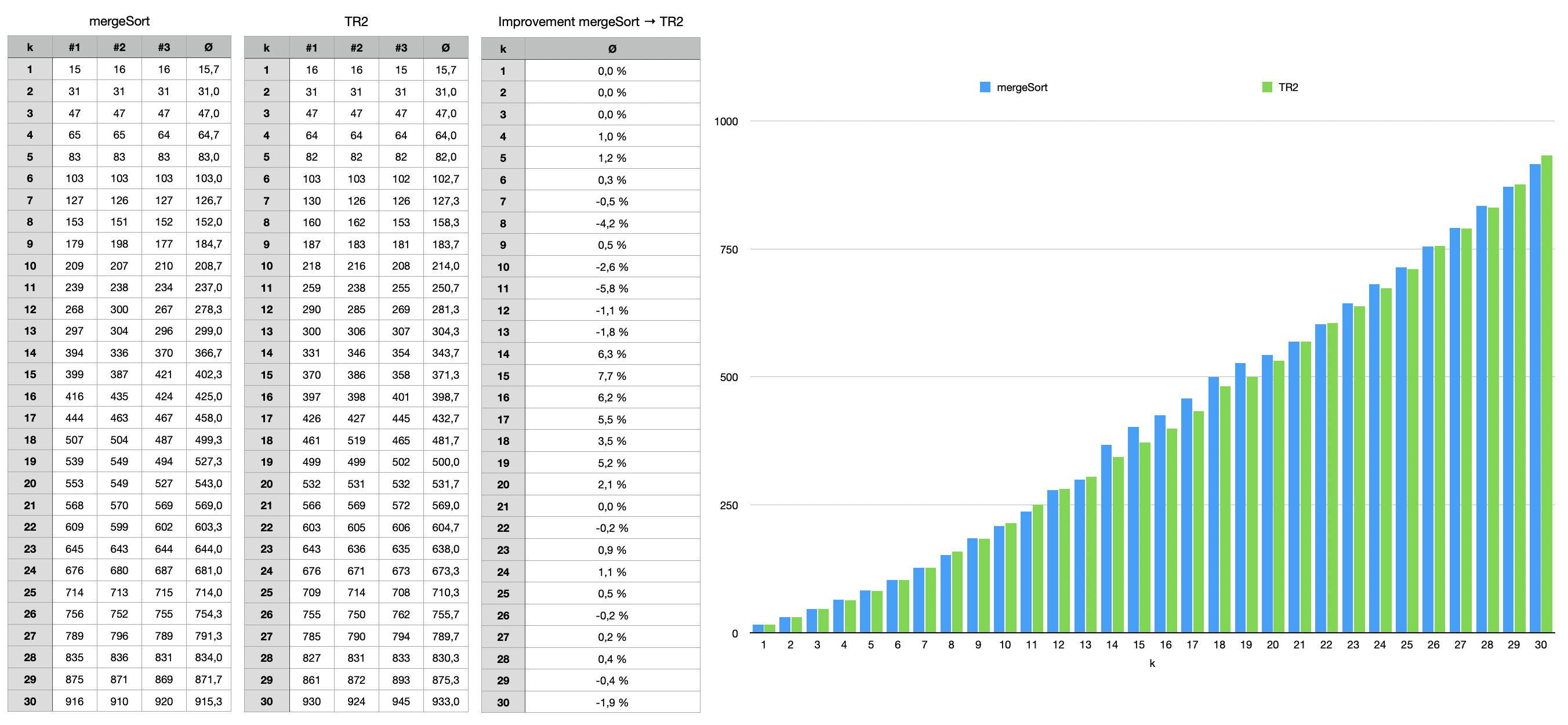

These are the results, so something must be off.

[Kim Morrison]

@Marcus Rossel have you set up your toolchain correctly? I suspect you are running the default toolchain provided by elan, rather than the one you have just built. Try this:

elan toolchain link lean4 build/release/stage1
elan override set lean4

[Marcus Rossel]

Kim Morrison said:

Marcus Rossel have you set up your toolchain correctly?

That might be it - I only ran:

elan toolchain link lean4 build/release/stage1
elan toolchain link lean4-stage0 build/release/stage0

[Marcus Rossel]

Oooooh. The benchmark file explicitly uses mergeSortTR₂ :see_no_evil::

def main (args : List String) : IO Unit := do
  let k := 5
  let some arg := args[0]? | throw <| IO.userError s!"specify length of test data in multiples of 10^{k}"
  let some i := arg.toNat? | throw <| IO.userError s!"specify length of test data in multiples of 10^{k}"
  let n := i * (10^k)
  let i₁ := List.iota n
  let i₂ := List.range n
  let i₃ ← (List.range n).mapM (fun _ => IO.rand 0 1000)
  let i₄ := (List.range (i * (10^(k-3)))).bind (fun k => (k * 1000 + 1) :: (k * 1000) :: List.range' (k * 1000 + 2) 998)
  let start ← IO.monoMsNow
  let o₁ := (mergeSortTR₂ (· ≤ ·) i₁).length == n
  let o₂ := (mergeSortTR₂ (· ≤ ·) i₂).length == n
  let o₃ := (mergeSortTR₂ (· ≤ ·) i₃).length == n
  let o₄ := (mergeSortTR₂ (· ≤ ·) i₄).length == n
  IO.println (((← IO.monoMsNow) - start)/4)
  IO.Process.exit (if o₁ && o₂ && o₃ && o₄ then 0 else 1)

[Marcus Rossel]

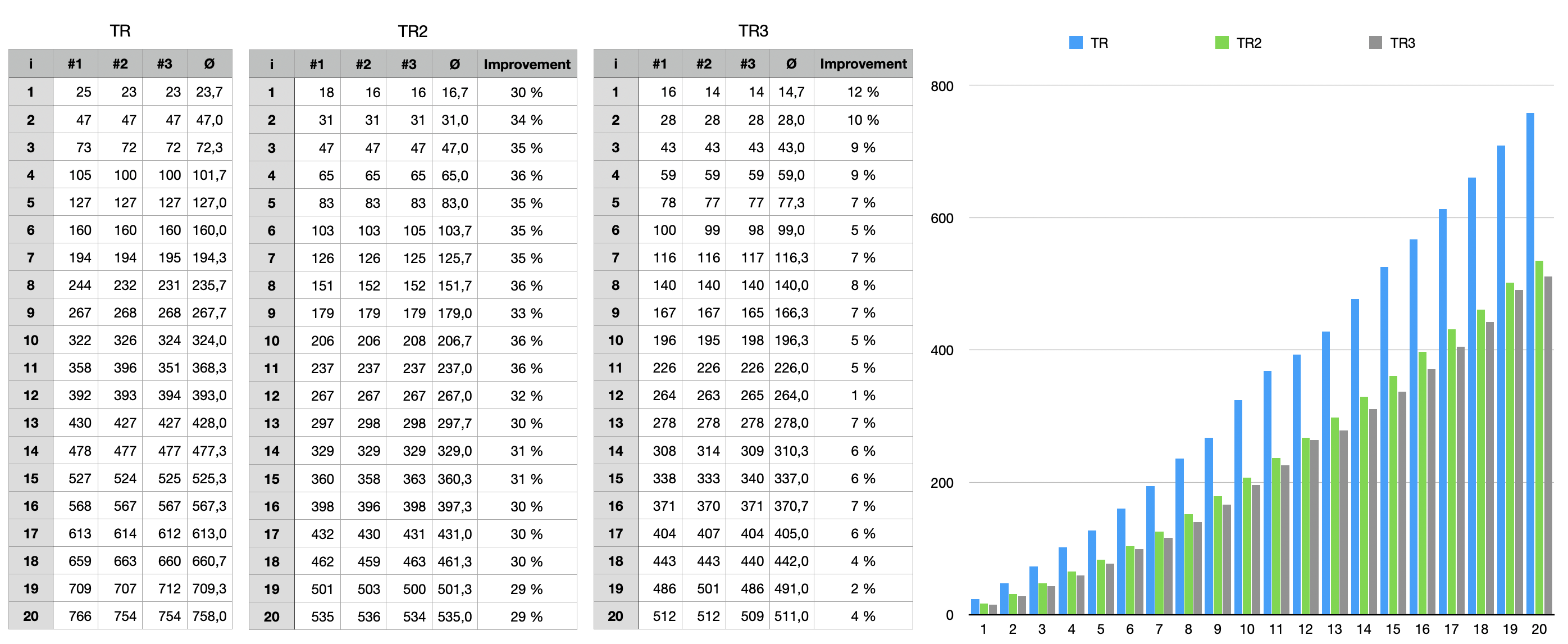

So we do get an improvement!

[Marcus Rossel]

---

Using the following (temporary) insertion sort based implementation of mergeSortTR₃:

Implementation

def mergeSortTR₃ (cutoff : Nat) (le : α → α → Bool) (l : List α) : List α :=
  run ⟨l, rfl⟩
where
  run : {n : Nat} → { l : List α // l.length = n } → List α
  | 0, ⟨[], _⟩    => []
  | 1, ⟨[a], _⟩   => [a]
  | n@(_ + 2), xs =>
    if n < cutoff then
      insertionSort xs
    else
      let (l, r) := splitRevInTwo xs
      mergeTR le (run' l) (run r)
  run' : {n : Nat} → { l : List α // l.length = n } → List α
  | 0, ⟨[], _⟩  => []
  | 1, ⟨[a], _⟩ => [a]
  | n@(_ + 2), xs   =>
    if n < cutoff then
      insertionSort' xs
    else
      let (l, r) := splitRevInTwo' xs
      mergeTR le (run' r) (run l)
  insertionSort : List α → List α
  | []     => []
  | [a]    => [a]
  | b :: l => orderedInsert b (insertionSort l)
  orderedInsert (a : α) : List α → List α
  | []          => [a]
  | bl@(b :: l) => if le a b then a :: bl else b :: orderedInsert a l
  insertionSort' : List α → List α
  | []     => []
  | [a]    => [a]
  | b :: l => orderedInsert' b (insertionSort' l)
  orderedInsert' (a : α) : List α → List α
  | []          => [a]
  | bl@(b :: l) => if le a b then b :: orderedInsert a l else a :: bl -- TODO: Is this correct?

... I tried different cutoffs for when a list should be sorted by insertion sort. The following cutoffs yield the following average speedups over mergeSortTR₂ when benchmarked with the above script and 1 <= i <= 30:

Cutoff    16 |  20 |    24 |    28 |    32 |    40
Speedup  10% | 11% | 12.4% | 12.2% | 12.5% | 12.3%

So first of all it seems to be worth it. And second, I'm guessing the sweet spot will end up somewhere around 30.

[Jannis Limperg]

The optimal cutoff also depends on the type of objects stored, right? Because if the comparison is expensive, insertion sort is relatively more costly. So perhaps this should be tested with something like lists of short strings.

[François G. Dorais]

An one-line tail-recursive insertion sort is described at batteries#569

[Kim Morrison]

All I know here is that Java at one point in time used a cut-off of 8. Copying someone seems a good approach here relative to trying to work this out from first principles. :-)

[Marcus Rossel]

On that note, does this now justify moving insertionSort into core, or should the insertion sorty part of mergeSort remain an implementation detail?

[Kim Morrison]

I think I'm not ready to add the extra complexity of the insertion sort layer to the implementation in Lean.
