Fine-tuning bors batching

Stream: mathlib4

[Yaël Dillies]

Batches like https://mathlib-bors-ca18eefec4cb.herokuapp.com/batches/1584 seemed doomed to fail due to their large size. What do people think of setting max_batch_size to something like 16 to avoid huge useless runs?

[Yaël Dillies]

This is probably day-dreaming, but is it possible in any way to use the logs of a failed bors batch (or mergify batch, when that becomes a thing) in order to influence how it's going to be rebatched? Put another way: A human can reasonably quickly read a log file and tell Johan what he should take off the queue; Is it possible to replace both the human and Johan by a script?

[Yaël Dillies]

It's pretty easy to list which files a PR touches and also pretty easy to calculate the import graph on master, so a somewhat naive criterion for rebatching is something like "Put all the PRs that don't touch anything upstream of the failing file in a batch. Split the other ones into two equal size batches.". A more refined version could be looking at the distance along the import graph (either in terms of file, or using a more complicated metric like the number of declarations used) and make sure the "didn't touch the file" batch does not contain more than 1/3 of the batch's PRs.

[Yaël Dillies]

Because it's the trend, one could even think of training an AI to recognise what PR is causing the build error and single it out...

[Eric Rodriguez]

Mergify doesn't support something like this, I don't think. I mean, at the current moment we seem to have enough CI capacity - are you finding yourself waiting a lot?

[Yaël Dillies]

No, but @Johan Commelin and I were discussing how our CI setup is going to scale up. As we seem to be able to get Mergify to (slowly) work on features we need, it seems good to think through what our future needs will be.

[Patrick Massot]

Yaël Dillies said:

Put another way: A human can reasonably quickly read a log file and tell Johan what he should take off the queue; Is it possible to replace both the human and Johan by a script?

Johan, it seems you’ve been promoted(?) to non-human.

[Ruben Van de Velde]

There's another 25-PR batch running, let's see... Nope, it's failed

[Ruben Van de Velde]

Which is to say, I agree

[Johan Commelin]

Where should we put this setting? In some file? Or via some web UI?

[Yaël Dillies]

Johan certainly provides super-human reviewing!

[Eric Rodriguez]

I've not heard anything from mergify wrt making the merge behaviour as we desire - am I out of the loop here?

[Eric Rodriguez]

bors.toml, I'd assume

[Yaël Dillies]

Here: https://leanprover.zulipchat.com/#narrow/stream/113488-general/topic/bors.20going.20away.3F/near/412131903

[Johan Commelin]

#10499

[Johan Commelin]

Here is a short analysis of what happened:

- Start: 2/13/2024, 13:28:55
- End:   2/14/2024, 08:40:06
- Duration: 19 hours 11 minutes
- Total number of merged PRs: 87
- Total batches: 26
- Total canceled batches: 1 (size 13)
- Total failed batches: 12
- Total succeeded batches: 13
- Average batch size: 10.3 = 268/26
- Average successful batch size: 6.7 = 87/13
- Average failed batch size: 14 = 168/12

[Johan Commelin]

Which means that under this kind of stress, bors is about 3.5x more efficient than a linear merging strategy.

[Ruben Van de Velde]

Probably would even have been a bit more efficient if we'd had the batch size limit in place earlier

[Yaël Dillies]

I conjecture that a max batch size of 16 is still too big

[Johan Commelin]

Distribution of failed batch sizes

#
####
#######
########
##########
############
##############
################
###################
#########################
##########################
##########################

[Anne Baanen]

I would like to try a numerical argument for batch sizes. Let's simulate some options and see what looks best!

#!/usr/bin/env python3

import statistics
import random

def make_batch(batch_size, failure_mode):
    # Let's assume each PR in the batch has an independent chance of `prob_failure` to contain an error.
    prob_failure = failure_mode
    return [random.uniform(0, 1) > prob_failure for i in range(0, batch_size)]

def batch_succeeds(batch):
    # A batch succeeds if all PRs in this batch succeed.
    # We assume there are no inter-batch failures.
    return all(batch)

def split_on_failure(batch):
    # If a single PR fails, we drop it from the queue.
    # Otherwise we bisect the batch.
    if len(batch) <= 1:
        return []
    else:
        return [batch[:len(batch)//2], batch[len(batch)//2:]]

def simulate(batch_size, failure_mode, attempts):
    # Return the number of merged PRs during a number of build attempts.
    # We'll assume each batch is filled up to `batch_size`,
    # and the way a batch may fail is controlled by `failure_mode`.

    successes = 0
    queue = []
    for i in range(0, attempts):
        if not queue:
            queue = [make_batch(batch_size, failure_mode)]
        # We'll operate the queue like a true queue, which seems to be Bors' model.
        batch, *queue = queue
        if batch_succeeds(batch):
            successes += len(batch)
        else:
            queue.extend(split_on_failure(batch))

    return successes

if __name__ == "__main__":
    for batch_size in range(1, 32+1):
        for prob_failure in [0, 0.01, 0.02, 0.05, 0.1, 0.2, 0.5]:
            outcomes = [simulate(batch_size, prob_failure, 1000) for i in range(0, 100)]
            print(batch_size, prob_failure, statistics.mean(outcomes), statistics.median(outcomes), statistics.stdev(outcomes))

[Mario Carneiro]

I'm using the following simulation:

sim[p_, \[Mu]_, n_] := (
  fails = {};
  successes = {};
  bisect[vals_] :=
   With[{ok = And @@ vals},
    If[ok, AppendTo[successes, Length[vals]],
     AppendTo[fails, Length[vals]];
     If[! ok && Length[vals] > 1,
      With[{b = Floor[Length[vals]/2]}, bisect[vals[[;; b]]];
       bisect[vals[[b + 1 ;;]]]]]]];
  Do[bisect[
    Table[RandomReal[] <= p,
     RandomVariate[PoissonDistribution[\[Mu]]]]], n];
  Mean /@ {fails, successes, Join[fails, successes]} // N)

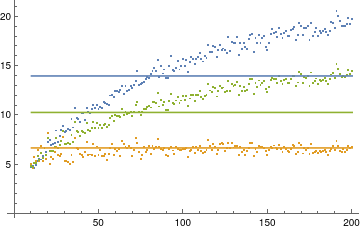

This assumes no batch limit, where the initial batch is poisson-distributed with mean $\mu$, and the batch is bisected to find the errors (independent with probability $p$). For the given data I get something like:

Manipulate[
 Show[ListPlot@
   Transpose@
    Table[{\[Mu], #} & /@ sim[1 - 1/p, \[Mu], 30], {\[Mu], 10, 200}],
  Plot[{14, 6.7, 10.3}, {\[Mu], 10, 200}]], {{p, 27}, 1, 50}]


[Mario Carneiro]

which is to say the predicted initial batch is $\mu=80$ (with success probability $1-1/27$) which sounds a bit unrealistically high; I must be missing an aspect of the process

[Anne Baanen]

Based on running my script: if each PR has an i.i.d. chance p of failing (and therefore causing any batch it's in to fail), then the batch sizes for optimal throughput, followed by everything within one std. dev. are approximately as follows:

0.00 - >32 - 32
0.01 - >32 - 19-32
0.02 - >32 - 11-32
0.05 - 14 - 5-32
0.10 - 4 - 3-9
0.20 - 2 - 2-2
0.50 - 1 - 1-1

[Anne Baanen]

So if we assume more than one in 20 PRs fails, then our batch size is too big.

[Mario Carneiro]

AFAICT your code is using the same simulation as mine except that you are assuming fixed batch size and I'm using poisson-distributed batch sizes

[Mario Carneiro]

you are also not tracking number of failed batches

[Mario Carneiro]

my original goal was to try to fit the simulation to find the parameters

[Mario Carneiro]

and then you can use that to test batch sizes

[Anne Baanen]

Mario Carneiro said:

AFAICT your code is using the same simulation as mine except that you are assuming fixed batch size and I'm using poisson-distributed batch sizes

Yes, I think our model agrees. My question is maximum throughput during congested periods (how many merges is the upper limit we can survive), and I suppose yours is more similar to uncongested periods.

[Anne Baanen]

Is Poisson a reasonable assumption? I think our behaviour is somewhat more towards the tails and away from the middle, with periods of inactivity and of high activity.

[Mario Carneiro]

the landing time of PRs is not particularly correlated, except that there are times of day and of the week for high activity

[Mario Carneiro]

Ooh, I incorporated another aspect and got some interesting behavior:

sim[p_, \[Mu]_, n_] := (
  fails = {};
  successes = {};
  time = 1;
  bisect[vals_] := With[{ok = And @@ vals},
    time += 1;
    If[ok, AppendTo[successes, Length[vals]],
     AppendTo[fails, Length[vals]];
     If[! ok && Length[vals] > 1,
      With[{b = Floor[Length[vals]/2]}, bisect[vals[[;; b]]];
       bisect[vals[[b + 1 ;;]]]]]]];
  Do[batch =
    Table[RandomReal[] <= p,
     RandomVariate[PoissonDistribution[\[Mu] time]]];
   time = 0;
   bisect[batch], n];
  Mean /@ {fails, successes, Join[fails, successes]} // N)

Here the mean for the distribution is $\mu t$ where $t$ is the number of batches, on the reasoning that batches take time and the longer it takes to bisect the more PRs queue up in the next run. What I didn't expect is that if $\mu$ is larger than a constant then the simulation diverges with exponentially growing batch sizes, because at a certain point the batch size $n$ is much larger than the failure rate $q$ so we have to bisect $qn$ times to find all the failures in the batch, so if $\mu q>1$ then the batches will grow as $(\mu q)^kn$

[Mario Carneiro]

I suppose at some level this is expected, this is what happens if the people outrun bors

[Mario Carneiro]

IIRC we had a situation like this with the benchmark bot, where the queue was plodding along a few months behind real time

[Mario Carneiro]

Given fixed probability p, we can actually work out a recursive formula for the cost of bisection:

cost[n_] := cost[n] = 1 + (1 - p^n) failcost[n]
failcost[n_] :=
 If[n <= 1, 0, With[{m = Floor[n/2]}, cost[m] + cost[n - m]]]
maxcost[n_, m_] :=
 If[n > 2 m, cost[m] + maxcost[n - m, m],
  If[n > m, cost[Floor[n/2]] + cost[n - Floor[n/2]], cost[n]]]

That is, $\mathrm{cost}_n(p)=1+(1-p^n)\mathrm{failcost}_n(p)$ and $\mathrm{failcost}_n(p)=\mathrm{cost}_m(p)+\mathrm{cost}_{n-m}(p)$ where $m=\lfloor n/2\rfloor$. $\mathrm{cost}_n(p)$ is a polynomial in $p$ for each $n$, which is $2n-1$ near $p=0$ and $1+2n(1-p)$ near $p=1$.

[Mario Carneiro]

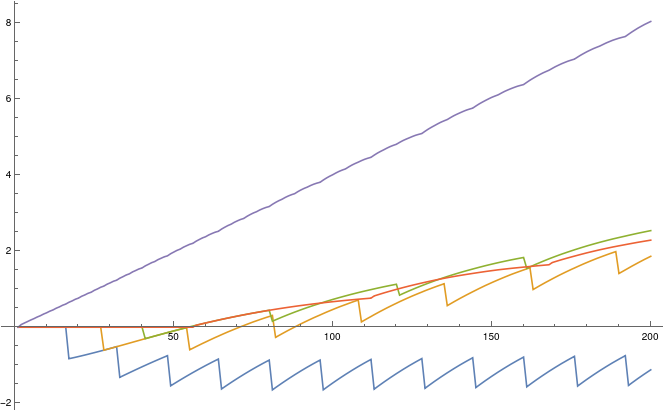

Here's a plot of the relative benefit of a batch limit $m$ compared to no limit, when $n$ items are in the queue, assuming $p=1-1/27$ and for $m=16, 27, 40, 54$:

ListPlot[
 Transpose[
  Table[cost[n] - maxcost[n, m] /. p -> 1 - 1/27., {n, 1,
    200}, {m, {16, 27, 40, 56}}]], Joined -> True]


The bottom value is $m=16$, which is clearly too low. Playing around with this shows that the benefit becomes strictly positive when $m$ is more than twice the failure rate (the red line). Also shown are the intermediate values $m=27$ (yellow, the same as the failure rate), which gets off to a weak start, and $m=40$ (in green), which seems to have the best long term behavior (for large $n$, i.e. when there is a large backlog).

[Yaël Dillies]

From experience, a failure probability of 1/27 sounds too low. Can we gather more bors data?

[Ruben Van de Velde]

:up: mathematicians using CI

[Mario Carneiro]

This is the failure probability for individual PRs, not batches. The failure rate for batches is about 55% in these simulations (although it depends on the batching strategy of course)

[Damiano Testa]

... and then we should formalise the results.

[Yaël Dillies]

Mario Carneiro said:

This is the failure probability for individual PRs, not batches.

I meant that 1/27 sounds too low for the failure of an individual PR.

[Mario Carneiro]

I don't think bors actually runs batches of size 1 which it thinks will fail by process of elimination, which might skew the data a little

[Yaël Dillies]

It does seem to run the second batch of size m/2 even when the first batch of size m/2 has already hit master though.

[Mario Carneiro]

yes, that's a necessary part of the bisection

[Yaël Dillies]

Why? We know the second batch will fail, so why not split further into two batches of size m/4 ?

[Mario Carneiro]

oh I see. That would require more state I guess, it would need to share information between siblings in the bisection tree

[Mario Carneiro]

after the initial bisection you would mark the second batch as "mark failing if the first batch succeeds"

[Yaël Dillies]

Yes, exactly

[Mario Carneiro]

my cost function doesn't take that into account either

[Yaël Dillies]

I suspect those "doomed to fail" batches account for quite a lot of CI time overall.

[Josha Dekker]

Just a quick thought: are failure probabilities for a PR roughly constant or do we have some property (e.g. total diff etc) that is predictive for failure probabilities? This way, you could make the bisection split "balanced" in the sense that each split has about equal estimated probability of failing rather than equal number of PRs.

[Yaël Dillies]

Currently, if you have $2^n$ PRs, all but one of which are good (and mutually compatible) and one is bad, you will run one batch with $2^n$ PRs, two batches with $2^{n - 1}$ PRs, ..., two batches with $1$ PR, namely $2n + 1$ batches. If you do my optimisation, you will run one batch with $2^n$ PRs, ..., one batch with $2$ PRs, two batches with $1$ PR, namely $n + 1$ batches. That's a 50% improvement!

[Anne Baanen]

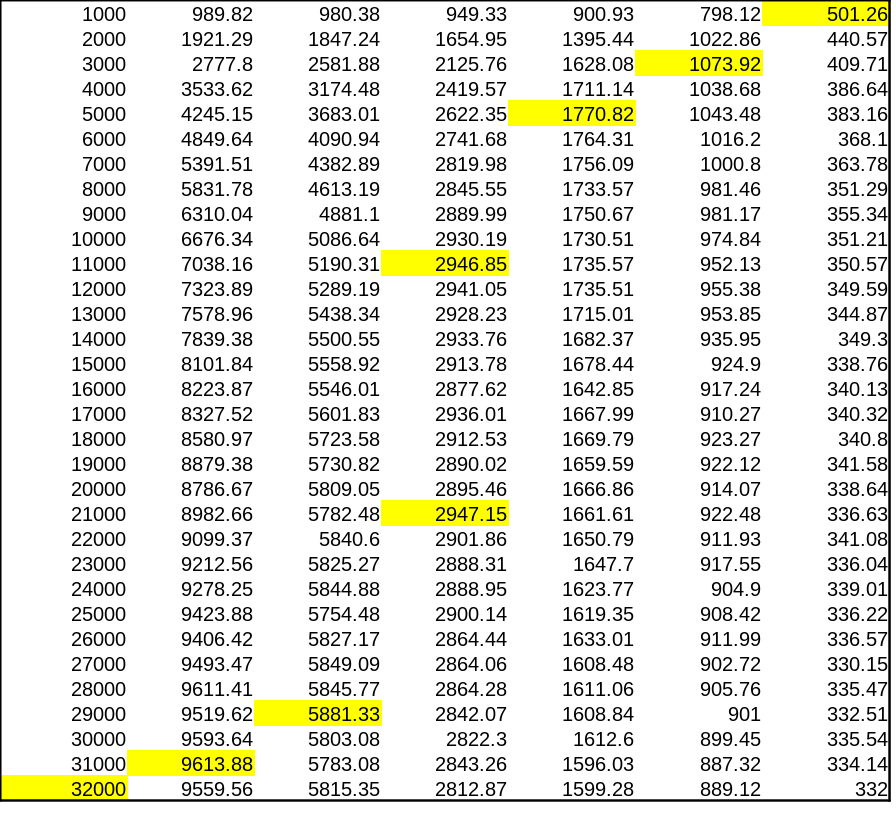

Here are raw throughput numbers where we ignore "doomed to failure" batches: afbeelding.png

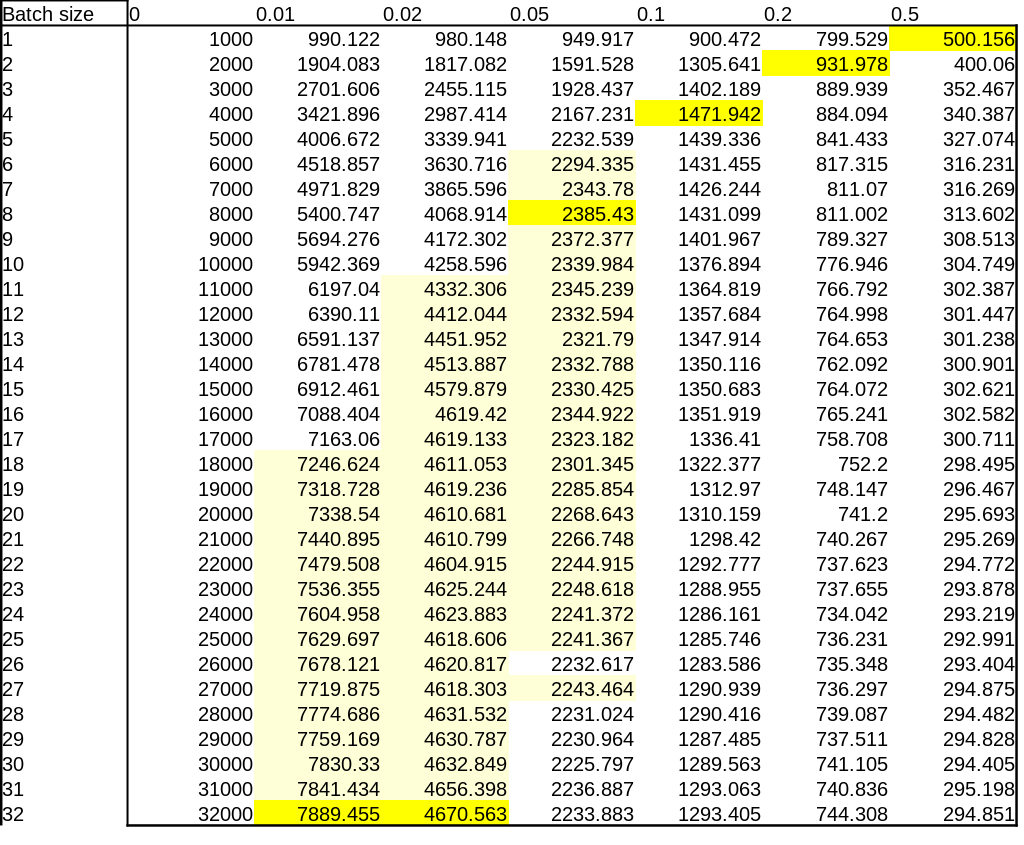

Here where we drop single PRs that are "doomed to failure":

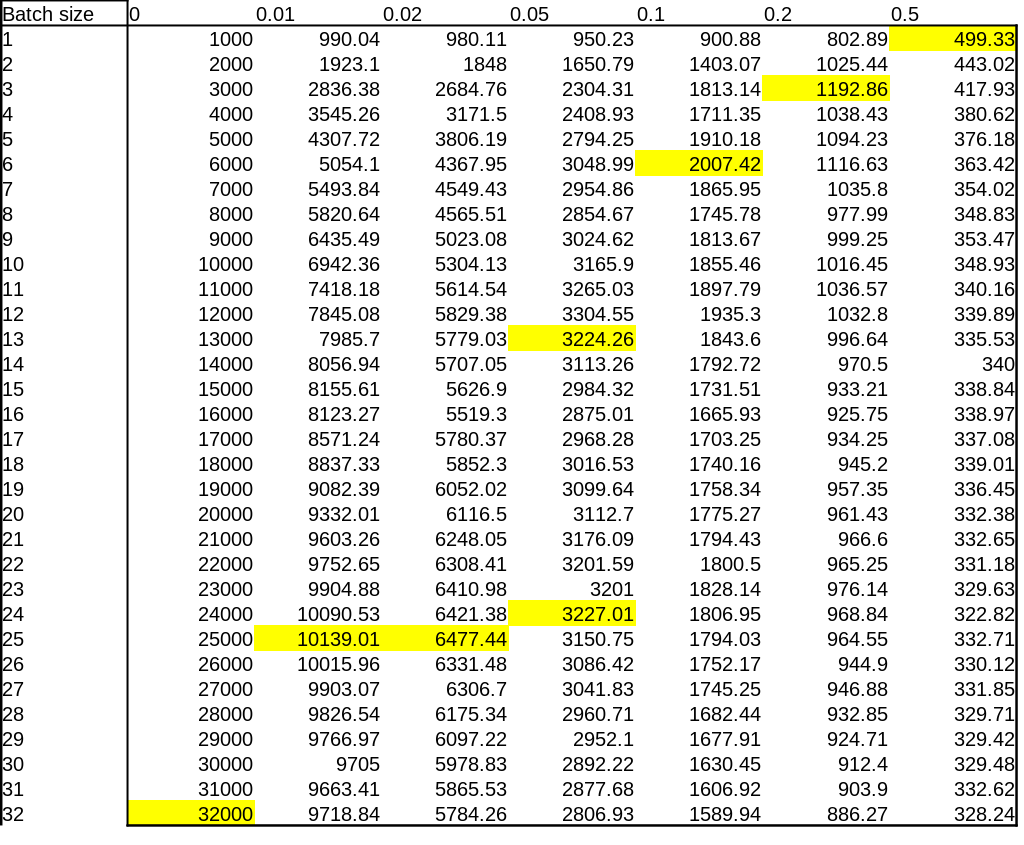

And here where we bisect batches that are "doomed to fail" (singletons are dropped, like above):

[Anne Baanen]

(Not entirely sure why the third table has lower throughput than the second one. It might be that I implemented the logic incorrectly...)

[Yaël Dillies]

Josha Dekker said:

Just a quick thought: are failure probabilities for a PR roughly constant or do we have some property (e.g. total diff etc) that is predictive for failure probabilities? This way, you could make the bisection split "balanced" in the sense that each split has about equal estimated probability of failing rather than equal number of PRs.

Here are my thoughts from the reviewer stream a few days ago:
Yaël Dillies said:

This is probably day-dreaming, but is it possible in any way to use the logs of a failed bors batch (or mergify batch, when that becomes a thing) in order to influence how it's going to be rebatched? Put another way: A human can reasonably quickly read a log file and tell Johan what he should take off the queue; Is it possible to replace both the human and Johan by a script?
It's pretty easy to list which files a PR touches and also pretty easy to calculate the import graph on master, so a somewhat naive criterion for rebatching is something like "Put all the PRs that don't touch anything upstream of the failing file in a batch. Split the other ones into two equal size batches.". A more refined version could be looking at the distance along the import graph (either in terms of file, or using a more complicated metric like the number of declarations used) and make sure the "didn't touch the file" batch does not contain more than 1/3 of the batch's PRs.
Because it's the trend, one could even think of training an AI to recognise what PR is causing the build error and single it out...

[Yaël Dillies]

Yaël Dillies said:

Why? We know the second batch will fail, so why not split further into two batches of size m/4 ?

This is not always true. It can happen that a bad PR becomes good because a PR improved performance on master or whatever. But this is rare enough that I think it's fair to reject the bad-turned-good PR until the author merges master and checks everything is alright indeed.

[Anne Baanen]

Anne Baanen said:

(Not entirely sure why the third table has lower throughput than the second one. It might be that I implemented the logic incorrectly...)

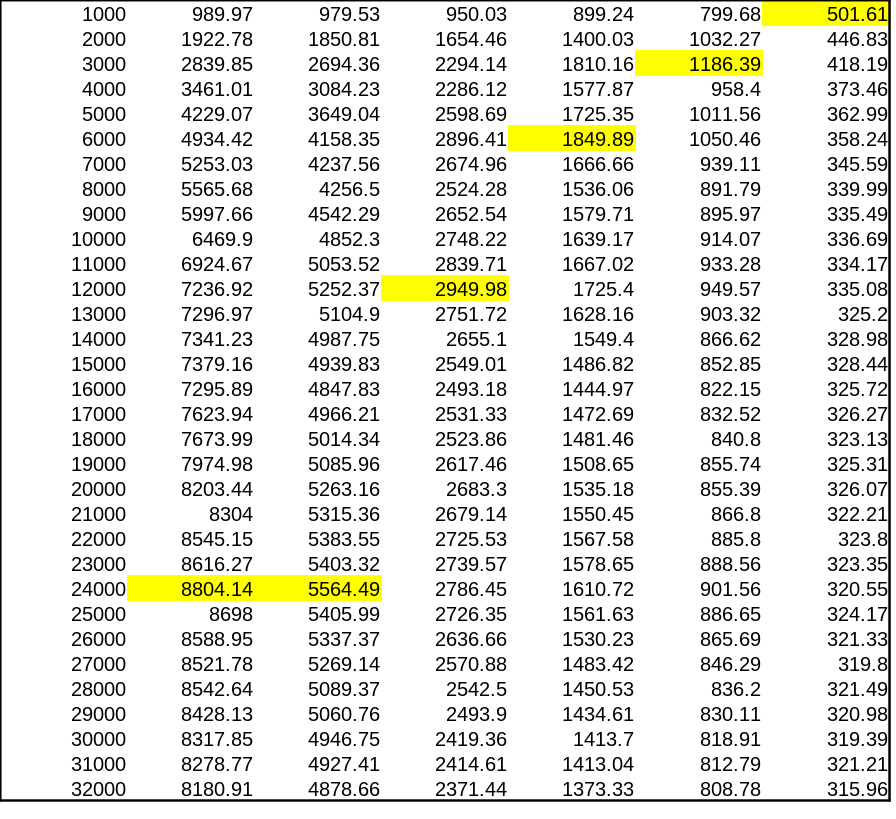

I added logic to drop predicted-to-fail batches of size 1 outright. Now the raw numbers look like:

[Yaël Dillies]

Those numbers are very encouraging!

[Anne Baanen]

One conclusion we might draw is if Bors is smart and drops batches that are predicted to fail, we _don't_ want a batch size of a power of two. Multiples of 3 like 12 or 24 seem to be slightly better!

[Anne Baanen]

Should we rename and/or merge the two active bors threads by the way? Maybe this can become "Optimizing bors batch size" and the other "Bors failure investigation".

[Yaël Dillies]

Actually, could you move my "Fine-tuning bors batching" thread out of #mathlib reviewers and then move the relevant messages from here to it?

[Mario Carneiro]

The formula only changes a little bit accounting for the "doomed to fail" optimization:

cost2[n_] := cost2[n] = 1 + (1 - p^n) failcost2[n]
failcost2[n_] :=
 If[n <= 1, 0, With[{m = Floor[n/2]}, cost2[m] + cost2[n - m] - p^m]]

Which has an effect of increasing throughput by about 1/25, here it is compared to the batching optimizations:

[Mario Carneiro]

and of course the batching optimizations still apply on top of this

[Yaël Dillies]

Anne Baanen said:

Multiples of 3 like 12 or 24 seem to be slightly better!

Does that mean we should try trisecting? Try a batch of size m. It fails. Try a batch of size m/3. It works. Try a batch of size m/3. It works. Trisect the last m/3 batch.

[Anne Baanen]

Yaël Dillies said:

Actually, could you move my "Fine-tuning bors batching" thread out of #mathlib reviewers and then move the relevant messages from here to it?

How about the "Bors batch size" thread in the reviewers stream?

[Yaël Dillies]

You could merge it too, I guess. It might become a little confusing.

[Notification Bot]

This topic was moved here from #mathlib reviewers > Fine-tuning bors batching by Anne Baanen.

[Notification Bot]

This topic was moved here from #mathlib reviewers > Bors batch size by Anne Baanen.

[Notification Bot]

52 messages were moved here from #mathlib4 > bors failing by Anne Baanen.

[Mario Carneiro]

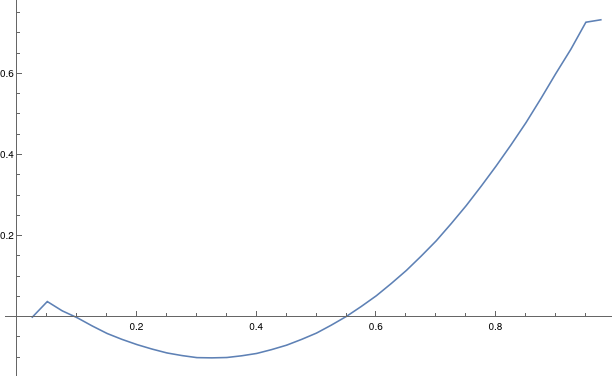

More plots. The question of where to bisect is the same as asking what is the minimum of the following function:

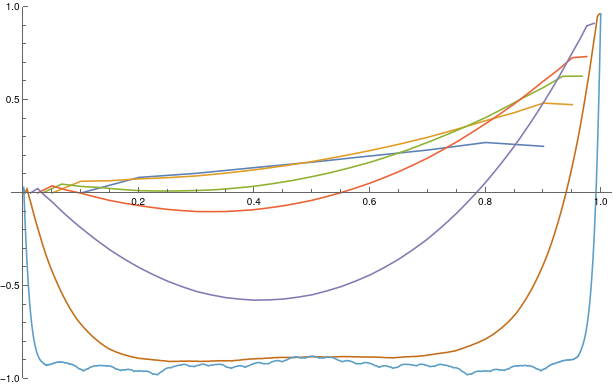

Here it is for more values of $n$:

ListPlot[
 Table[{m/n,
   Evaluate[(cost[m] + cost[n - m] - p^m) - (cost[1] + cost[n - 1] -
        p^1) /. p -> 1 - 1/27.]}, {n, {10, 20, 30, 40, 80, 300,
    2000}}, {m, 1, n - 1}], Joined -> True, PlotRange -> {-1, 1}]


There are two interesting features of this function compared to the usual. Normally this would be a symmetric function which bows in the middle, hence the minimum is in the middle so that's where you split. However here there is an overall tilt of the function down to the left because of the additional $p^m$ factor, meaning that we should prefer to split more leftish. Moreover, the case $m=1$ gets a little boost because it saves on the cost of a bisection. As a result, for a significant range of values the minimum value is $m=1$, all the way up to $m=30$, and then it hangs somewhere around $n/3$ for a while, and then for very large $n$ the bottom starts to turn into a fractal so I'm not so sure.

[Mario Carneiro]

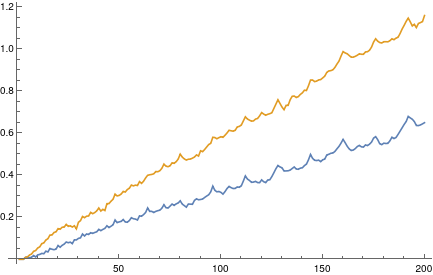

And here's a plot of the relative advantages to throughput of applying the splitting strategy $n/3$ or $\mathrm{if}(n<30,1,n/3)$ recursively, over the usual $n/2$:

[Mario Carneiro]

Yaël Dillies said:

Currently, if you have $2^n$ PRs, all but one of which are good (and mutually compatible) and one is bad, you will run one batch with $2^n$ PRs, two batches with $2^{n - 1}$ PRs, ..., two batches with $1$ PR, namely $2n + 1$ batches. If you do my optimisation, you will run one batch with $2^n$ PRs, ..., one batch with $2$ PRs, two batches with $1$ PR, namely $n + 1$ batches. That's a 50% improvement!

This analysis isn't quite correct. It's true if the failing PR is the last one in the list, but if it is the first one then you get no improvement. In general it's somewhere in between

[Mario Carneiro]

because the optimization only applies when the first half is good and the second half is bad

[Mario Carneiro]

Just pulled some bors data regarding 1-commit batches: there are 316 successes and 45 failures in the database right now, i.e. one in 7

[Sébastien Gouëzel]

Isn't this biased by the fact that correct commits are more likely to be merged in bigger batches, while buggy commits will end up alone and will therefore be part of a 1-commit batch?

[Eric Rodriguez]

Can we not run the simulations with historical data? Maybe just try grab the past week and see what would happen

[Jireh Loreaux]

I'm wondering if we should take more advantage of priority, especially in common cases where we expect things to break when part of a batch. I'm betting that a small amount of thoughtful human interaction can drastically decrease the failure rate.

I'm thinking of, for instance, PRs renaming very common lemmas (even with deprecation, bors will fail because Mathlib doesn't allow using deprecated lemmas), PRs deleting ‌/ renaming a file, etc.

[Jireh Loreaux]

I think one source of failures from yesterday was due to a file rename.

[Ruben Van de Velde]

One of the issues I think I saw multiple times was PRs not being updated since the FunLike refactor. I wonder if we could have a warning or something for PRs that are very outdated

[Johan Commelin]

@Mario Carneiro at some point automatically commented on all open PRs pinging them to update...

[Jireh Loreaux]

I think that's because he updated all the toolchains for them in order to avoid data loss from v4.x.x-rc3, whichever one it was.

[Jireh Loreaux]

Oh but I guess your point is more that such a pinging of all PRs is possible.

[Ruben Van de Velde]

Yeah, that could have helped with this case, though my point was more that old branches are more prone to failing in general

[Yaël Dillies]

Do we have data about probability of a PR failing plotted according to its age (as measured by the latest master merge)?

[Eric Rodriguez]

I really think we just need to find some number that seems sensible and stick with it. Fiddling with very specific numbers is not going to fix all issues. One thing that mergify does which could be helpful is that it can do batches speculatively, i.e. in parallel. I think that's much more likely to give us a boost than trying to dig deeper and deeper into this

[Mario Carneiro]

Jireh Loreaux said:

I'm wondering if we should take more advantage of priority, especially in common cases where we expect things to break when part of a batch.

There is the bors single on command, which says "don't put this PR in a batch, compile it on its own". I recommend using this for PRs that have lots of merge conflicts

[Jireh Loreaux]

Can a bot find the most recent common ancestor of a PR branch and master, and then use the age of that commit to add a label?
